81180 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 004900001 - 004999999) (1994) PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

Lawn Tractor

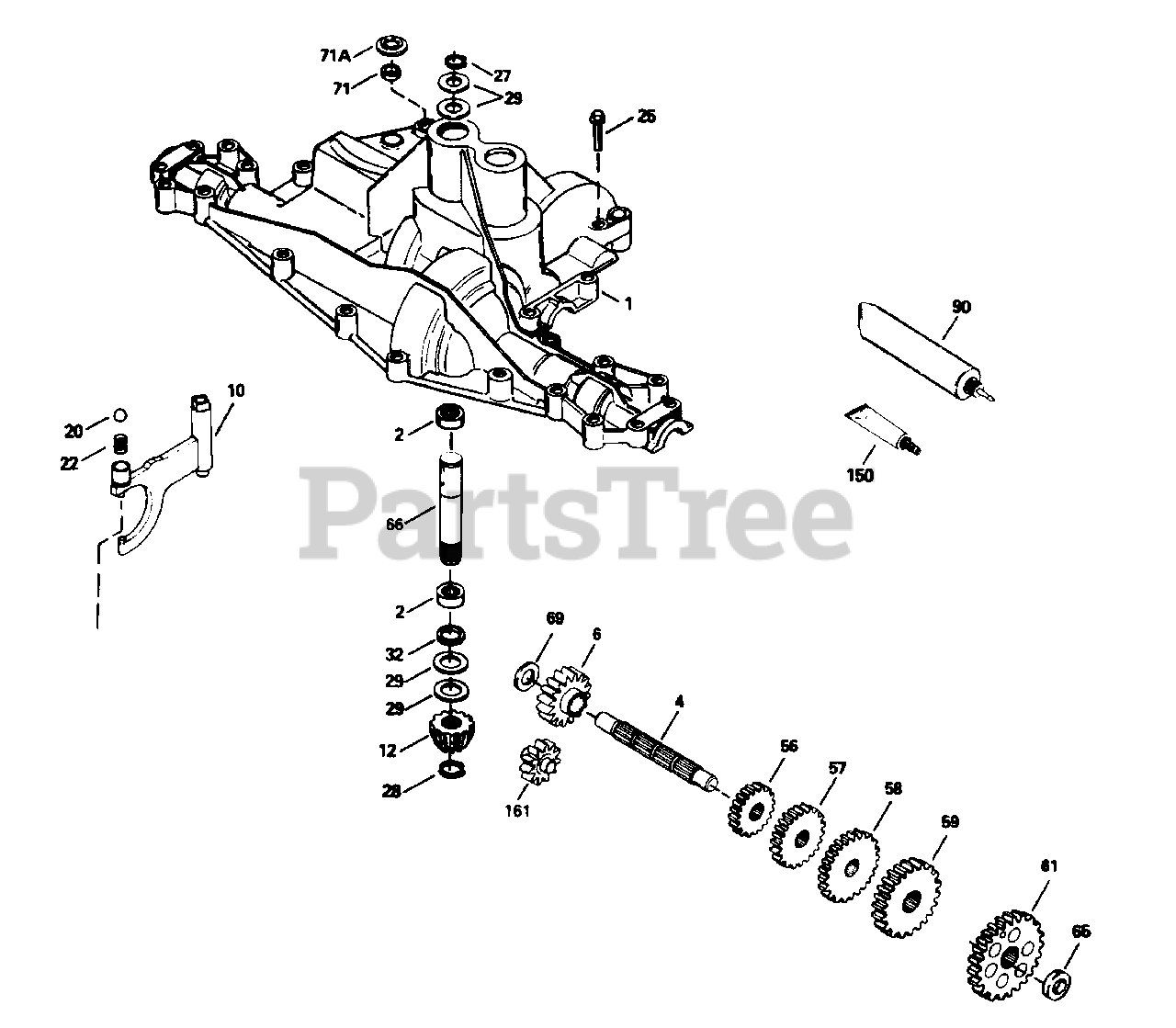

PEERLESS TRANSAXLE MODEL NO. 915-020 Parts Diagram

  • Title
1

Lawn-Boy 772128

Transaxle Cover

$

$

Currently unavailable

4

Lawn-Boy 776300

Countershaft

$

$

Currently unavailable

6

Lawn-Boy 778281

Spur Gear (16 Teeth)

$

$

Currently unavailable

10

Lawn-Boy 784370

Shift Rod & Fork

$

$

Currently unavailable

12

Lawn-Boy 778262

Bevel Pinion (14 Teeth)

$

$

Currently unavailable

20

Lawn-Boy 792139

Ball (3/8" dia.)

$

$

Currently unavailable

22

$

$

Currently unavailable

25

$

$

Currently unavailable

27

Lawn-Boy 792035

Retaining Ring

$

$

Currently unavailable

28

Lawn-Boy 788040

Retaining Ring

$

$

Currently unavailable

29

$

$

Currently unavailable

32

$

$

Currently unavailable

56

Lawn-Boy 778151

Spur Gear (15 Teeth)

$

$

Currently unavailable

57

Lawn-Boy 778249

Spur Gear (23 Teeth)

$

$

Currently unavailable

58

Lawn-Boy 778314

Spur Gear (21 Teeth)

$

$

Currently unavailable

59

Lawn-Boy 778129A

Spur Gear (30 Teeth)

$

$

Currently unavailable

61

Lawn-Boy 778265

Spur Gear (34 Teeth)

$

$

Currently unavailable

65

$

$

Currently unavailable

66

Lawn-Boy 776299

Input Shaft (3.522" lg.)

$

$

Currently unavailable

69

Lawn-Boy 780161

Thrust Washer

$

$

Currently unavailable

71

Lawn-Boy 788069

Square Cut Ring

$

$

Currently unavailable

71A

Lawn-Boy 792145

Pushnut

$

$

Currently unavailable

90

788067B

Grease (32 oz. btl. Bentonite grease)

$

$

Not available

150

Lawn-Boy 510334

Gasket Eliminator (Loctite #515)

$

$

Currently unavailable

161

Lawn-Boy 776302

Reverse Idler Assembly

$

$

Currently unavailable
