81182 (LT 12 G) - Lawn-Boy Lawn Tractor (SN: 004900001 - 004999999) (1994) ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

Lawn Tractor

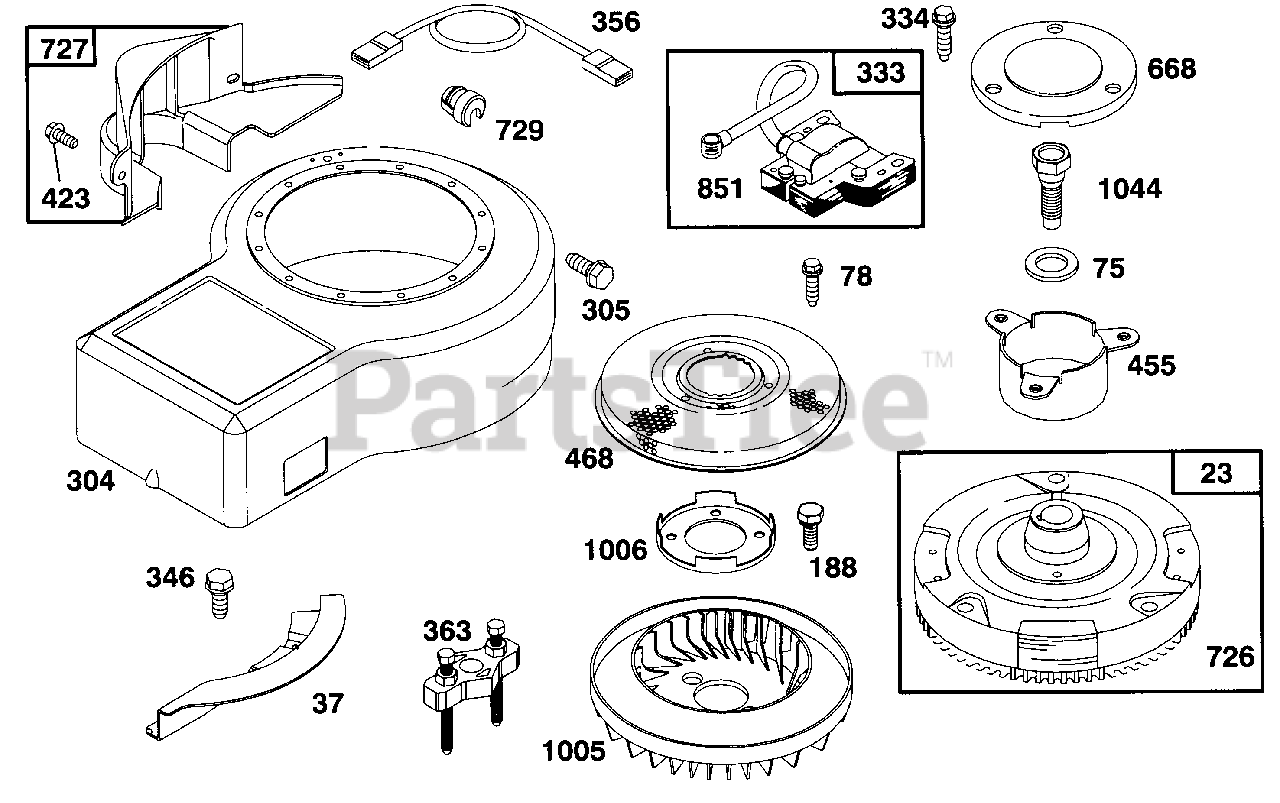

ENGINE BRIGGS & STRATTON MODEL 286707-0453-01 Parts Diagram

  • Title
23

Lawn-Boy 492326

Flywheel and Ring Gear Assy.-Magneto

$

$

Currently unavailable

37

Lawn-Boy 224502

Guard-Flywheel

$

$

Currently unavailable

75

Lawn-Boy 224061

Washer-Spring

$

$

Currently unavailable

78

Lawn-Boy 93805

Screw-Sem

$

$

Currently unavailable

188

Lawn-Boy 93535

Screw-Sem (3/4" Long)

$

$

Currently unavailable

304

Lawn-Boy 496319

Housing-Blower

$

$

Currently unavailable

305

Lawn-Boy 94619

Screw-Blower Housing Mounting

$

$

Currently unavailable

333

Lawn-Boy 492341

Armature-Magneto

$

$

Currently unavailable

334

Lawn-Boy 93381

Screw-Armature Mtg.

$

$

Currently unavailable

346

Lawn-Boy 93705

Screw-Hex. Head

$

$

Currently unavailable

356

Lawn-Boy 494328

Wire Assembly

$

$

Currently unavailable

363

Lawn-Boy 19203

Puller-Flywheel

$

$

Currently unavailable

423

Lawn-Boy 94073

Screw-Sem

$

$

Currently unavailable

455

Lawn-Boy 222561

Cup-Screen Mounting

$

$

Currently unavailable

468

Lawn-Boy 222562

Screen-Flush Rotating

$

$

Currently unavailable

668

$

$

Currently unavailable

726

Lawn-Boy 392134

Gear-Ring (Includes Mtg Hardware)

$

$

Currently unavailable

727

Lawn-Boy 490324

Cover-Starter

$

$

Currently unavailable

729

Lawn-Boy 281159

Clip-Lead Wire

$

$

Currently unavailable

851

Lawn-Boy 221798

Terminal-Ignition Cable

$

$

Currently unavailable

977

Lawn-Boy 494385

Carburetor Gasket Kit

$

$

Currently unavailable

1005

Lawn-Boy 280687

Fan-Flywheel

$

$

Currently unavailable

1006

Lawn-Boy 224413

Retainer-Fan

$

$

Currently unavailable

1044

Lawn-Boy 94673

Screw-Hex. Head

$

$

Currently unavailable
