81270 (Z 3400 HLX) - Lawn-Boy Precision Zero-Turn Mower (SN: 280000001 - 280000300) (2008) CARBURETOR ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

Precision Zero-Turn Mower

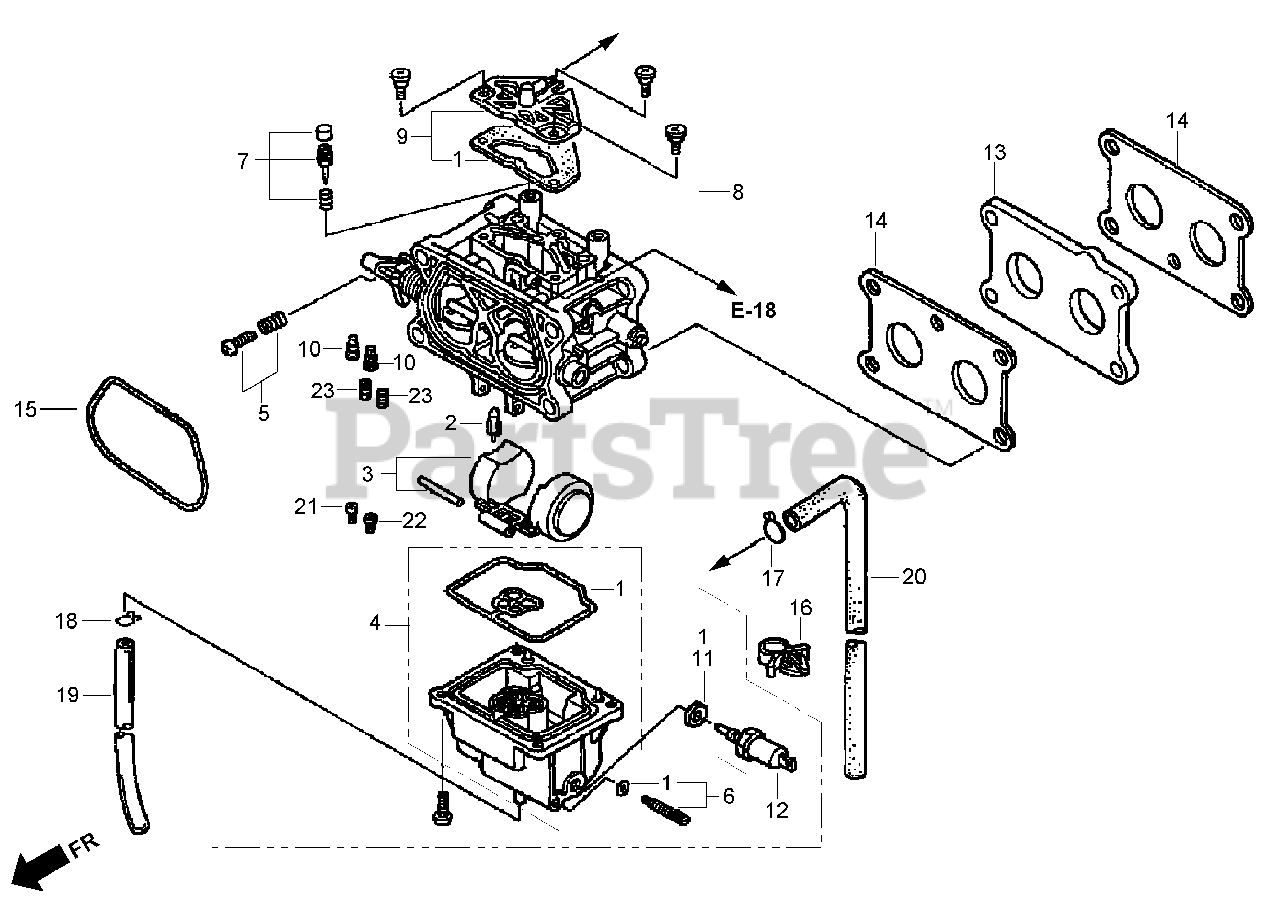

CARBURETOR ASSEMBLY HONDA GXV530 EXA2-MOD Parts Diagram

  • Title
1

Lawn-Boy 16010-Z0A-802

GASKET SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 16011-Z0A-004

VALVE-FLOAT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 16013-Z0A-004

FLOAT SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

4

Lawn-Boy 16015-Z0A-802

FLOAT CHAMBER SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 16016-Z0A-004

SCREW-SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 16024-Z0A-004

SCREW-SET, DRAIN

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 16028-Z0A-004

SCREW SET, PILOT

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 16100-Z0P-V02

CARBURETOR ASM (BW02C A)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

9

Lawn-Boy 16139-Z0A-004

AIR VENT COVER SET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 16168-Z0A-004

CAP

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 16178-Z0A-802

GASKET

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 16200-Z0A-802

SOLENOID VALVE ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 16211-Z0A-000

INSULATOR-CARBURETOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

14

Lawn-Boy 16212-Z0A-000

GASKET-INSULATOR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

15

Lawn-Boy 17228-Z0A-003

GASKET-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

16

Lawn-Boy 90659-680-013

CLIP-HARNESS, WIRE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

17

Lawn-Boy 95002-02080

CLIP-TUBE (B8)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

18

Lawn-Boy 95002-02650

CLIP-TUBE (B6.5)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

19

Lawn-Boy 95003-07008-60M

HOSE-BULK, VINYL (4X7X8000) (4X7X300)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

20

Lawn-Boy 95005-45001-20M

HOSE-BULK, VACUUM (45X1000) (45X400)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

21

Lawn-Boy 99131-Z0A-0820

JET-MAIN (No. 82.5)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

21

Lawn-Boy 99131-Z0A-0850

JET-MAIN (No. 85)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

21

Lawn-Boy 99131-Z0A-0870

JET-MAIN (No. 87.5)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

22

Lawn-Boy 99131-Z0A-0850

JET-MAIN (No. 85)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

22

Lawn-Boy 99131-Z0A-0870

JET-MAIN (No. 87.5)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

22

Lawn-Boy 99131-Z0A-0900

JET-MAIN (No. 90)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

23

Lawn-Boy 99134-Z0A-0370

JET-PILOT (No. 37.5)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
