815016 - Gravely Mini ZT Non-Powered Bagger (SN: 000101 & Above) Front Bumper Assembly Parts Diagram

Mini ZT Non-Powered Bagger

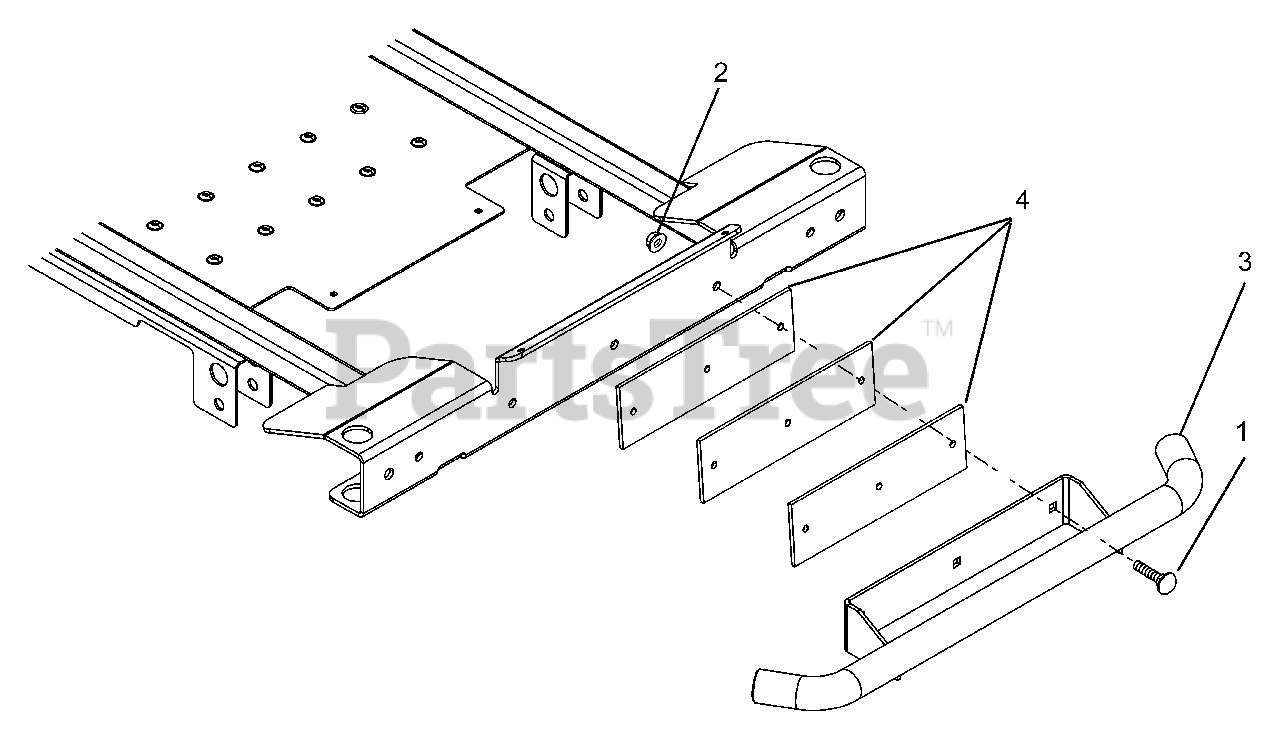

Front Bumper Assembly Parts Diagram

  • Title

1

Gravely 06224300

Bolt-Round Head Square Neck .38-16 x 2" Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, Qty 7

0

2

Gravely 06545500

Nut, Flange Nyloc .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00427851

Front Bumper

$

$

Not available

4

Gravely 00391651

Counterweight Plate

$25.99

$

Usually ships in 4-12 days

0
