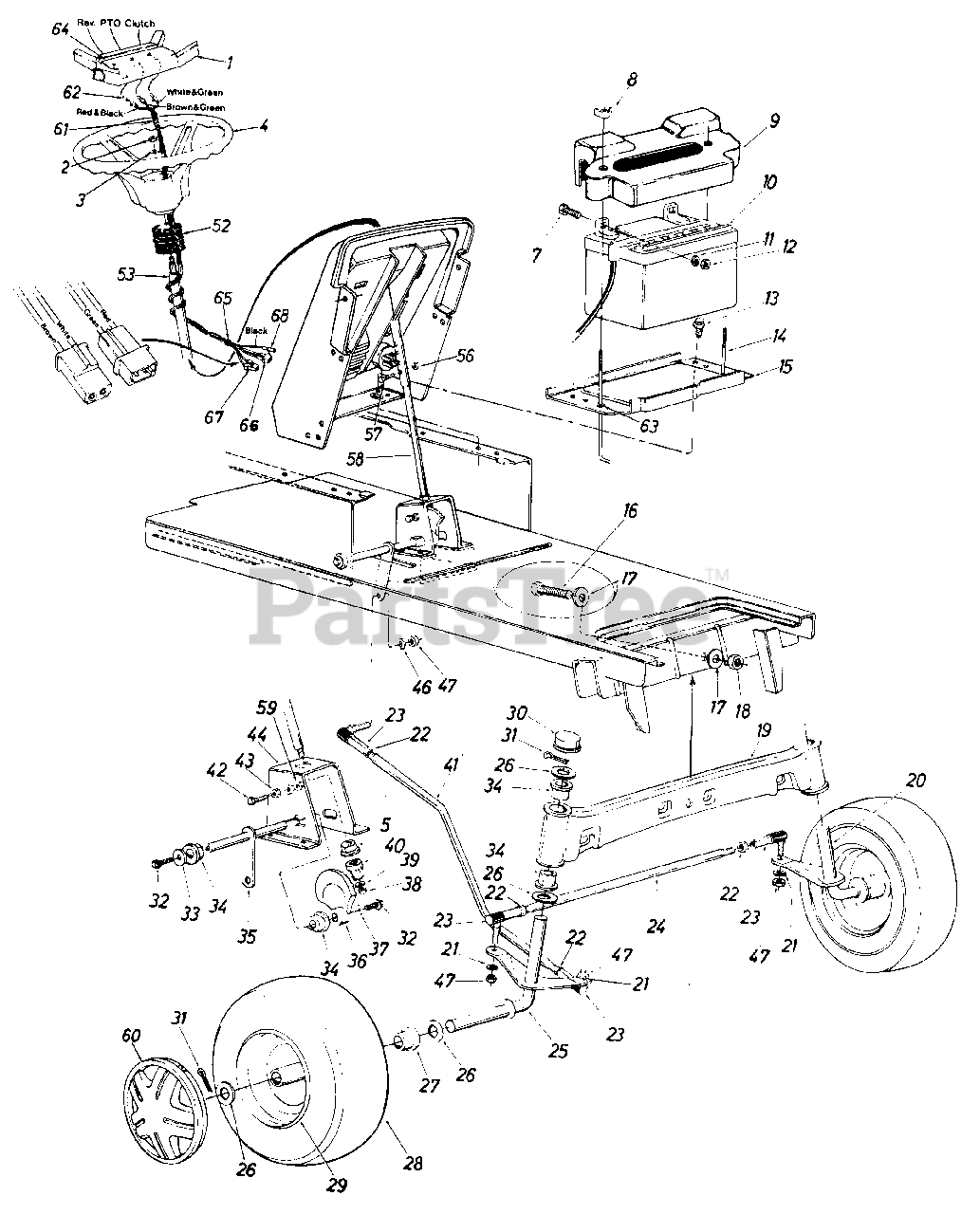

82-5133 (148-814-019) - MTD Garden Tractor (1988) (Agway) Parts19 Parts Diagram

Garden Tractor

Parts19 Parts Diagram

  • Title
1

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

$

$

Not available

2

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

3

MTD 736-0242

Bell-Wash. 5/16" I.D. x .87" O.D. x .060"

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-0806

Steering Wheel
(Superseded to 931-0806A)

$

$

Not available

5

MTD 741-0225

Plastic Hex Bearing 518" I.D.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

7

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0113

Wing Nut Plastic 1/4-20 Thd.
(Superseded to 912-0113)

$6.99

$

In Stock, only 2 left!

0

9

MTD 731-0707

Battery Cover

$

$

Not available

10

MTD 725-0451

32-V Battery

$

$

Currently unavailable

11

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

12

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

13

MTD 710-0599

Hex Thd Rolling Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 711-0222

Battery Hold Down Rod
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

15

MTD 13379

Battery Plate

$

$

Not available

16

MTD 710-0533

Hex Bolt 5/8-18 x 2.5" Lg.

$

$

Not available

17

MTD 736-0282

Flat Wash. .66" I.D. x 2.25" O.D. x .17

$

$

Not available

18

MTD 712-0923

Hex Cent. L-Nut 5/8-18 Thd.

$6.99

$

Usually ships in 3-6 days

0

19

MTD 13865

Front Pivot Bar Ass'y.

$

$

Currently unavailable

20

MTD 13839

Front Axle Ass'y.-L.H.

$

$

Currently unavailable

21

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

22

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

23

MTD 723-0156

Ball Joint Ass'y.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

24

MTD 747-0301

Tie Rod

$

$

Not available

25

MTD 13838

Front Axle Ass'y.-R.H.

$

$

Currently unavailable

26

MTD 736-0316

Fl-Wash. .780" I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 20+

0

27

MTD 741-0382

Flange Bearing

$

$

Not available

28

MTD 734-1500

Front Wheel Ass'y. Comp.

$

$

Not available

29

MTD 734-1501

Front Wheel Rim Only
(Superseded to 934-0067-0662)

$

$

Not available

30

MTD 731-0484

Dust Cover
(Superseded to 931-0484A)

$6.49

$

In Stock, Qty 5

0

31

MTD 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.*
(Superseded to 914-0121)

$

$

Not available

32

MTD 710-0180

Hex Bolt 3/8-24 x .75" Lg.(Grade 5)

$6.99

$

In Stock, only 3 left!

0

33

MTD 736-0133

Fl-Wash. 3/8" I.D. x 1.25" O.D. x .090"

$5.49

$

In Stock, Qty 7

0

34

MTD 741-0199

Flange Double "D" Brg. .753" I.D.
(Superseded to 941-0490)

$13.99

$

In Stock, only 3 left!

0

35

MTD 12749

Steering Arm Shaft Ass'y.

$

$

Not available

36

MTD 748-0236

Side Gear-Steering

$101.99

$

In Stock, only 1 left!

0

37

MTD 736-0105

Bell-Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 712-0237

Hex Cent. L-Nut 5/16-24 Thd.

$4.99

$

In Stock, only 4 left!

0

39

MTD 736-0264

Fl-Wash. 5/16" I.D. x .62" O.D. x .059

$6.99

$

In Stock, only 1 left!

0

40

MTD 748-0237

Pinion Gear-Steering
(Superseded to 948-0237)

$21.99

$

In Stock, only 1 left!

0

41

MTD 747-0302

Drag Link

$84.99

$

In Stock, only 1 left!

0

42

MTD 710-0342

Hex Cap Scr. 3/8-16 x 1.25" Lg.
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 12

0

43

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

44

MTD 12850

Steering Gear Sup. Ass'y.

$

$

Not available

46

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

52

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

53

MTD 36512

Upper Steering Shaft

$348.99

$

Usually ships in 3-12 days

0

56

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 17

0

57

MTD 710-0958

Hex Bolt 1/4-20 x 1.25" Lg.
(Superseded to 710-0106)

Note: (Special)

$3.99

$

In Stock, only 2 left!

0

58

MTD 738-0588

Lower Steering Shaft

$

$

Not available

59

MTD 731-0988

Nylon Cap

$

$

Not available

60

MTD 734-1503

Hub Cap

$

$

Not available

MTD 734-0542

Hub Cap (Chrome)

$

$

Not available

61

MTD 725-1364

Wire Harness

Note: (Incl. Ref. 62)

$

$

Not available

62

MTD 725-1365

Bulb
(Superseded to 925-1365)

$10.99

$

In Stock, only 3 left!

0

63

MTD 726-0271

Pushnut Fastener
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

64

MTD 777-7993

Steering Wheel Insert Label

$

$

Currently unavailable

65

MTD 729-0204

Clamp

$

$

Currently unavailable

66

MTD 729-0166

Connector

$

$

Not available

67

MTD 729-0139

Connector

$

$

Not available

68

MTD 729-0132

Connector

$

$

Not available
