831026 - Ariens 60" Mower Deck (SN: 001501 - 003096) 60" Mower Hangers & Rollers Parts Diagram

60" Mower Deck

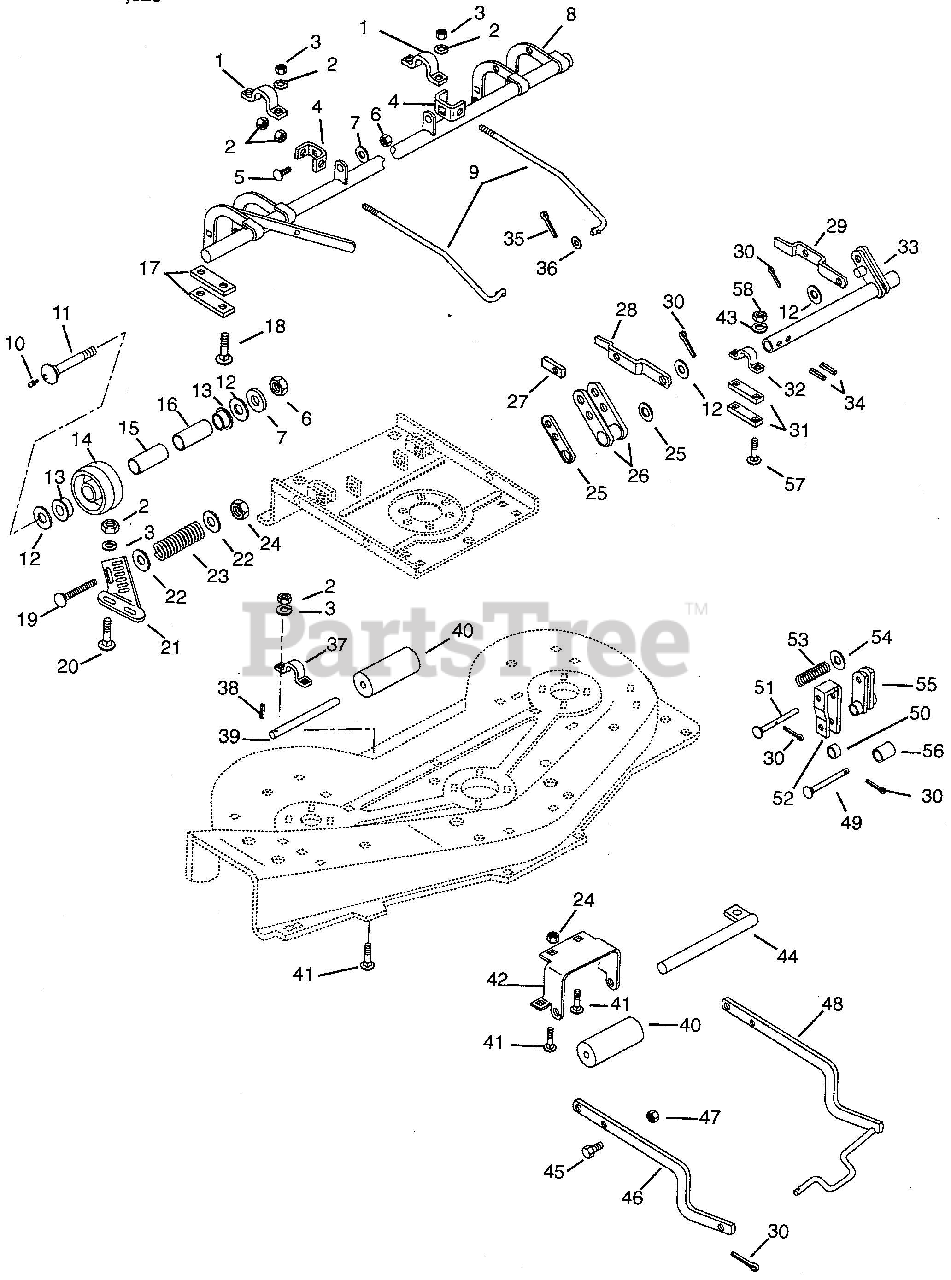

60" Mower Hangers & Rollers Parts Diagram

  • Title

1

Ariens 03034351

CLAMP

$

$

Not available

2

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

3

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03400451

YOKE

$11.99

$

Usually ships in 4-12 days

0

5

Ariens 06220900

BLT-RDHDSQNK .50-13X1.25 G2YW
(Superseded to 06200325)

$5.99

$

In Stock, only 1 left!

0

6

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

7

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

8

Ariens 03033751

ROLLER FRAME

$

$

Not available

9

Ariens 03035400

ADJUSTMENT ROD

$76.99

$

Usually ships in 4-12 days

0

10

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

11

Ariens 53115000

WHEEL BOLT W/ZERK

$32.99

$

Usually ships in 4-12 days

0

12

Ariens 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 05414300

BRG-BALL .500X1.125X.500

$39.99

$

Usually ships in 4-12 days

0

14

Ariens 07113300

WHL 5 IN O.D.

$

$

Not available

15

Ariens 03033900

WHEEL HUB

$

$

Not available

16

Ariens 03034000

SPACER .512X.747X3.396

$56.99

$

Usually ships in 4-12 days

0

17

Ariens 03034251

PAD

$

$

Not available

18

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

19

Ariens 06220200

@BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, only 2 left!

0

20

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

21

Ariens 03034459

QUADRANT

$5.99

$

Usually ships in 4-12 days

0

22

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

Usually ships in 4-12 days

0

23

Ariens 08313100

SG-COMP .063X.53X1.187
(Superseded to 08300028)

$4.99

$

In Stock, Qty 8

0

24

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 12

0

26

Ariens 03078700

FRONT HANGER LINK
(Superseded to 03078759)

$

$

Not available

27

Ariens 03035551

WEAR PLATE

$45.99

$

Usually ships in 4-12 days

0

28

Ariens 03035751

LEVELING LEVER R.H.

$

$

Not available

29

Ariens 03035651

LEVELING LEVER L.H.

$

$

Not available

30

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 12

0

31

Ariens 03033359

PLATE

$

$

Not available

32

Ariens 03033400

CLAMP

$26.99

$

Usually ships in 4-12 days

0

33

Ariens 03033200

FRONT HANGER
(Superseded to 03033259)

$

$

Not available

34

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06707300

@PIN-CTR .12X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 9

0

36

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 13

0

37

Ariens 03032700

ROLLER CLAMP

$

$

Not available

38

Ariens 05800600

PIN-ROLL .250X1.00

$1.99

$

Usually ships in 4-12 days

0

39

Ariens 03032600

SHAFT

$

$

Not available

40

Ariens 03114100

ROLLER

$22.99

$

Usually ships in 4-12 days

0

41

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

Usually ships in 4-12 days

0

42

Ariens 03464359

BRACKET, ROLLER

$77.99

$

Usually ships in 4-12 days

0

43

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

44

Ariens 03426200

ROLLER SHAFT

$49.99

$

Usually ships in 4-12 days

0

45

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 03035251

HANGER ARM
(Superseded to 03035200)

$

$

Not available

47

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 03035351

MOWER HANGER

$

$

Not available

49

Ariens 03122700

PIN-CLEV .498X4.50 YWZC

$

$

Not available

50

Ariens 03035100

SPACER .390X1.000X.562

$9.49

$

In Stock, only 3 left!

0

51

Ariens 03122100

PIN-CLEV .498X4.31 YWZC

$11.99

$

Usually ships in 4-12 days

0

52

Ariens 03122651

SUPPORT CHANNEL

$

$

Not available

53

Ariens 08313000

SG-COMP .62X.68X1.75

$17.99

$

Usually ships in 4-12 days

0

54

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 03124759

ARM
(Superseded to 03124700)

$

$

Not available

56

Ariens 03121900

SPACER .516X.749X.938

$16.99

$

In Stock, only 1 left!

0

57

Ariens 06223100

@BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

58

Ariens 06537300

@NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$3.99

$

In Stock, only 2 left!

0
