831043 - Gravely 54" Snow Blade for 7173H Tractor (SN: 000101 & Above) 54" Blade Parts Diagram

54" Snow Blade for 7173H Tractor

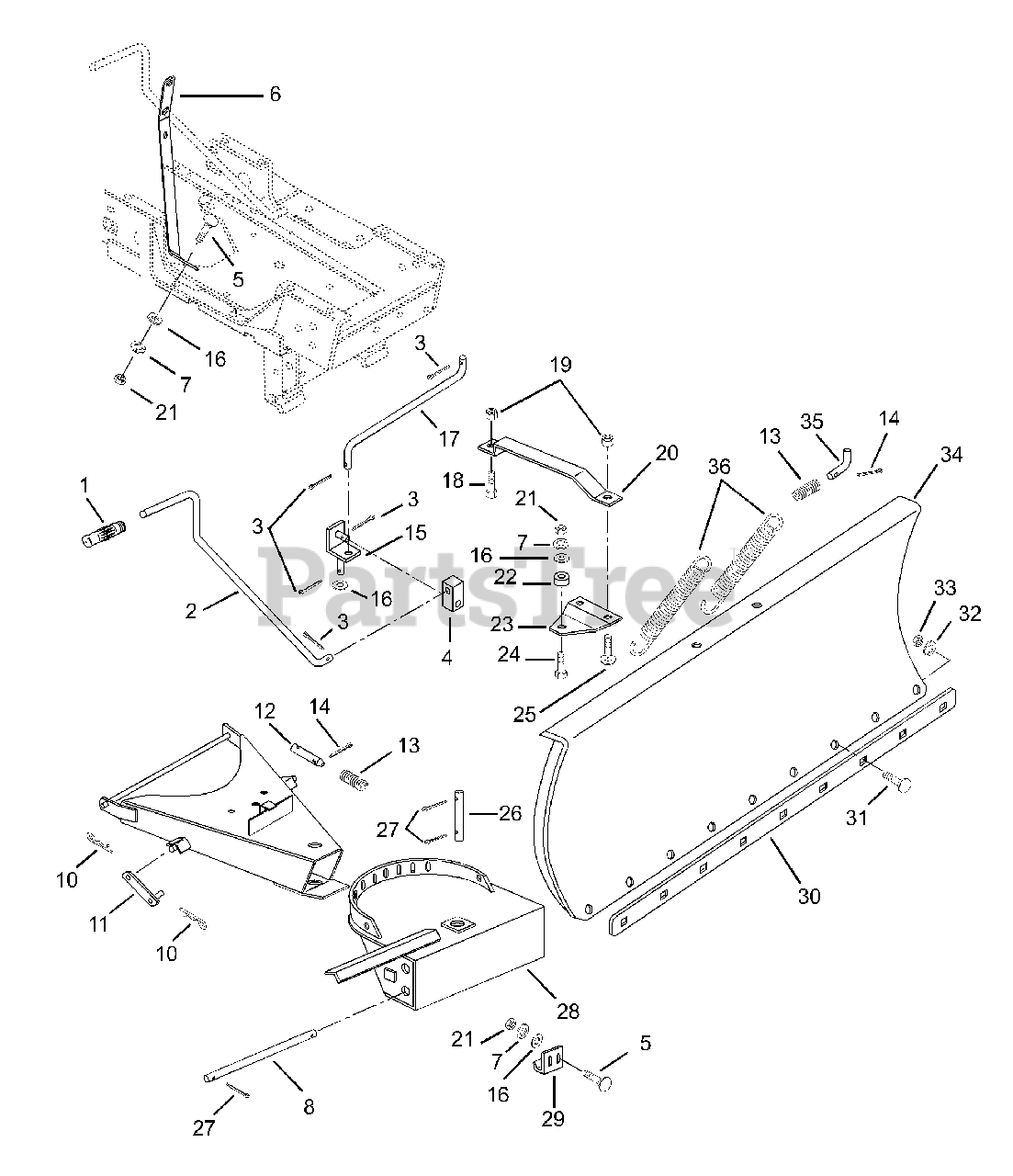

54" Blade Parts Diagram

  • Title

1

Gravely 040029

Grip
(Superseded to 07514700)

$

$

Not available

2

Gravely 040027

Rod
(Superseded to 03127500)

$38.99

$

Usually ships in 4-12 days

0

3

Gravely 177923

Pin-Cotter .12 x .75
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0

4

Gravely 036543

Universal Block Joint

$

$

Not available

5

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

6

Gravely 039550

Support Rod
(Superseded to 03127400)

$

$

Not available

7

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 15

0

8

Gravely 040028

Rod
(Superseded to 06502300)

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 040020

54 In Frame

$

$

Not available

10

Gravely 036908

Pin-Hair Internal .14 x .43 x 2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 9

0

11

Gravely 039549

Arm-Lift Link
(Superseded to 03127351)

$51.99

$

Usually ships in 4-12 days

0

12

Gravely 036528

Latch Pin
(Superseded to 03125400)

$

$

Not available

13

Gravely 036058

Spring-Compression .080 x .85 x 1.44
(Superseded to 08313200)

$38.99

$

Usually ships in 4-12 days

0

14

Gravely 137185

Pin-Cotter .12 x 1.0
(Superseded to 06707100)

$0.99

$

In Stock, Qty 12

0

15

Gravely 036542

Angle

$

$

Not available

16

Gravely 06400800

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06435900)

$1.49

$

In Stock, only 3 left!

0

17

Gravely 040023

Rod
(Superseded to 03125300)

$

$

Not available

18

Gravely 05906900

Bolt-Hex .31-18 x 1.25 Grade 2
(Superseded to 05947500)

$2.49

$

In Stock, only 2 left!

0

19

Gravely 413447

Nut-Locking .312-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 040021

Strap
(Superseded to 03126751)

$

$

Not available

21

Gravely 120377

Nut-Hex .375-16 Grade 2
(Superseded to 06500917)

$0.99

$

In Stock, Qty 5

0

22

Gravely 036537

Spacer

$

$

Not available

23

Gravely 036535

Pivot Plate

$

$

Not available

24

Gravely 05900400

Bolt-Hex .38-16 x 1.00
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 126216

Bolt-Round Head Square Neck .31-18 x .75

$

$

Not available

26

Gravely 040024

Pin
(Superseded to 03127600)

$34.99

$

Usually ships in 4-12 days

0

27

Gravely 06702600

Pin-Cotter .18 x 1.0
(Superseded to 06712000)

$1.99

$

Usually ships in 4-12 days

0

28

Gravely 040022

Pivot-Plate

$

$

Not available

29

Gravely 036554

Skid Shoe
(Superseded to 03127151)

$51.99

$

Usually ships in 4-12 days

0

30

Gravely 039547

Wear Plate
(Superseded to 03124951)

$140.99

$

Usually ships in 4-12 days

0

31

Gravely 036552

Bolt-Round Head Square Neck .312-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

32

Gravely 06300300

Washer-Lock .312 x .097
(Superseded to 06307400)

$0.99

$

In Stock, only 3 left!

0

33

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 14

0

34

Gravely 040025

54 In Blade

$

$

Not available

35

Gravely 040026

Jack Pin
(Superseded to 03127700)

$5.99

$

Usually ships in 4-12 days

0

36

Gravely 036558

Spring-Tens .187 x .50 x 9.94
(Superseded to 08313300)

$45.99

$

In Stock, only 1 left!

0
