831045 - Gravely 48" Sno-Thro for 7173H Tractor (SN: 000101 & Above) Auger & Housing Parts Diagram

48" Sno-Thro for 7173H Tractor

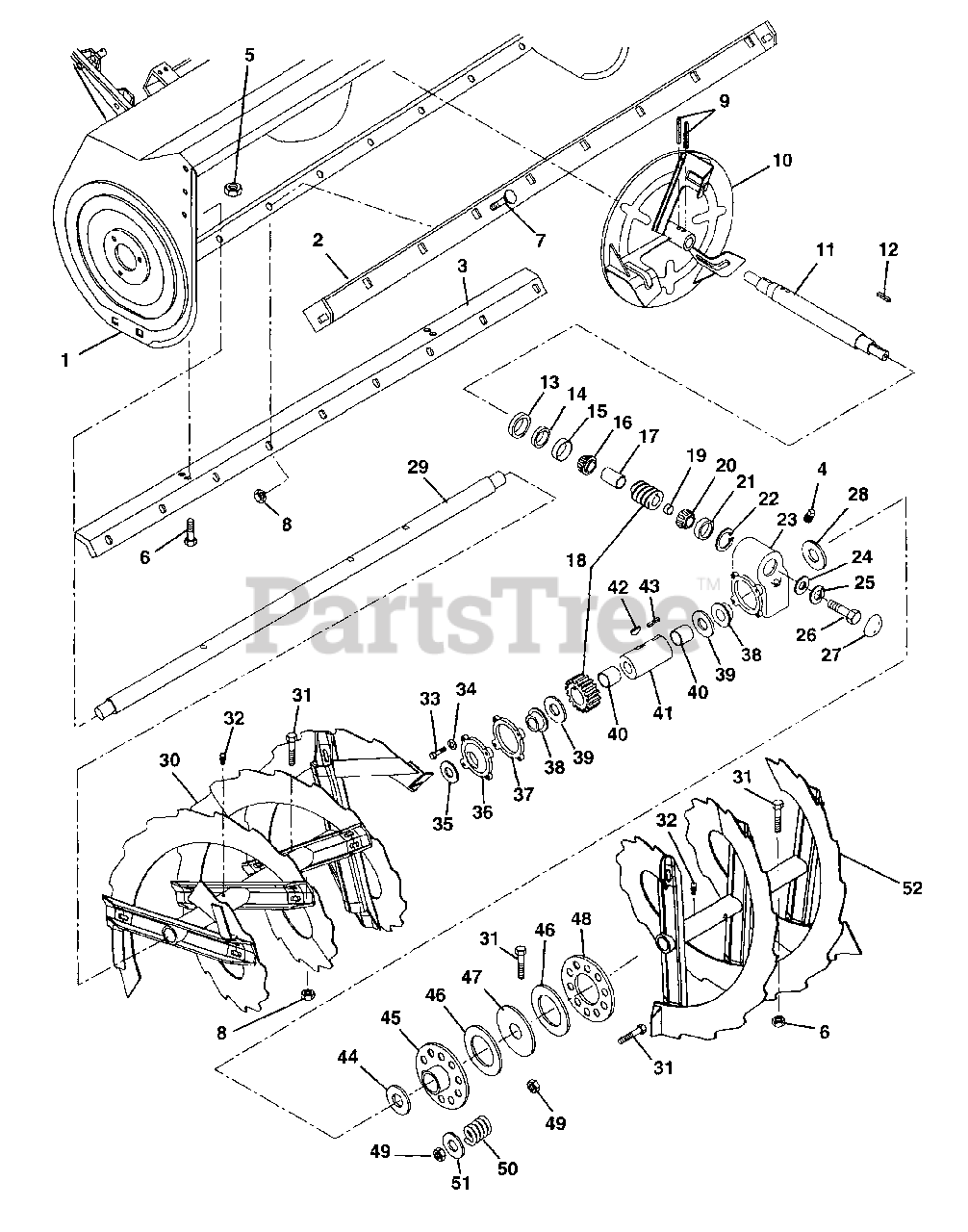

Auger & Housing Parts Diagram

  • Title

1

Gravely 53127400

48 Auger/16 Impeller Housing

$

$

Not available

2

Gravely 03195443

Scraper Blade

$83.99

$

In Stock, only 1 left!

0

3

Gravely 03185843

Scraper Blade Brace

$219.99

$

Usually ships in 4-12 days

0

4

Gravely 035945

Pipe Plug
(Superseded to 00113800)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06529600

Nut-Locking Center .375-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

7

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 8

0

8

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 036869

Pin-Roll .313 x 1.75
(Superseded to 05801500)

$2.49

$

In Stock, Qty 8

0

10

Gravely 03097951

Fan 16 Inch
(Superseded to 03097943)

$391.99

$

Usually ships in 4-12 days

0

11

Gravely 03084700

Worm Shaft

$512.99

$

Usually ships in 4-12 days

0

12

Gravely 036230

Key-Square .188 x 1.00 x .188
(Superseded to 06601300)

$1.49

$

In Stock, Qty 5

0

13

Gravely 037529

Adjustment Plug
(Superseded to 03188200)

$58.99

$

Usually ships in 4-12 days

0

14

Gravely 037528

Seal 1.125 x 1.375 x .125
(Superseded to 05604600)

$10.99

$

In Stock, only 1 left!

0

15

Gravely 038109

Bearing-Cup Point 1.980 x .420
(Superseded to 05407000)

$17.99

$

In Stock, Qty 13

0

16

Gravely 038110

Bearing-Cone 1.0 x .58
(Superseded to 05406900)

$18.99

$

In Stock, Qty 16

0

17

Gravely 036352

Bearing Spacer
(Superseded to 03188100)

$26.99

$

In Stock, only 1 left!

0

18

Gravely 036858

Worm & Gear Service Assembly
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

19

Gravely 036852

Bearing Spacer 1.12 x 1.52 x .5
(Superseded to 00200500)

$7.49

$

In Stock, only 2 left!

0

20

Gravely 018446

Bearing-Cone .750 x .61
(Superseded to 05404500)

$22.99

$

In Stock, Qty 20+

0

21

Gravely 018445

Bearing-Cup Point 1.78 x .475
(Superseded to 05404400)

$9.49

$

In Stock, Qty 20+

0

22

Gravely 036921

Ring-Retaining-Internal 1.781 x .062
(Superseded to 05707500)

$9.49

$

In Stock, only 1 left!

0

23

Gravely 037524

Gear Case

$

$

Not available

24

Gravely 06437500

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

25

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 7

0

27

Gravely 036856

Dust Cap
(Superseded to 00403700)

$18.99

$

In Stock, only 1 left!

0

28

Gravely 036863

Seal 1.625 x 2.125 x .250
(Superseded to 05607000)

$9.99

$

In Stock, only 3 left!

0

29

Gravely 037533

48 Inch Rake Shaft
(Superseded to 03054800)

$258.99

$

Usually ships in 4-12 days

0

30

Gravely 53127900

Rake, Right Hand-48

$861.99

$

In Stock, only 1 left!

0

31

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 6

0

32

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

33

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 8

0

34

Gravely 06306800

Washer-Locking External .262 x .502 x .026
(Superseded to 06300118)

$0.99

$

In Stock, only 2 left!

0

35

Gravely 036863

Seal 1.625 x 2.125 x .250
(Superseded to 05607000)

$9.99

$

In Stock, only 3 left!

0

36

Gravely 036861

Gear Case Cover
(Superseded to 02401300)

$136.99

$

Usually ships in 4-12 days

0

37

Gravely 036862

Gasket
(Superseded to 00200800)

$3.99

$

In Stock, only 3 left!

0

38

Gravely 036860

Bushing-Flange 1.625 x 1.87 x 1.68 x 2.250
(Superseded to 05505900)

$14.99

$

In Stock, only 4 left!

0

39

Gravely 036859

Washer-Flat-Steel 1.625 x 2.500 x .012
(Superseded to 06408700)

$11.99

$

In Stock, only 4 left!

0

40

Gravely 037532

Bushing-Sleeve 1.125 x 1.125 x 1.000
(Superseded to 05513900)

$14.99

$

Usually ships in 4-12 days

0

41

Gravely 037530

Gear Case Shaft
(Superseded to 03054700)

$113.99

$

Usually ships in 4-12 days

0

42

Gravely 038820

Key-Feather .25 x .875 x .25
(Superseded to 06604800)

$6.99

$

Usually ships in 4-12 days

0

43

Gravely 037536

Key-Square .25 x .625 x .375
(Superseded to 06604700)

$9.49

$

Usually ships in 4-12 days

0

44

Gravely 037535

Washer-Flat-Steel 1.625 x 2.500 x .060
(Superseded to 06421100)

$9.49

$

Usually ships in 4-12 days

0

45

Gravely 037537

Driver
(Superseded to 03055000)

$

$

Not available

46

Gravely 037538

Friction Disc
(Superseded to 03055100)

$97.99

$

Usually ships in 4-12 days

0

47

Gravely 037539

Driven Plate
(Superseded to 03055200)

$

$

Not available

48

Gravely 037540

Pressure Plate
(Superseded to 03055300)

$

$

Not available

49

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 08321600

Spring-Comp .156 x .665 x .75

$9.49

$

Usually ships in 4-12 days

0

51

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

Usually ships in 4-12 days

0

52

Gravely 53128000

Rake, Left Hand-48"

$

$

Not available
