8354 (54AZ85A-710) - Cub Cadet Compact Tractor Light Group Parts Diagram

Compact Tractor

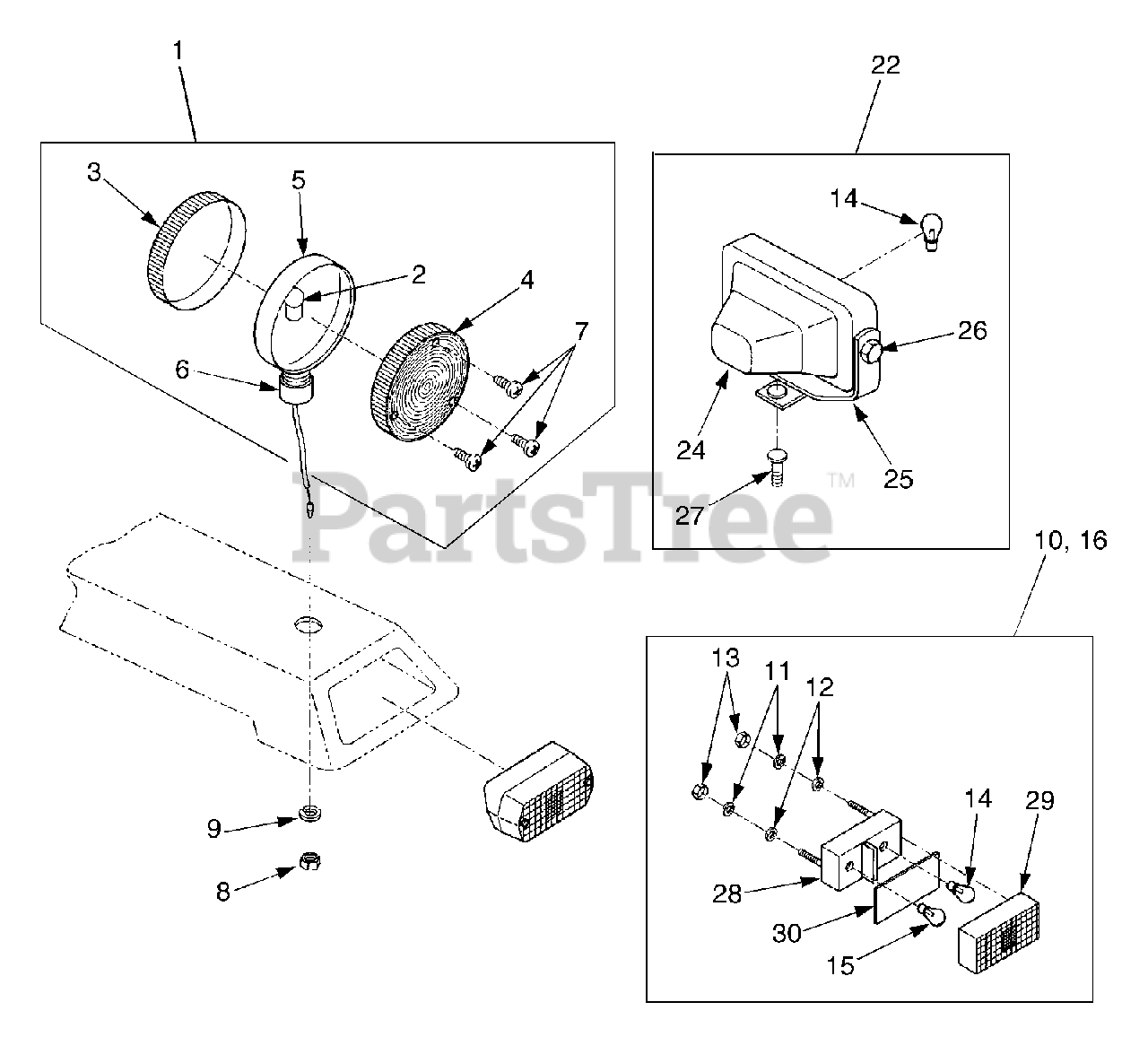

Light Group Parts Diagram

  • Title

1

Cub Cadet DD-84612-34231

Lamp, Hazard
(Superseded to DD-T2546-69061)

$

$

Not available

2

Cub Cadet DD-84612-34281

Bulb, Hazard

$5.99

$

In Stock, only 1 left!

0

3

Cub Cadet DD-84612-34240

Cover (LH)

$

$

Not available

4

Cub Cadet DD-84612-34250

Cover (RH)

$

$

Not available

5

Cub Cadet DD-84612-34260

Frame

$

$

Currently unavailable

6

Cub Cadet DD-84612-34270

Packing

$

$

Not available

7

Cub Cadet DD-84612-34300

Screw

$

$

Currently unavailable

8

Cub Cadet DD-02014-50100

Nut

$

$

Not available

9

Cub Cadet DD-04512-50100

Washer, Spring

$

$

Not available

10

Cub Cadet DD-T2630-75891

Reflector Amp Ass'y (LH)

$

$

Not available

11

Cub Cadet DD-04012-50050

Washer, Plain

$

$

Not available

12

Cub Cadet DD-04512-50050

Washer, Spring

$

$

Not available

13

Cub Cadet DD-02114-50050

Nut

$

$

Not available

14

Cub Cadet DD-T4340-33682

Bulb

$

$

Not available

15

Cub Cadet DD-T4340-33692

Bulb

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet DD-T2630-75881

Reflector Amp Ass'y (RH)

$

$

Not available

22

Cub Cadet DDT261634501YW

Working Lamp Ass'y

$

$

Not available

24

Cub Cadet DD-T4340-34511

Body

$

$

Currently unavailable

25

Cub Cadet DD-T2616-34541

Bracket

$

$

Currently unavailable

26

Cub Cadet DD-01754-50816

Bolt, Flange

$

$

Not available

27

Cub Cadet DD-01135-51020

Bolt

$

$

Not available

28

Cub Cadet DD-84612-34240

Cover (LH)

$

$

Not available

29

Cub Cadet DD-84612-34250

Cover (RH)

$

$

Not available

30

Cub Cadet DD-84612-34270

Packing

$

$

Not available
