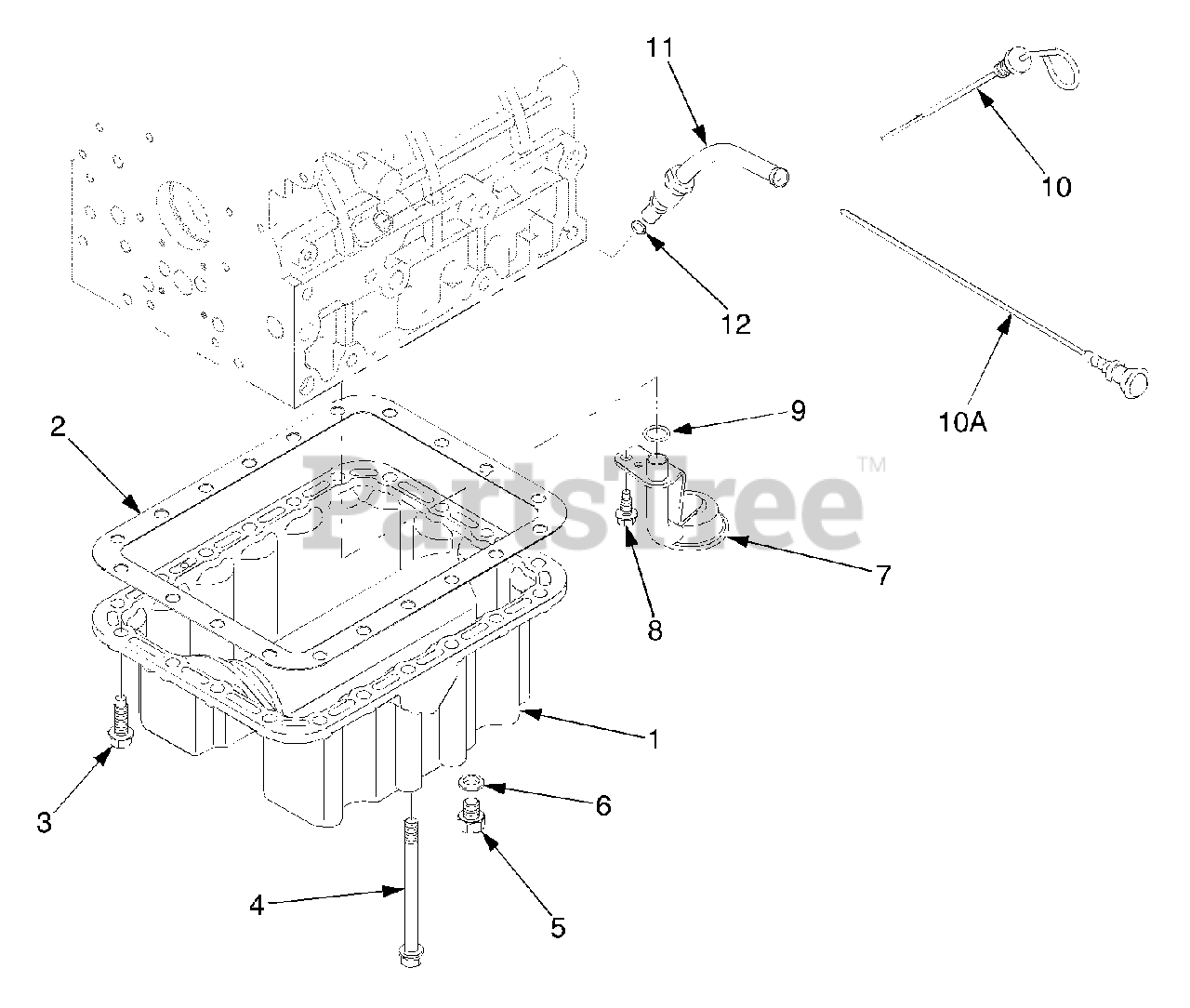

8354 (54AZ85A-710) - Cub Cadet Compact Tractor Oil Pan Parts Diagram

Compact Tractor

Oil Pan Parts Diagram

  • Title

1

Cub Cadet DD-E5600-A0071

Oil Pan Ass'y

Note: Include Ref. Nos. 5 & 6

$

$

Not available

2

Cub Cadet DD-E5500-01622

Gasket, Oil Pan
(Superseded to DD-E5500-01623)

$34.99

$

In Stock, only 1 left!

0

3

Cub Cadet DD-01674-51032

Bolt, Flange

$

$

Not available

4

Cub Cadet DD-E6200-91092

Bolt

$

$

Not available

5

Cub Cadet DD-15221-33752

Plug, Drain
(Superseded to DD-E1100-33752)

$6.99

$

Usually ships in 3-6 days

0

6

Cub Cadet DD-04717-01200

Washer, Seal

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet DD-E6200-32112

Filter 1, Oil
(Superseded to DD-E6200-32113)

$33.99

$

In Stock, only 2 left!

0

8

Cub Cadet DD-01654-50820

Bolt, Flange

$

$

Not available

9

Cub Cadet DD-04811-00160

O-ring

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet DD-E6305-36411

Gauge, Oil
(Superseded to DD-E6305-36412)

Note: Ser. No. 3185-00452 & Below

$12.99

$

Usually ships in 3-6 days

0

10A

Cub Cadet DD-E7310-36413

Gauge, Oil
(Superseded to DD-E7310-36414)

Note: Ser. No. 3185-00453 & Above

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet DD-E6305-36421

Guide, Oil Gauge Pipe

Note: Ser. No. 3185-00453 & Above

$

$

Not available

12

Cub Cadet DD-E7310-36431

Packing

Note: Ser. No. 3185-00453 & Above

$

$

Not available
