8354 (54AZ85A-710) - Cub Cadet Compact Tractor Valves And Rocker Arm Parts Diagram

Compact Tractor

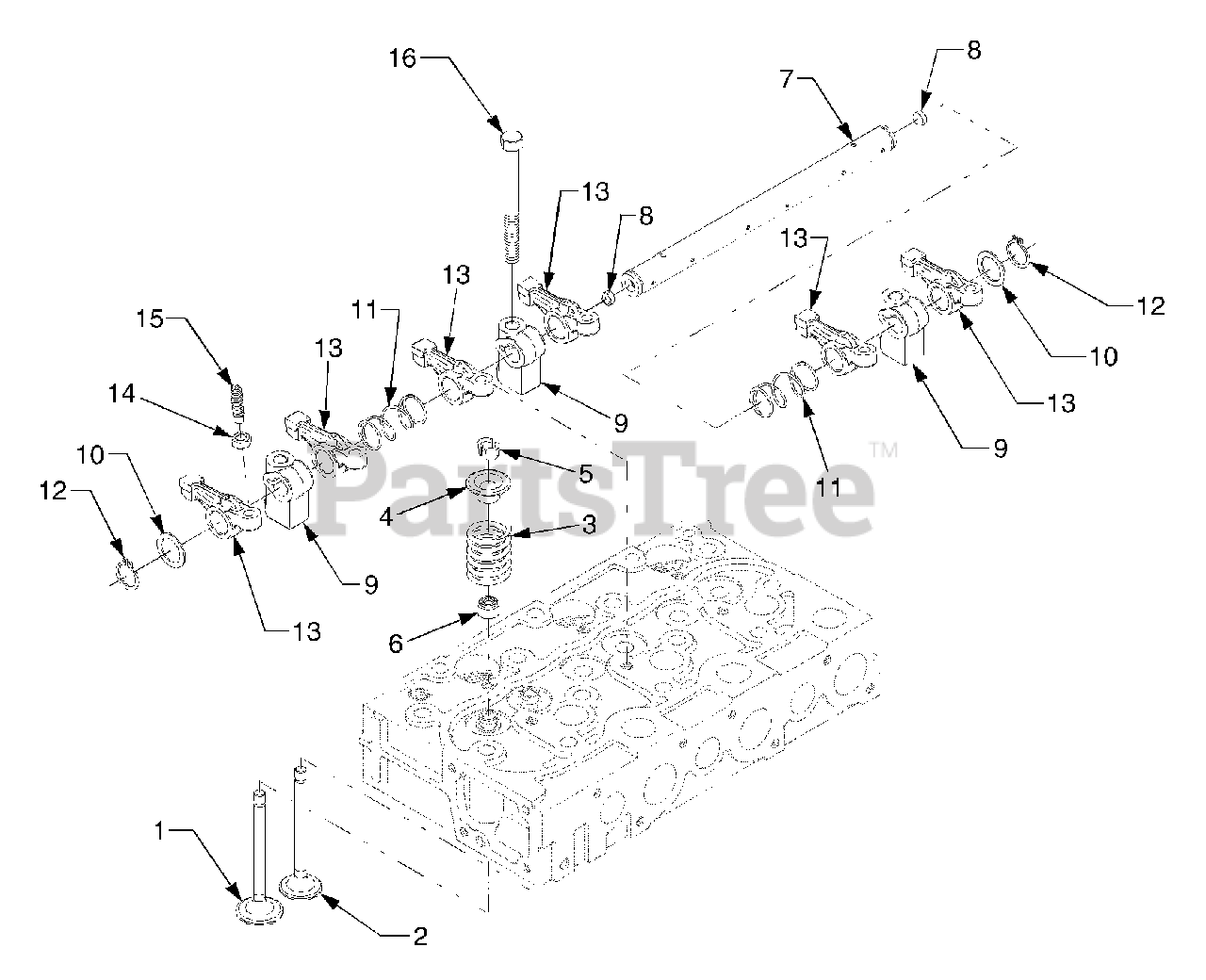

Valves And Rocker Arm Parts Diagram

  • Title

1

Cub Cadet DD-E6301-13111

Valve, Inlet

$

$

Not available

2

Cub Cadet DD-E6301-13121

Valve, Outlet

$

$

Not available

3

Cub Cadet DD-15221-13242

Spring, Valve

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet DD-E5500-13332

Retainer, Valve Spring

$

$

Not available

5

Cub Cadet DD-E5500-13362

Collet, Valve Spring
(Superseded to DD-E6403-13361)

$

$

Not available

6

Cub Cadet DD-E6301-13151

Seal, Valve Stem

$

$

Not available

7

Cub Cadet DD-E5800-14051

Rocker Arm Shaft Ass'y

Note: Includes Ref. Nos. 8

$

$

Not available

8

Cub Cadet DD-E6301-14331

Cap, Sealing

$

$

Not available

9

Cub Cadet DD-E6301-14351

Bracket, Rocker Arm

$

$

Not available

10

Cub Cadet DD-E6301-14431

Washer, Plain

$

$

Not available

11

Cub Cadet DD-E6301-14311

Spring, Rocker Arm

$

$

Not available

12

Cub Cadet DD-04612-00190

Cir-clip

$

$

Not available

13

Cub Cadet DD-E6301-14111

Arm, Rocker

$

$

Not available

14

Cub Cadet DD-15021-14241

Nut, Adjusting

$

$

Not available

15

Cub Cadet DD-E5500-14232

Screw, Adjusting

$

$

Not available

16

Cub Cadet DD-E6510-91501

Bolt, Rocker Arm

$

$

Not available
