8404 (54AW859-100) - Cub Cadet Compact Tractor Counter Shaft Group Parts Diagram

Compact Tractor

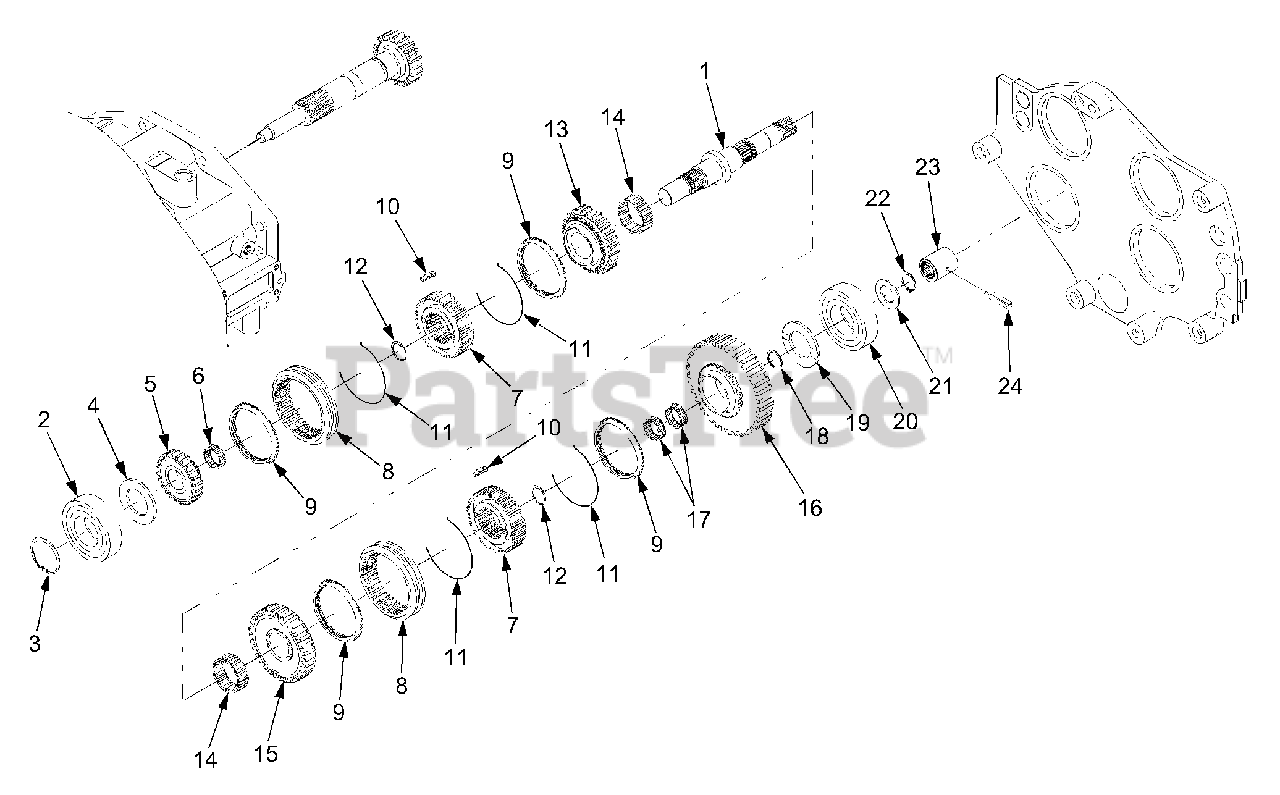

Counter Shaft Group Parts Diagram

  • Title

1

Cub Cadet DD-T2610-21611

Shaft, Counter

$

$

Not available

2

Cub Cadet DD-T2610-21621

Bearing, Ball

$

$

Not available

3

Cub Cadet DD-04611-00250

Cir-clip

$

$

Not available

4

Cub Cadet DD-T2305-21761

Collar, Thrust

$

$

Not available

5

Cub Cadet DD-T2610-21713

Gear, 24

$

$

Not available

6

Cub Cadet DD-08822-53020

Bearing, Needle

$

$

Not available

7

Cub Cadet DD-T2610-21772

Hub, Synchro

$

$

Not available

8

Cub Cadet DD-T2610-21753

Shifter
(Superseded to DD-T2610-21754)

$

$

Not available

9

Cub Cadet DD-T4240-21792

Ring, Synchronize

$25.99

$

Usually ships in 3-6 days

0

10

Cub Cadet DD-T2610-21812

Key, Synchronize

$

$

Not available

11

Cub Cadet DD-38360-21781

Spring

$

$

Not available

12

Cub Cadet DD-T2610-14541

Cir-clip

$

$

Not available

13

Cub Cadet DD-T2610-21722

Gear, 29

$

$

Not available

14

Cub Cadet DD-08823-23727

Bearing, Needle

$

$

Not available

15

Cub Cadet DD-T2610-21731

Gear, 33

$

$

Not available

16

Cub Cadet DD-T2610-21742

Gear, 36

$

$

Not available

17

Cub Cadet DD-08822-53013

Bearing, Needle

$

$

Not available

18

Cub Cadet DD-37150-21791

Cir-clip

$

$

Not available

19

Cub Cadet DD-37150-21761

Collar, Thrust

$

$

Not available

20

Cub Cadet DD-08101-06305

Bearing, Ball

$

$

Not available

21

Cub Cadet DD-34150-21561

Collar

$

$

Not available

22

Cub Cadet DD-04612-00250

Cir-clip

$

$

Not available

23

Cub Cadet DD-37805-44521

Coupling

$

$

Not available

24

Cub Cadet DD-05411-00635

Pin, Spring

$3.49

$

Usually ships in 3-6 days

0
