8404 (54AW859-100) - Cub Cadet Compact Tractor Range Shaft Group Parts Diagram

Compact Tractor

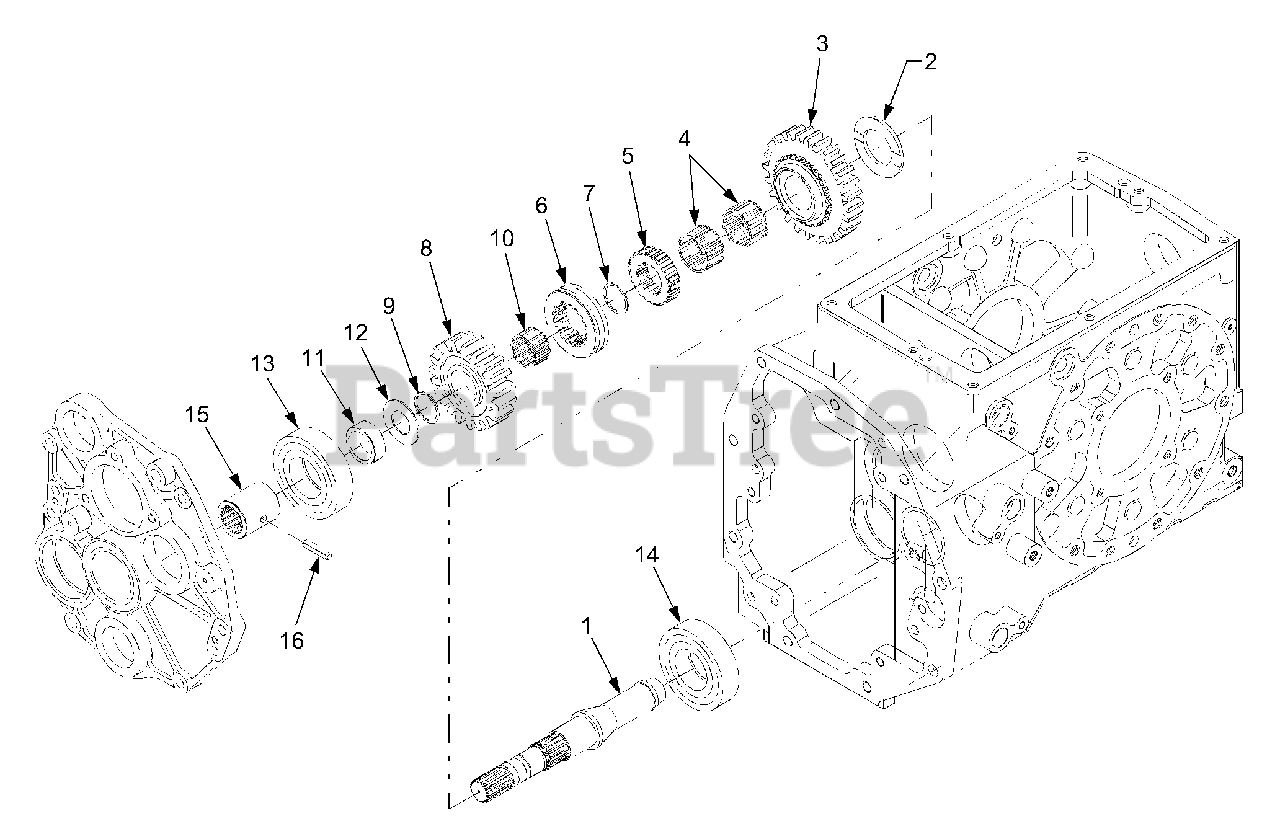

Range Shaft Group Parts Diagram

  • Title

1

Cub Cadet DD-T2610-23611

Shaft, Range

$

$

Not available

2

Cub Cadet DD-T2610-23621

Collar, Thrust

$

$

Not available

3

Cub Cadet DD-T2610-23632

Gear, 32 Spur

$

$

Not available

4

Cub Cadet DD-08823-23717

Bearing, Needle

$

$

Not available

5

Cub Cadet DD-T2610-23761

Boss, Spline

$

$

Not available

6

Cub Cadet DD-T2610-23751

Shifter

$

$

Not available

7

Cub Cadet DD-T2610-14541

Cir-clip

$

$

Not available

8

Cub Cadet DD-T2610-23652

Gear, 18 Spur

$

$

Not available

9

Cub Cadet DD-37150-21791

Cir-clip

$

$

Not available

10

Cub Cadet DD-08822-53020

Bearing, Needle

$

$

Not available

11

Cub Cadet DD-T2610-23781

Spacer

$

$

Not available

12

Cub Cadet DD-37150-21761

Collar, Thrust

$

$

Not available

13

Cub Cadet DD-08101-06305

Bearing, Ball

$

$

Not available

14

Cub Cadet DD-08101-06205

Bearing, Ball

$

$

Not available

15

Cub Cadet DD-37805-44521

Coupling

$

$

Not available

16

Cub Cadet DD-05411-00635

Pin, Spring

$3.49

$

Usually ships in 3-6 days
