8560 El (1694845) - Simplicity OHV 24" Snow Thrower, 8.5hp Wheels & Tires Group (4248whee) Parts Diagram

OHV 24" Snow Thrower, 8.5hp

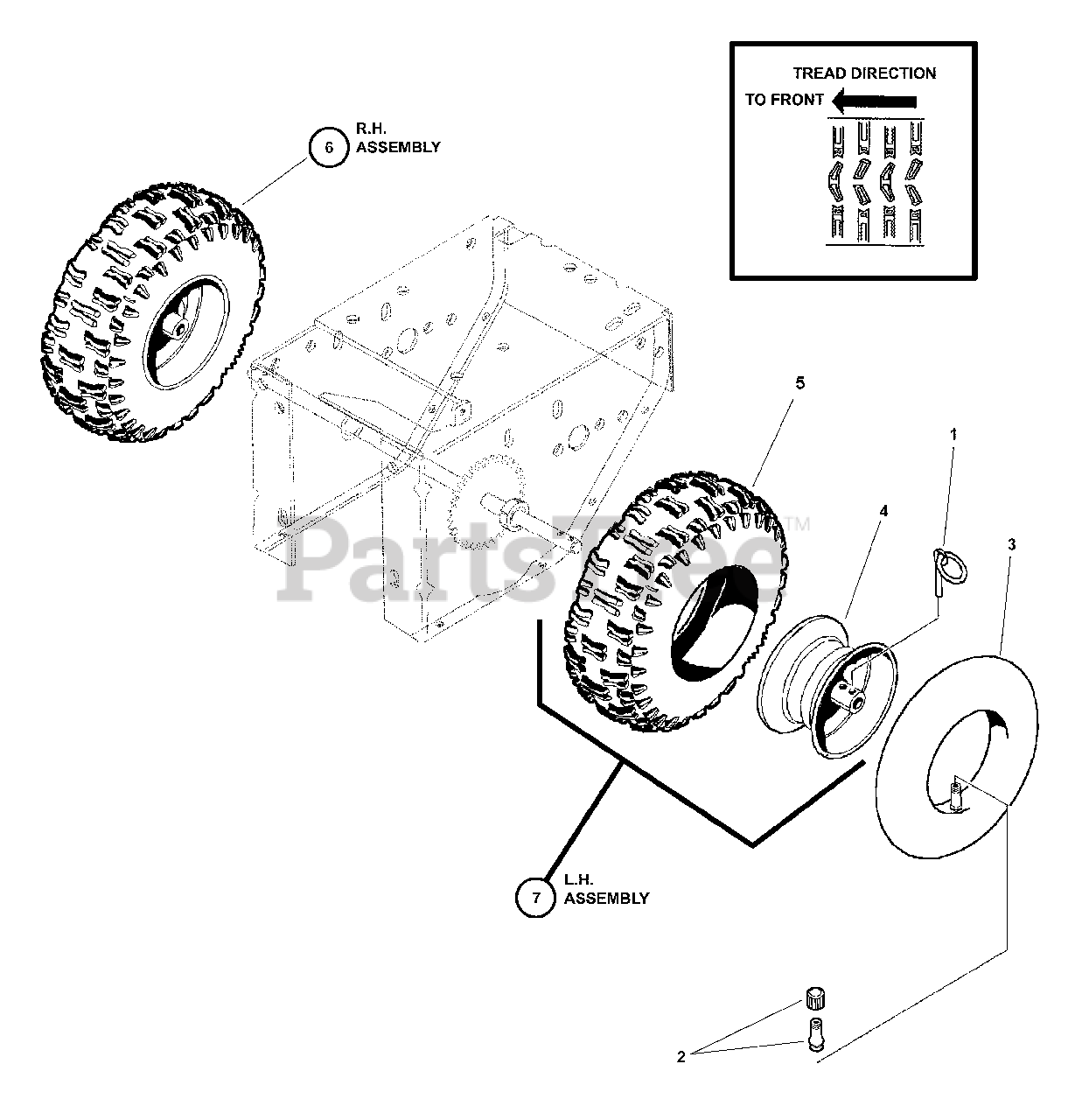

Wheels & Tires Group (4248whee) Parts Diagram

  • Title

1

Simplicity 1666969SM

KLIK- PIN, .310 ID x 1-3/4" Long

$7.49

$

Usually ships in 2-12 days

0

2

Simplicity 0172353

VALVE STEM AND CAP

Note: per tire assembly

$

$

Not available

3

Simplicity 1664090SM

TUBE, Tire

Note: per tire assembly (Optional)

$26.99

$

Usually ships in 2-12 days

0

4

Simplicity 1723286SM

RIM, 6 x 3.25 (Weldment)

Note: per tire assembly

$66.99

$

Usually ships in 2-12 days

0

5

Simplicity 7026169SM

TIRE, 15 x 5.00-6, 2 Ply, Carlisle X-Trac

Note: per tire assembly

$66.99

$

Usually ships in 2-12 days

0

6

Simplicity 1726747SM

ASSY, Tire and Wheel, 15 x 5.00-6 Carlisle X-Trac, RH

Note: (Includes Ref. Nos. 2, 4 & 5)

$136.99

$

Usually ships in 2-12 days

0

7

Simplicity 1726746SM

ASSY, Tire and Wheel, 15 x 5.00-6 Carlisle X-Trac, LH

Note: (Includes Ref. Nos. 2, 4 & 5)

$136.99

$

Usually ships in 2-12 days

0
