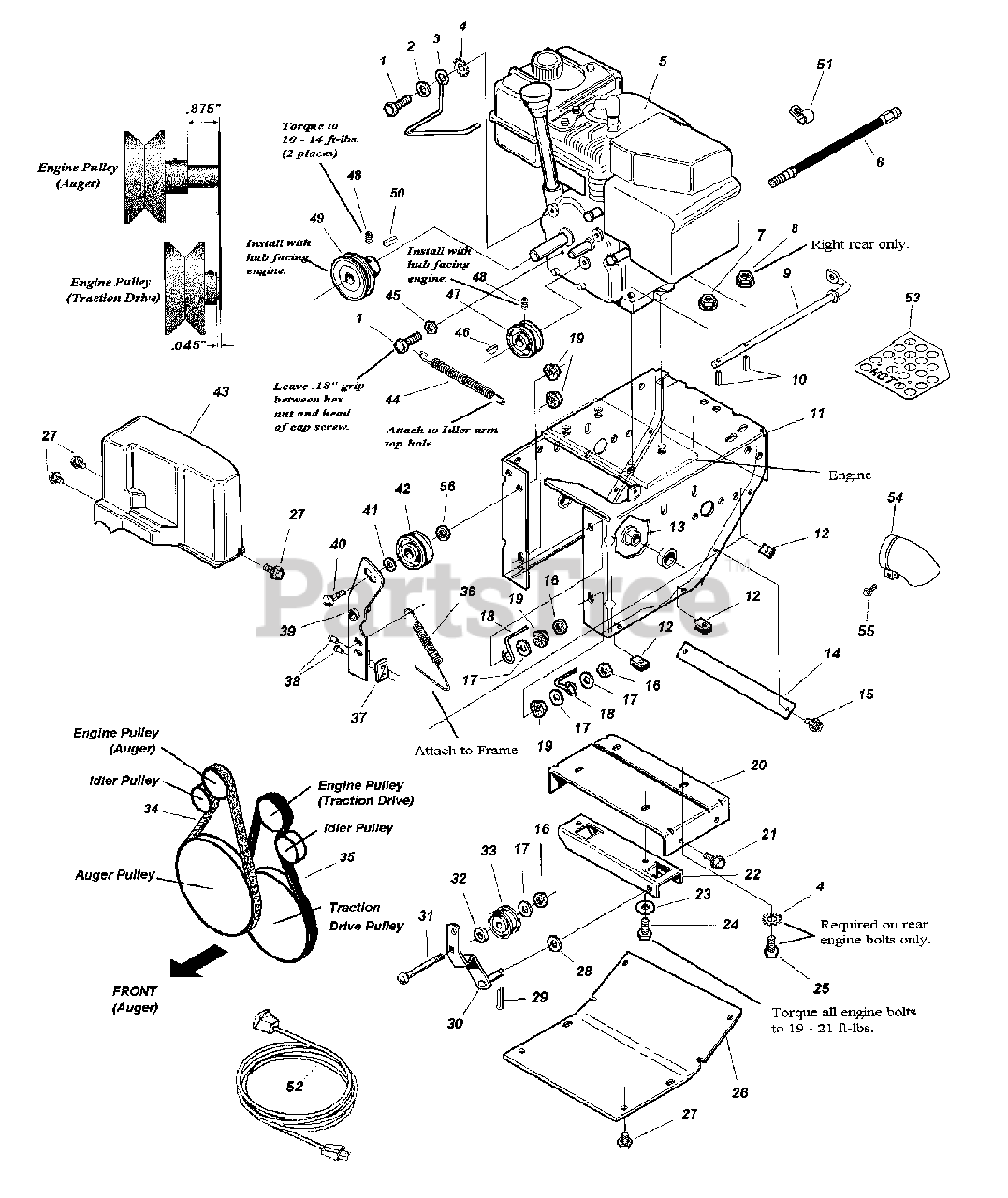

860 E (1694588) - Simplicity 24" Snow Thrower, 8hp Engine, Pulleys, & Frame Group - 8HP Briggs & Stratton (070epi8b) Parts Diagram

24" Snow Thrower, 8hp

Engine, Pulleys, & Frame Group - 8HP Briggs & Stratton (070epi8b) Parts Diagram

  • Title

1

Simplicity 1921982SM

SCREW, 5/16-24 x 1-1/4" Hex Head Cap, GR 5
(Superseded to 703299)

$4.99

$

Usually ships in 2-12 days

0

2

Simplicity 1924874SM

WASHER, 5/16" Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 1725424SM

BELT STOP, Wire

$9.99

$

Usually ships in 2-12 days

0

4

Simplicity 1920427SM

LOCKWASHER, 5/16" Exterior Tooth

$3.99

$

Usually ships in 2-12 days

0

5

ENGINE, 8 HP Briggs, Model 12E394, Type 0110, Trim E1

$

$

Not available

5

ENGINE, 8HP Intek (Metric) Briggs & Stratton

Note: Model 12E396, Type 0111, Trim E1 (CE/Export)

$

$

Not available

6

Simplicity 1726942SM

HOSE, Oil Drain

$28.99

$

Usually ships in 2-12 days

0

7

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock- small
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

8

Simplicity 1931277SM

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 1715092SM

ROD, Idler

$20.99

$

Usually ships in 2-12 days

0

10

Simplicity 2816169SM

ROLL PIN, 3/16 x 3/4"

$4.49

$

Usually ships in 2-12 days

0

11

Simplicity 7072566SM

FRAME ASSEMBLY, Intermediate (Orange)

$159.99

$

Usually ships in 2-12 days

0

12

Simplicity 1926018SM

SPEED NUT, 1/4-20 U-Type

$4.49

$

In Stock, Qty 12

0

13

Simplicity 1666001SM

BUSHING, 1.00 long

$6.99

$

In Stock, only 2 left!

0

14

Simplicity 1715559A

SUPPORT, Tie Bar
(Superseded to 1715559SM)

$14.99

$

Usually ships in 2-12 days

0

15

Simplicity 1929477SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 1960251SM

JAM NUT, 3/8-16 Hex Center Lock
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

17

Simplicity 1924940SM

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Simplicity 1674315SM

ROD, Belt Guide

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1922694SM

NUT, 3/8-16 Hex Nyloc Heavy Thin
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Simplicity 1715756A

SUPPORT, Frame
(Superseded to 1715756SM)

$33.99

$

Usually ships in 2-12 days

0

21

Simplicity 1924856SM

SCREW, 5/16-18 x 1/2" Hex Washer Self-Tap
(Superseded to 703985)

$4.49

$

In Stock, Qty 10

0

22

Simplicity 1715111SM

SUPPORT, Pivot

$12.99

$

Usually ships in 2-12 days

0

23

Simplicity 1919381SM

WASHER, 5/16" Flat
(Superseded to 703298)

$4.49

$

In Stock, Qty 9

0

24

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

25

Simplicity 1922127SM

SCREW, 5/16-18 x 1-3/4 Hex Head Cap, GR 5
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

26

Simplicity 7072555SM

COVER, Bottom, Orange

$74.99

$

Usually ships in 2-12 days

0

27

Simplicity 7091819SM

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

28

Simplicity 1925125SM

WASHER, 7/16" Flat

$6.49

$

In Stock, only 2 left!

0

29

Simplicity 1918451SM

COTTER PIN, 1/8 x 3/4"

$3.99

$

In Stock, only 1 left!

0

30

Simplicity 1725369SM

IDLER ARM ASSEMBLY

$44.99

$

Usually ships in 2-12 days

0

31

Simplicity 1960268SM

BOLT, 3/8-16 x 1-1/4" Short Square Neck Carriage

$4.49

$

In Stock, Qty 13

0

32

Simplicity 2174870SM

SPACER, .377 ID x .75 OD x .312 Long

$45.99

$

Usually ships in 2-12 days

0

33

Simplicity 2118414SM

PULLEY, Idler

$26.99

$

Usually ships in 2-12 days

0

34

Simplicity 1717393SM

BELT, Auger Drive

$32.99

$

In Stock, Qty 5

0

35

Simplicity 1725371SM

V-BELT, Traction Drive

$29.99

$

In Stock, Qty 6

0

36

Simplicity 1715118SM

SPRING, Extension

$8.49

$

In Stock, only 4 left!

0

37

Simplicity 1669313SM

PAD, Brake

$14.99

$

In Stock, Qty 6

0

38

Simplicity 2825160SM

RIVET, Blind

$4.49

$

In Stock, Qty 8

0

39

Simplicity 1717320SM

ASSEMBLY, Idler Arm w/Brake Pad

$55.99

$

Usually ships in 2-12 days

0

40

Simplicity 7091810SM

BOLT, 3/8-16 x 1-3/4 Short Square Neck Carriage, GR 5
(Superseded to 703879)

$3.99

$

In Stock, Qty 13

0

41

Simplicity 1922755SM

WASHER, 3/8" Flat (.41 ID x 1.00 OD x .13 Thick)
(Superseded to 704128)

$4.99

$

In Stock, Qty 6

0

42

Simplicity 1668477SM

PULLEY, Idler

$23.99

$

In Stock, only 4 left!

0

43

Simplicity 1725379SM

COVER, Belt

$30.99

$

In Stock, only 2 left!

0

44

Simplicity 2159106SM

SPRING, Extension, .562 O.D. x 4.250 Long
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0

45

Simplicity 2820438SM

JAM NUT, 5/16-24 Hex

$3.49

$

In Stock, only 2 left!

0

46

Simplicity 2824819SM

KEY - Hi Pro .125 x .625 HP 504 SAE1035

$3.49

$

Usually ships in 2-12 days

0

47

Simplicity 1674325SM

PULLEY, V Groove

$29.99

$

Usually ships in 2-12 days

0

48

Simplicity 1960619SM

SET SCREW, 5/16-18 x 5/16" Hex Recess, Cup Point

$3.49

$

In Stock, only 2 left!

0

49

Simplicity 1720313SM

PULLEY, 2.75 OD

$34.99

$

Usually ships in 2-12 days

0

50

Simplicity 2805850SM

KEY, 3/16 Square x 1"

$2.49

$

Usually ships in 2-12 days

0

51

Simplicity 7015861SM

HARNESS CLIP

$3.49

$

Usually ships in 2-12 days

0

52

Simplicity 1724064SM

CORD, Electric Start

$40.99

$

Usually ships in 2-12 days

0

53

Simplicity 1725665A

GUARD, Muffler
(Superseded to 1725665SM)

$15.99

$

Usually ships in 2-12 days

0

54

Simplicity 1727032SM

MUFFLER, Deflector- B&S

$12.99

$

Usually ships in 2-12 days

0

55

Simplicity 1727033SM

CAPSCREW, Thread Rolling M4 x 0.7, Briggs p/n 226462

$3.49

$

Usually ships in 2-12 days

0

56

Simplicity 1930645SM

NUT, 3/8-16 Hex Flange Lock Two Way, Briggs p/n 810140
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
