8712-0 - Generac 7,000 Watt Portable Generator Mounting Base No. 50986 Parts Diagram

7,000 Watt Portable Generator

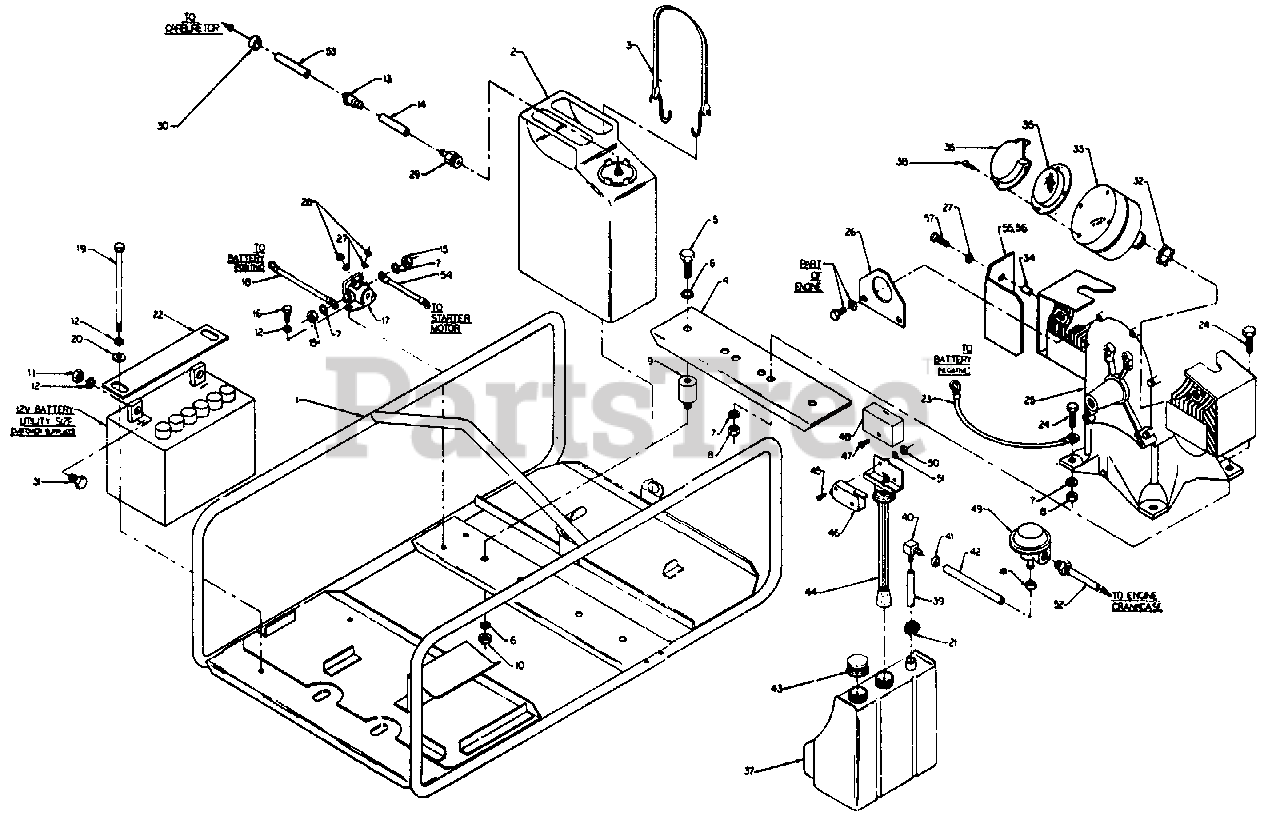

Mounting Base No. 50986 Parts Diagram

  • Title

1

Briggs & Stratton 50973

BASE, Mounting

$

$

Currently unavailable

2

Briggs & Stratton 50543

TANK, Fuel

$

$

Currently unavailable

3

Briggs & Stratton 43943

STRAP, Fuel Tank Retaining

$

$

Currently unavailable

4

Briggs & Stratton 42372

BAR, Engine Spreader

$

$

Currently unavailable

5

Briggs & Stratton 23152

CAPSCREW, Hex Head - 3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

7

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 38353

DAMPENER, Vibration
(Superseded to 38353GS)

$39.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

11

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

12

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 47294

FILTER, Fuel

$

$

Not available

14

Briggs & Stratton 47662T

HOSE, Fuel - 1/4" ID x 4-1/2" long

$

$

Currently unavailable

15

Briggs & Stratton 24114

NUT, Hex - 5/16"-24

$

$

Not available

16

Briggs & Stratton 22507

CAPSCREW, Hex Head - 1/4"-20 x 1/2"

$

$

Not available

17

Briggs & Stratton 24492

SOLENOID, Starter

$

$

Currently unavailable

18

Briggs & Stratton 4411417

CABLE, Battery (Red) - Positive (+)

$

$

Currently unavailable

19

Briggs & Stratton 45000

SCREW, Hex Head Machine - 1/4"-20 x 7"
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

20

22473

WASHER, Flat - 1/4"

$

$

Not available

21

Briggs & Stratton 35472

CLAMP, Hose

$

$

Currently unavailable

22

Briggs & Stratton 44951

BRACKET, Battery Hold-Down

$

$

Currently unavailable

23

Briggs & Stratton 4411413

CABLE, Battery (Black) - Negative (-)

$

$

Currently unavailable

24

Briggs & Stratton 22283

CAPSCREW, Hex Head - 5/16"-18 x 1-1/2"
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 61474

ENGINE - Briggs & Stratton Twin-Cylinder

$

$

Currently unavailable

26

Briggs & Stratton 42393

BRACKET, Lifting

$

$

Currently unavailable

27

Briggs & Stratton 22152

WASHER, Lock - No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

29

Briggs & Stratton 30288

FITTING, Quick-Disconnect (Female)

$

$

Currently unavailable

30

Briggs & Stratton 48031C

CLAMP - 1/4"

$

$

Not available

31

Briggs & Stratton 22287

CAPSCREW, Hex Head - 1/4"-20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 26771

NUT, Pipe Lock - 3/4"

$

$

Currently unavailable

33

Briggs & Stratton 56160

MUFFLER, Exhaust

$1.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 33469

SPACER

$

$

Currently unavailable

35

Briggs & Stratton 50483

SCREEN, Spark Arrestor

$

$

Currently unavailable

36

Briggs & Stratton 50484

DEFLECTOR

$

$

Currently unavailable

37

Briggs & Stratton 48084

TANK, Oil Makeup

$

$

Currently unavailable

38

Briggs & Stratton 42496

SCREW, Exhaust Muffler Deflector

$

$

Currently unavailable

39

Briggs & Stratton 47662N

HOSE - 3/8" ID X 7-1/4" long

$

$

Currently unavailable

40

Briggs & Stratton 49099

FITTING, Barbed - 3/8" x 3/8"

$

$

Currently unavailable

41

Briggs & Stratton 48031E

CLAMP, Hose - 3/8"

$

$

Currently unavailable

42

Briggs & Stratton 47662AD

HOSE - 3/8" ID x 15" long

$

$

Currently unavailable

43

Briggs & Stratton 30449

CAP, Oil Makeup Tank Filler

$

$

Not available

44

Briggs & Stratton 48714

SWITCH ASSEMBLY, Low Oil Level Shutdown

$

$

Currently unavailable

45

Briggs & Stratton 27770

SCREW, Round Head Machine- No. 4-40 x 5/8"

$

$

Currently unavailable

46

Briggs & Stratton 30283

MICRO-SWITCH, Low Oil Level Shutdown

$

$

Currently unavailable

47

Briggs & Stratton 25105

SCREW (Sims) - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 46908

COVER, Low Oil Level Shutdown Switch

$

$

Currently unavailable

49

Briggs & Stratton 46509

PUMP, Oil Makeup

$

$

Currently unavailable

50

Briggs & Stratton 27771

NUT, Hex - No. 4-40

$

$

Not available

51

Briggs & Stratton 27772

WASHER, Shakeproof - No. 4

$

$

Not available

52

Briggs & Stratton 49468

PROBE, Oil Makeup

$

$

Currently unavailable

53

Briggs & Stratton 47662AA

HOSE, Fuel - 1/4" ID x 14" long

$

$

Currently unavailable

54

Briggs & Stratton 3518379

CABLE, Starter Solenoid to Motor

$

$

Currently unavailable

55

Briggs & Stratton 50907

BAFFLE, Cylinder Head - No. 1

$

$

Currently unavailable

56

Briggs & Stratton 50908

BAFFLE, Cylinder Head - No. 2

$

$

Currently unavailable

57

Briggs & Stratton 50923

SCREW, Phillips Pan Head Machine - No. 10-24 x 5/8"

$

$

Currently unavailable

58

Briggs & Stratton 49437

GASKET, Exhaust

$

$

Not available

59

Briggs & Stratton 56161

ADAPTER, Exhaust Muffler

$

$

Currently unavailable

60

Briggs & Stratton 55635

WASHER, Lock (Special) - 1/4"

$

$

Currently unavailable

61

Briggs & Stratton 36781

CAPSCREW, Socket Head - 1/4"-20 x 3/4"

$

$

Currently unavailable
