887003 - Gravely 60" Deck for Center Mount 4-Wheel Tractor (SN: 000724 - 000767) MOWER DRIVE Parts Diagram

60" Deck for Center Mount 4-Wheel Tractor

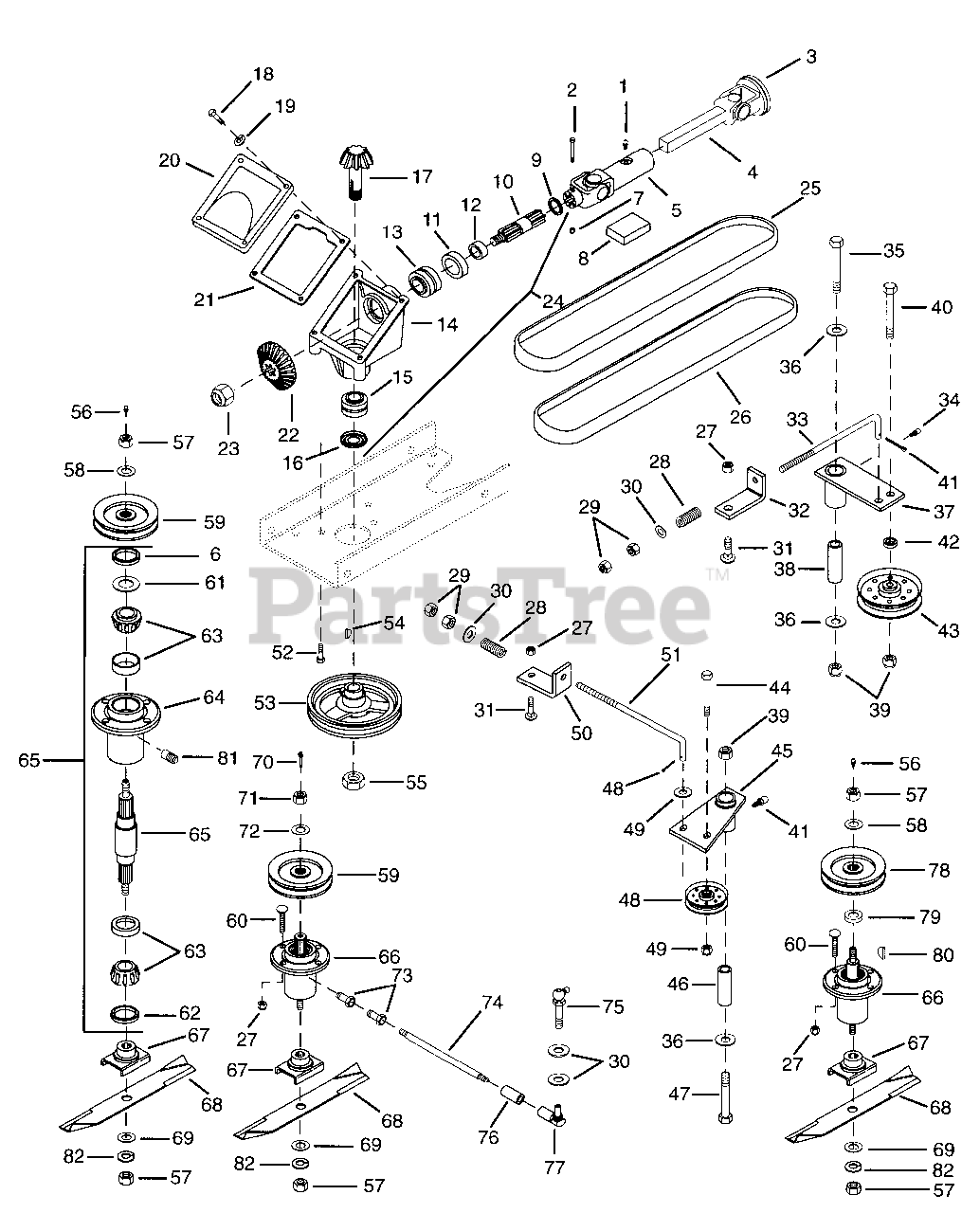

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

2

Gravely 180046

Bolt-Hex .25-20 x 2.25
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 045954

Q.D. Yoke
(Superseded to 20823200)

Note: Use As Required

$213.99

$

Usually ships in 4-12 days

0

4

Gravely 031389

Shaft, Drop Square Bar
(Superseded to 08729300)

$

$

Not available

5

Gravely 031388

Joint, U Female End
(Superseded to 08700200)

$

$

Not available

6

Gravely 05611400

Seal 1.987 x 1.500 x .313

$15.99

$

In Stock, only 1 left!

0

7

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

8

Gravely 024560

Kit, Repair U-Joint
(Superseded to 03155800)

$

$

Not available

Gravely 031828

Kit, Repair U-Joint
(Superseded to 08729700)

$86.99

$

Usually ships in 4-12 days

0

9

Gravely 014642

Ring-Retaining 1.106 x .95
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 031412

Shaft
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

11

Gravely 014646

Seal 1.250 x 1.983 x .250
(Superseded to 05613700)

$14.99

$

In Stock, only 3 left!

0

12

Gravely 014641

Bushing Flange 1.00 x 1.25 x 1.25
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

13

Gravely 014640

Bearing-Assembly 1.000 x 1.980 x 1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

14

Gravely 014636

Casting, Gear Box
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

15

Gravely 014644

Bearing-Assembly .75 x 1.781 x 1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

16

Gravely 014645

Seal 1.250 x 1.691 x .310
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

17

Gravely 045588

Shaft, Pinion Gear
(Superseded to 08790400)

$

$

Not available

18

Gravely 180016

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 5

0

19

Gravely 120380

Washer Lock .250 Reg.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

20

Gravely 010982

Cover, Gear Housing
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

21

Gravely 011231

Gasket, Gear Housing
(Superseded to 08570100)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 045587

Gear, Bevel
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

23

Gravely 456007

Nut-Locking-Nylon .75-10 Grade 2
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

24

Gravely 031410

Assembly, Drive 50" Mower
(Superseded to 08570300)

Note: (Items 9 thru 23)

$1066.99

$

Usually ships in 4-12 days

0

25

Gravely 031369

V-Belt A-Section 58.56 x .516
(Superseded to 07219600)

$79.99

$

In Stock, Qty 9

0

26

Gravely 031383

V-Belt 5L Section 70.375 x.438 x.660
(Superseded to 07219700)

$57.99

$

Usually ships in 4-12 days

0

27

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

28

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 3 left!

0

29

Gravely 120369

Nut-Hex .375-24 Grade 2
(Superseded to 06522900)

$2.49

$

In Stock, only 1 left!

0

30

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 180122

Bolt-Hex .375-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 031346

Support, Spring "B"
(Superseded to 08905100)

$16.99

$

Usually ships in 4-12 days

0

33

Gravely 021111

Rod, Idler 50 In. Mower
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

34

Gravely 179252

Pin-Cotter .06 x 1.00
(Superseded to 06707500)

$0.99

$

In Stock, only 3 left!

0

35

Gravely 180193

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$5.99

$

In Stock, only 1 left!

0

36

Gravely 120389

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 13

0

37

Gravely 031360

Weldment, Idler Pivot "B"
(Superseded to 08728500)

$

$

Not available

38

Gravely 031363

Spacer .505 x .855 x 2.50
(Superseded to 08826500)

$51.99

$

Usually ships in 4-12 days

0

39

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, Qty 20+

0

40

Gravely 180181

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

41

Gravely 014406

Fitting-Lube .25-28 x .46
(Superseded to 07012600)

$

$

Not available

42

Gravely 031368

Spacer .516 x .875 x .300
(Superseded to 09036100)

$16.99

$

Usually ships in 4-12 days

0

43

Gravely 022063

Idler-Flat-Pulley 6.75 x .510
(Superseded to 07316700)

$63.99

$

In Stock, only 3 left!

0

44

Gravely 180128

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

45

Gravely 031364

Weldment, Idler Pivot "A"
(Superseded to 08728700)

$11.99

$

Usually ships in 4-12 days

0

46

Gravely 031367

Spacer .562 x .855 x 2.18
(Superseded to 08827800)

$19.99

$

Usually ships in 4-12 days

0

47

Gravely 126803

Bolt-Round Head Square Neck .50-16 x 3.50
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

48

Gravely 021060

Pulley-Idler 4.50 x .380
(Superseded to 07314800)

$39.99

$

In Stock, Qty 9

0

49

Gravely 413534

Nut-Locking-Center .625-10 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 031345

Support, Spring "A"
(Superseded to 08727900)

$3.49

$

Usually ships in 4-12 days

0

51

Gravely 021112

Rod, Idler 40 In. Mower
(Superseded to 03351200)

$

$

Not available

52

Gravely 180173

Bolt-Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

53

Gravely 031382

Pulley, Gearbox
(Superseded to 08729100)

$

$

Not available

54

Gravely 431787

Key-Rectifier .313 x .275 x .932
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

55

Gravely 451539

Nut-Hex-Jam .750-10
(Superseded to 06537700)

$2.49

$

In Stock, Qty 19

0

56

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 3 left!

0

57

Gravely 124589

Nut-Hex .625-11 Grade 2
(Superseded to 06535600)

$2.99

$

Usually ships in 4-12 days

0

58

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .5150
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

59

Gravely 08895100

Sheave

$156.99

$

Usually ships in 4-12 days

0

60

Gravely 126406

Bolt-Round Head Square Neck .38-16 x 1.375
(Superseded to 06200416)

$3.99

$

In Stock, Qty 20+

0

61

Gravely 06426900

Washer-Flat-Steel .97 x 1.865 x .03

$4.99

$

In Stock, Qty 20+

0

62

Gravely 05613000

Seal 1.987 x 1.375 x .313

$10.99

$

In Stock, Qty 11

0

63

Gravely 038199

Assembly, Bearing Cup & Cone
(Superseded to 21245800)

$25.99

$

In Stock, Qty 14

0

64

Gravely 08894500

Bearing Housing

$

$

Not available

Gravely 08894600

Bearing Housing

$68.99

$

Usually ships in 4-12 days

0

65

Gravely 021216

Shaft, Spindle
(Superseded to 58802800)

$85.99

$

In Stock, only 3 left!

0

Gravely 031356

Shaft, Spindle
(Superseded to 08899900)

$137.99

$

Usually ships in 4-12 days

0

Gravely 034603

Shaft, Spindle
(Superseded to 58802900)

$125.99

$

Usually ships in 4-12 days

0

66

Gravely 58801800

Service Kit Spindle Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

Gravely 58801600

Service Kit Center Spindle Assembly

$

$

Not available

Gravely 58801700

Service Kit Spindle Assembly
(Superseded to 58803600)

$250.99

$

In Stock, only 1 left!

0

67

Gravely 08798300

Weldment, Blade Cradle

$155.99

$

Usually ships in 4-12 days

0

68

Gravely 025124

Blade
(Superseded to 08904600)

$34.99

$

Usually ships in 4-12 days

0

69

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, Qty 18

0

70

Gravely 022065

Bolt, Hex Spec 1/2-13 x 1.34
(Superseded to 08724300)

$27.99

$

Usually ships in 4-12 days

0

71

Gravely 120384

Washer-Lock .50 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 18

0

72

Gravely 037842

Washer-Flat-Steel 1.38 x .562 x .109
(Superseded to 06427800)

$

$

Not available

73

Gravely 144117

Elbow, Street 1/8-27
(Superseded to 07024800)

$13.99

$

Usually ships in 4-12 days

0

74

Gravely 031357

Nipple, Pipe 6.30
(Superseded to 08728400)

$19.99

$

Usually ships in 4-12 days

0

75

Gravely 273351

Fitting, Lube 65 Deg.
(Superseded to 07025400)

$

$

Not available

76

Gravely 144067

Coupling-Pipe .12-27
(Superseded to 07024600)

$

$

Not available

77

Gravely 191759

Elbow, Adaptor 90 Degrees
(Superseded to 07012300)

$17.99

$

Usually ships in 4-12 days

0

78

Gravely 08895600

Sheave

$

$

Not available

79

Gravely 019340

Bearing-Needle .688
(Superseded to 06435300)

$4.99

$

In Stock, Qty 5

0

80

Gravely 124553

Key-Feather .25 x .875 x .312
(Superseded to 06608900)

$3.99

$

In Stock, Qty 20+

0

81

Gravely 08896800

Relief Fitting

$13.99

$

Usually ships in 4-12 days

0

82

Gravely 06300700

Washer-Lock .625 x .156
(Superseded to 06309500)

$2.49

$

Usually ships in 4-12 days

0

Gravely 036799

Spring
(Superseded to 08738900)

Note: Not Shown; Use As Required

$9.49

$

In Stock, only 1 left!

0

Gravely 036800

Collar
(Superseded to 08739000)

Note: Not Shown; Use As Required

$25.99

$

Usually ships in 4-12 days

0

Gravely 036801

Ring, Snap
(Superseded to 08739100)

Note: Not Shown; Use As Required

$14.99

$

Usually ships in 4-12 days

0

Gravely 145643

Ball .375 Guard
(Superseded to 05429800)

Note: Not Shown; Use As Required

$3.49

$

Usually ships in 4-12 days

0
