9020 (1690072) - Simplicity Power Max Garden Tractor, 19.5hp Drop Housing Group (3506I05) Parts Diagram

Power Max Garden Tractor, 19.5hp

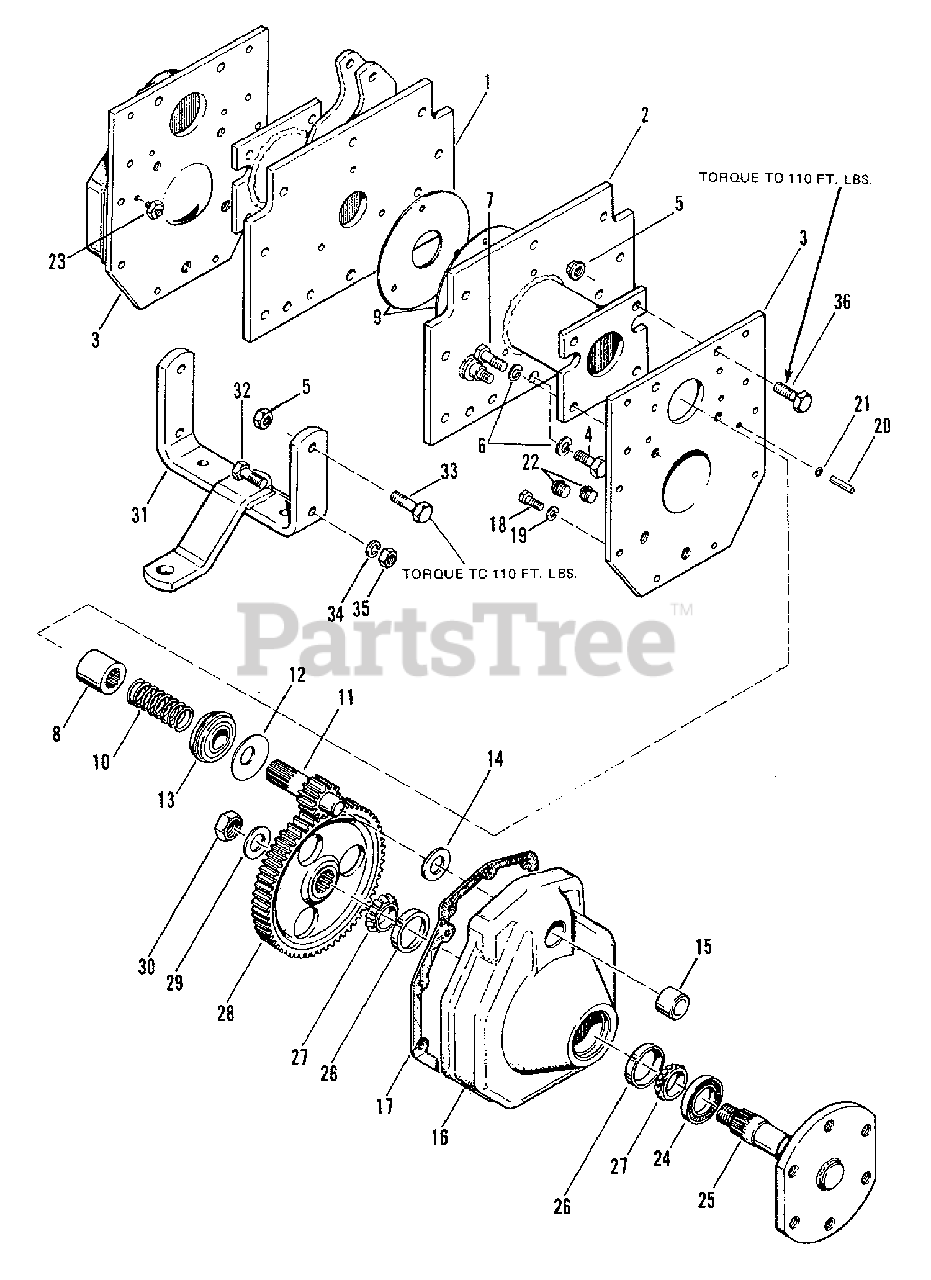

Drop Housing Group (3506I05) Parts Diagram

  • Title

1

Simplicity 176608

EXTENSION, Axle, L.H.

$

$

Not available

2

Simplicity 176609

EXTENSION, Axle, R.H.

$

$

Not available

3

Simplicity 168048

PLATE, Housing

$

$

Not available

4

Simplicity 2820328

CAPSCREW, Hex, 1/2"-13 x 1-1/2" Lg.

$

$

Not available

5

Simplicity 2830644

NUT, Hex, Lock

$

$

Not available

6

Simplicity 2816966

LOCKWASHER, 1/2"

$

$

Not available

7

Simplicity 923114

CAPSCREW, Hex, 1/2"-13 x 1" Lg.

$

$

Not available

8

Simplicity 168050

COUPLE, Axle

$

$

Not available

9

Simplicity 171562

PLATE, Shim

$

$

Not available

10

Simplicity 172498

SPRING

$

$

Not available

11

Simplicity 168053

PINION, Bull

$

$

Not available

12

Simplicity 173418

SLINGER

$

$

Not available

13

Simplicity 2168054SM

BEARING, Rear Axle

$119.99

$

Usually ships in 2-12 days

0

14

Simplicity 2168055SM

WASHER, Thrust

$

$

Not available

15

Simplicity 2168056SM

BEARING, Roller

$

$

Not available

16

Simplicity 176177

HOUSING, Drop

$

$

Not available

17

Simplicity 2168057SM

GASKET

$29.99

$

In Stock, only 2 left!

0

18

Simplicity 2821210

CAPSCREW, Hex

$

$

Not available

19

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

20

Simplicity 2818113

PIN, Roll

$

$

Not available

21

Simplicity 170837

RING, "O"

$

$

Not available

22

Simplicity 2801653

PLUG, Pipe

$

$

Not available

23

Simplicity 2172899SM

VALVE, Relieft

$14.99

$

Usually ships in 2-12 days

0

24

Simplicity 2175601SM

SEAL, Oil

$50.99

$

Usually ships in 2-12 days

0

25

Simplicity 175596

REAR AXLE ASSEMBLY

$

$

Not available

26

Simplicity 2173194SM

CUP, Bearing

$

$

Not available

27

Simplicity 2173195SM

CONE, Bearing

$43.99

$

Usually ships in 2-12 days

0

28

Simplicity 175599

GEAR, Bull

$

$

Not available

29

Simplicity 2105083

WASHER, Plain

$

$

Not available

30

Simplicity 930634

LOCKNUT, Whiz

$

$

Not available

31

Simplicity 168321

DRAWBAR

$

$

Not available

32

Simplicity 2820328

CAPSCREW, Hex, 1/2"-13 x 1-1/2" Lg.

$

$

Not available

33

Simplicity 2821525

CAPSCREW, Hex, 1/2"-13 x 1-3/4" Lg.

$

$

Not available

34

Simplicity 2816966

LOCKWASHER, 1/2"

$

$

Not available

35

Simplicity 2816951

NUT, Hex, 1/2"-13

$

$

Not available

36

Simplicity 923154

CAPSCREW, Hex, 1/2"-13 x 1-1/2" Lg.

$

$

Not available
