9020 (1690145) - Simplicity Power Max Garden Tractor, 19.5hp Speed Control Group (3506I07) Parts Diagram

Power Max Garden Tractor, 19.5hp

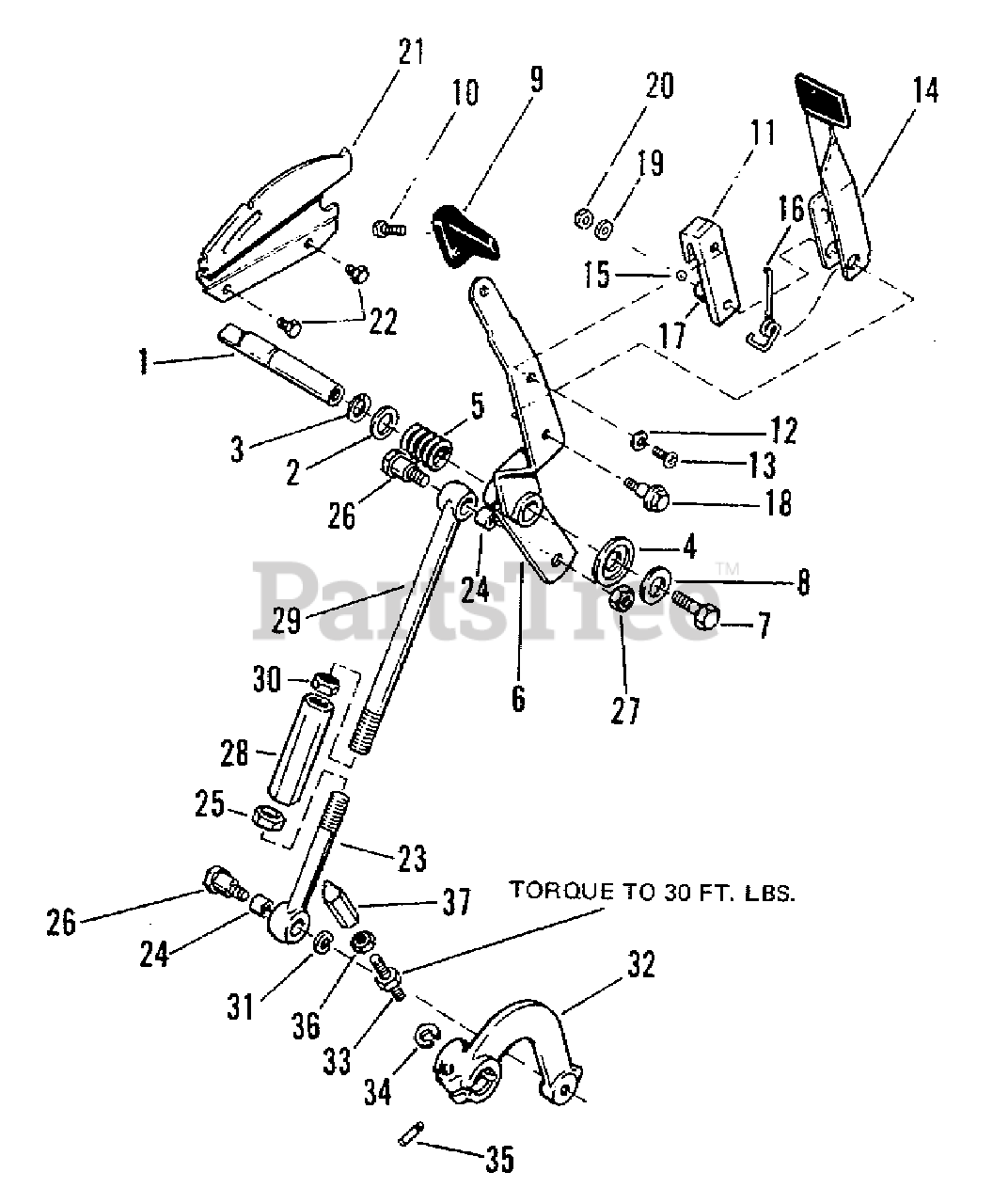

Speed Control Group (3506I07) Parts Diagram

  • Title

1

Simplicity 172167

SHAFT, Pivot

$

$

Not available

2

Simplicity 2173514

WASHER

$

$

Not available

3

Simplicity 2173515

RING, Retaining

$

$

Not available

4

Simplicity 173293

WASHER

$

$

Not available

5

Simplicity 173307

SPRING

$

$

Not available

6

Simplicity 172393

LEVER ASSEMBLY

$

$

Not available

7

Simplicity 2830579

CAPSCREW, Hex, 3/8"-16 x 1-1/4" Lg.

$

$

Not available

8

Simplicity 2157424SM

WASHER

$7.49

$

In Stock, Qty 5

0

9

Simplicity 2171165

KNOB

$

$

Not available

10

Simplicity 2825592SM

SCREW, Thread Forming, 1/4-20 x 3/4" Lg.

$2.99

$

Usually ships in 2-12 days

0

11

Simplicity 171432

CLAMP, Stop

$

$

Not available

12

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

13

Simplicity 2826025

SCREW, Phillips, 1/4"-20 x 1/2" Lg.

$

$

Not available

14

Simplicity 172399

HANDLE

$

$

Not available

15

Simplicity 2166178SM

BALL

$4.49

$

Usually ships in 2-12 days

0

16

Simplicity 2166047SM

SPRING

$

$

Not available

17

Simplicity 166063

SPACER

$

$

Not available

18

Simplicity 2166051SM

BOLT, Shoulder

$

$

Not available

19

Simplicity 2817377

WASHER, Plain, 1/4"

$

$

Not available

20

Simplicity 2823358

NUT, Hex, Lock, 1/4"-20

$

$

Not available

21

Simplicity 172400

QUADRANT

$

$

Not available

22

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

23

Simplicity 172406

BOLT, Eye

$

$

Not available

24

Simplicity 2172949

BUSHING

$

$

Not available

25

Simplicity 2108412

NUT, Hex, Jam, 1/2"-20

$

$

Not available

26

Simplicity 2108412

BOLT, Shoulder

$

$

Not available

27

Simplicity 2823428

NUT, Hex, Full Lock, 3/8"-16

$

$

Not available

28

Simplicity 172402

TURNBUCKLE

$

$

Not available

29

Simplicity 172407

BOLT, Eye

$

$

Not available

30

Simplicity 930624

NUT, Hex Jam, L.H., 1/2"-20

$

$

Not available

31

Simplicity 2816803

WASHER

$

$

Not available

32

Simplicity 176229

LEVER

$

$

Not available

33

Simplicity 106771

STUD

$

$

Not available

34

Simplicity 1916965SM

LOCKWASHER, 3/8"
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

35

Simplicity 173302

PIN

$

$

Not available

36

Simplicity 930646

NUT, 3/8"-16

$

$

Not available

37

Simplicity 176308

DETENT

$

$

Not available
