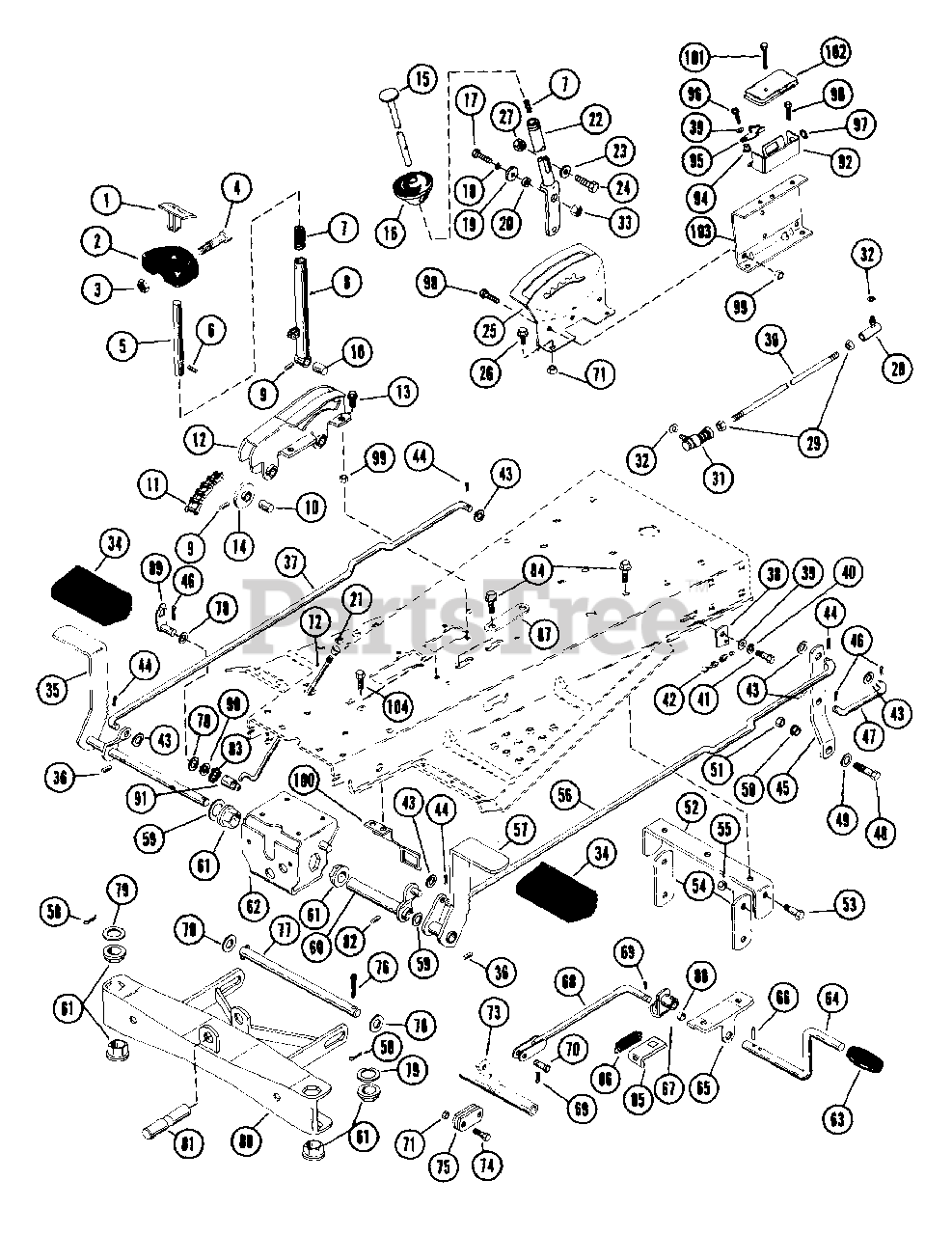

912001 - Ariens Fairway 26" Rear-Engine Rider, 5hp Tecumseh (SN: 000001 & Above) Control And Linkage Parts Diagram

Fairway 26" Rear-Engine Rider, 5hp Tecumseh

Control And Linkage Parts Diagram

  • Title
1

Ariens 02511500

T PLUNGER

$

$

Not available

2

Ariens 02511400

T HANDLE

$35.99

$

In Stock, only 1 left!

0

3

Ariens 06504100

NUT-LK TOP 10-24 PL

$1.99

$

Usually ships in 4-12 days

0

4

Ariens 05911600

BLT-HEX 10-24X1.25 FHPL
(Superseded to 06111000)

$

$

Not available

$

$

Not available

6

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

7

Ariens 08301500

SG-COMP ??X.44X?? WLD 10

$5.99

$

Usually ships in 4-12 days

0

8

Ariens 02604900

MOWER LIFT ARM

$

$

Not available

9

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 16

0

$

$

Not available

11

Ariens 02601300

ROLLER CHAIN

$

$

Not available

12

Ariens 02603100

MOWER HEIGHT QUADRANT
(Superseded to 01228400)

$

$

Not available

13

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 02606800

CHAIN ROLLER

$

$

Not available

15

Ariens 00324700

SHIFT RELEASE HANDLE

$5.99

$

Usually ships in 4-12 days

0

16

Ariens 01024800

SHIFT BALL

$

$

Not available

17

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

21

$

$

Not available

22

Ariens 00308900

SHIFT LEVER

$

$

Not available

23

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

24

Ariens 05907200

BLT-HEX .25-20X1.25

$

$

Not available

25

Ariens 01219700

SHIFT CONTROL SEGMENT

$

$

Not available

26

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

27

Ariens 06507000

NUT-LK TOP .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 00308600

BALL JOINT
(Superseded to 04110300)

$15.99

$

Usually ships in 4-12 days

0

29

Ariens 06503100

NUT-HEX .312-24 PL
(Superseded to 06529500)

$1.99

$

Usually ships in 4-12 days

0

30

Ariens 01217200

SHIFT LINK

$

$

Not available

31

Ariens 00306000

SNAP IN BALL JOINT

$

$

Not available

32

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

34

Ariens 07502900

PEDAL COVER

$

$

Not available

35

Ariens 02601900

BRAKE LEVER

$

$

Not available

36

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

37

Ariens 01220000

BRAKE ROD

$

$

Not available

38

Ariens 01210900

BLADE BRAKE

$

$

Not available

39

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

41

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 02606500

CHAIN
(Superseded to 01223100)

$

$

Not available

43

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

44

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

45

Ariens 01221200

CLUTCH LINK BAR

$

$

Not available

46

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

47

Ariens 01221300

CLUTCH LINKAGE ROD

$

$

Not available

48

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

50

Ariens 00206900

SHOULDER SPACER

$

$

Not available

51

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 01205000

HANGER BRACKET

$

$

Not available

53

Ariens 00331600

SHOULDER BOLT
(Superseded to 07000034)

$3.99

$

In Stock, only 2 left!

0

54

Ariens 01212400

HANGER LINK

$

$

Not available

55

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

56

Ariens 01219500

CLUTCH ROD

$

$

Not available

57

Ariens 02601800

CLUTCH BRAKE LEVER

$

$

Not available

58

Ariens 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

59

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

60

Ariens 02602000

CLUTCH BRAKE LEVER

$

$

Not available

61

Ariens 01212800

FLANGE BUSHING

$6.49

$

Usually ships in 4-12 days

0

62

Ariens 02601600

AXLE SUPPORT

$

$

Not available

63

$

$

Not available

64

Ariens 02600900

MOWER CLUTCH PEDAL

$

$

Not available

65

Ariens 01204600

MOWER CLUTCH BRACKET

$

$

Not available

66

Ariens 05801600

PIN-ROLL .188X1.00
(Superseded to 02470401)

$2.49

$

In Stock, only 2 left!

0

67

Ariens 02607700

OVER CENTER LEVER

$

$

Not available

68

Ariens 01221100

MOWER CLUTCH LINK
(Superseded to 01225300)

$

$

Not available

69

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

70

Ariens 01215100

CLEVIS PIN

$

$

Not available

71

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

72

Ariens 01221900

PARKING BRAKE ROD

$

$

Not available

73

Ariens 01210800

MOWER CLUTCH LEVER

$

$

Not available

74

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

75

Ariens 01204400

FRONT LINK

$

$

Not available

76

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

77

Ariens 01206700

HANGER PIN

$

$

Not available

78

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

79

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

80

Ariens 02601500

FRONT AXLE

$

$

Not available

81

Ariens 02601700

AXLE PIVOT PIN

$

$

Not available

82

Ariens 05800500

PIN-ROLL .188X.88

$1.99

$

In Stock, only 3 left!

0

83

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

84

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.99

$

Usually ships in 4-12 days

0

85

Ariens 02607600

SPRING CLIP

$

$

Not available

86

Ariens 08301100

SG-TENS .062X.437X4.81 WLD 6

$14.99

$

Usually ships in 4-12 days

0

87

Ariens 01209000

GUIDE PLATE

$

$

Not available

88

$

$

Not available

89

Ariens 01220600

BRAKE LATCH
(Superseded to 01224600)

$

$

Not available

90

Ariens 06403800

WSHR-FL-STL .505X.875X.024 PL

$2.49

$

In Stock, only 2 left!

0

91

Ariens 01220500

BRAKE RELEASE LEVER
(Superseded to 01224500)

$

$

Not available

92

Ariens 02517400

SWITCH HOUSING

$

$

Not available

93

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

94

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

95

Ariens 02517500

CAM NO SCRAP

$

$

Not available

96

Ariens 07002700

BLT-SERHFWH .31-18X.75 PL

$

$

Not available

97

Ariens 07502600

GROMMET, .31 ID

$

$

Not available

98

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

99

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

100

Ariens 01220900

SWITCH BRACKET

$

$

Not available

101

Ariens 07403600

SCR-TAP 12-14X1.25 CROVH PL 1A

$

$

Not available

102

$

$

Not available

103

Ariens 01220100

SWITCH BRACKET
(Superseded to 01225000)

$

$

Not available

104

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0
