915280 (ZTX Stealth 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 & Above) Fuel System Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

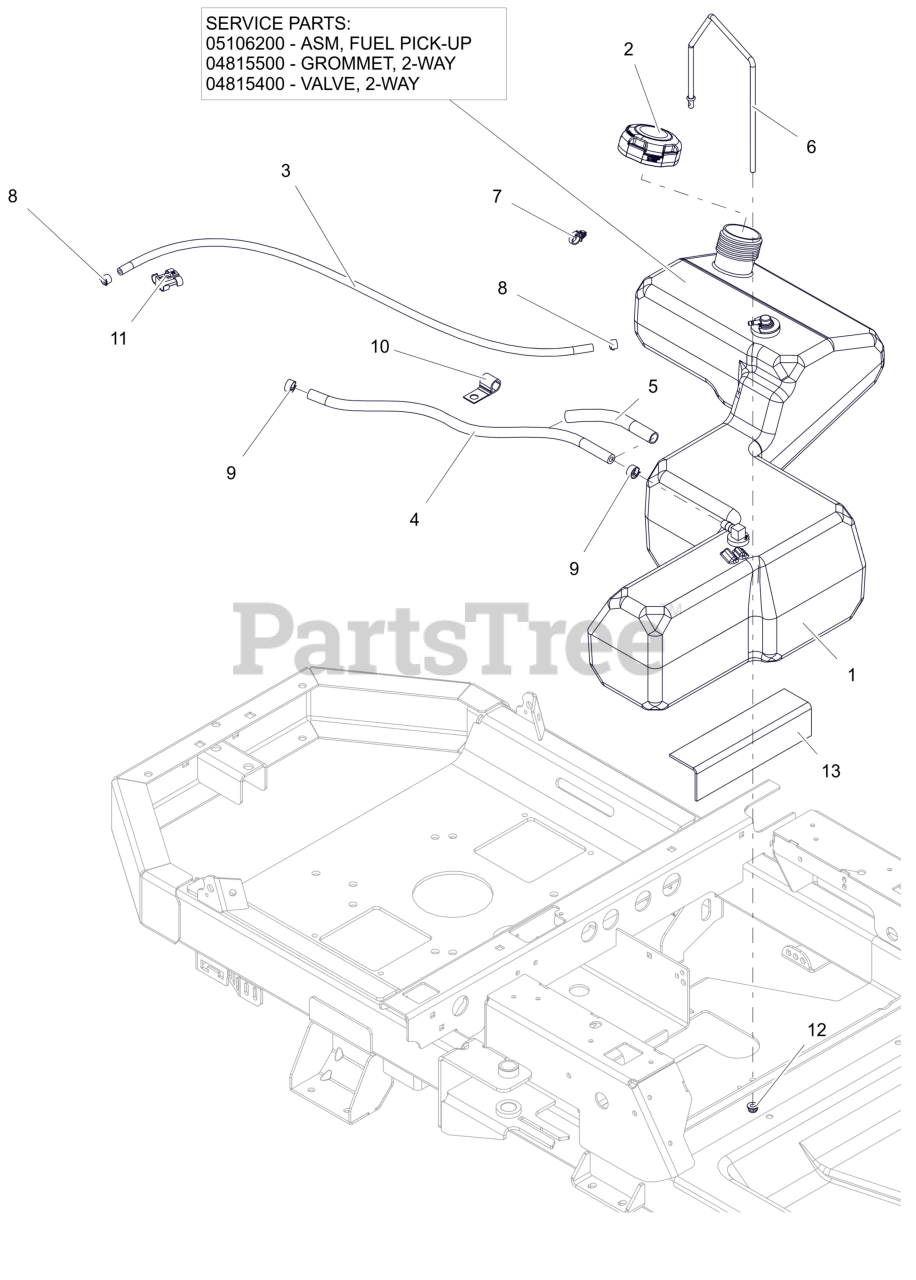

Fuel System Parts Diagram

  • Title

1

Gravely 09167200

ASM, FUEL TANK-IKON

$135.99

$

Usually ships in 4-12 days

0

1

Gravely 05106200

ASM, IKON FUEL PICK-UP

Note: Component Service Part

$29.99

$

Usually ships in 4-12 days

0

1

Gravely 04815500

GROMMET, 2-WAY
(Superseded to 04082700)

Note: Component Service Part

$3.99

$

In Stock, Qty 20+

0

1

Gravely 04815400

VALVE, 2-WAY

Note: Component Service Part

$19.99

$

In Stock, only 4 left!

0

2

Gravely 09190200

CAP-FUEL- 2.25 RATCHET INLET V

$23.99

$

Usually ships in 4-12 days

0

3

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

$3.49

$

Usually ships in 4-12 days

0

4

Gravely 03278100

1 INCH OF HOSE, .25 LOW-PERM BULK GAS

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05118500

SLEEVE, ANTI ABRASION .5" X .064" WALL

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 05099867

BRKT, FUEL

$

$

Not available

7

Gravely 00367900

ROUTING CLIP (1/2" ID)

$1.49

$

In Stock, only 1 left!

0

8

Gravely 04097700

CLAMP-HOSE, SPRING .188

$1.49

$

Usually ships in 4-12 days

0

9

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 7

0

10

Gravely 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 07001712

CLIP, T, .38-.50

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0

13

Gravely 04864600

PAD, RUBBER-TANK

$5.99

$

Usually ships in 4-12 days

0
