915280 (ZTX Stealth 52) - Gravely 52" Zero-Turn Mower, 23hp Kawasaki FR (SN: 000101 & Above) Seat Parts Diagram

52" Zero-Turn Mower, 23hp Kawasaki FR

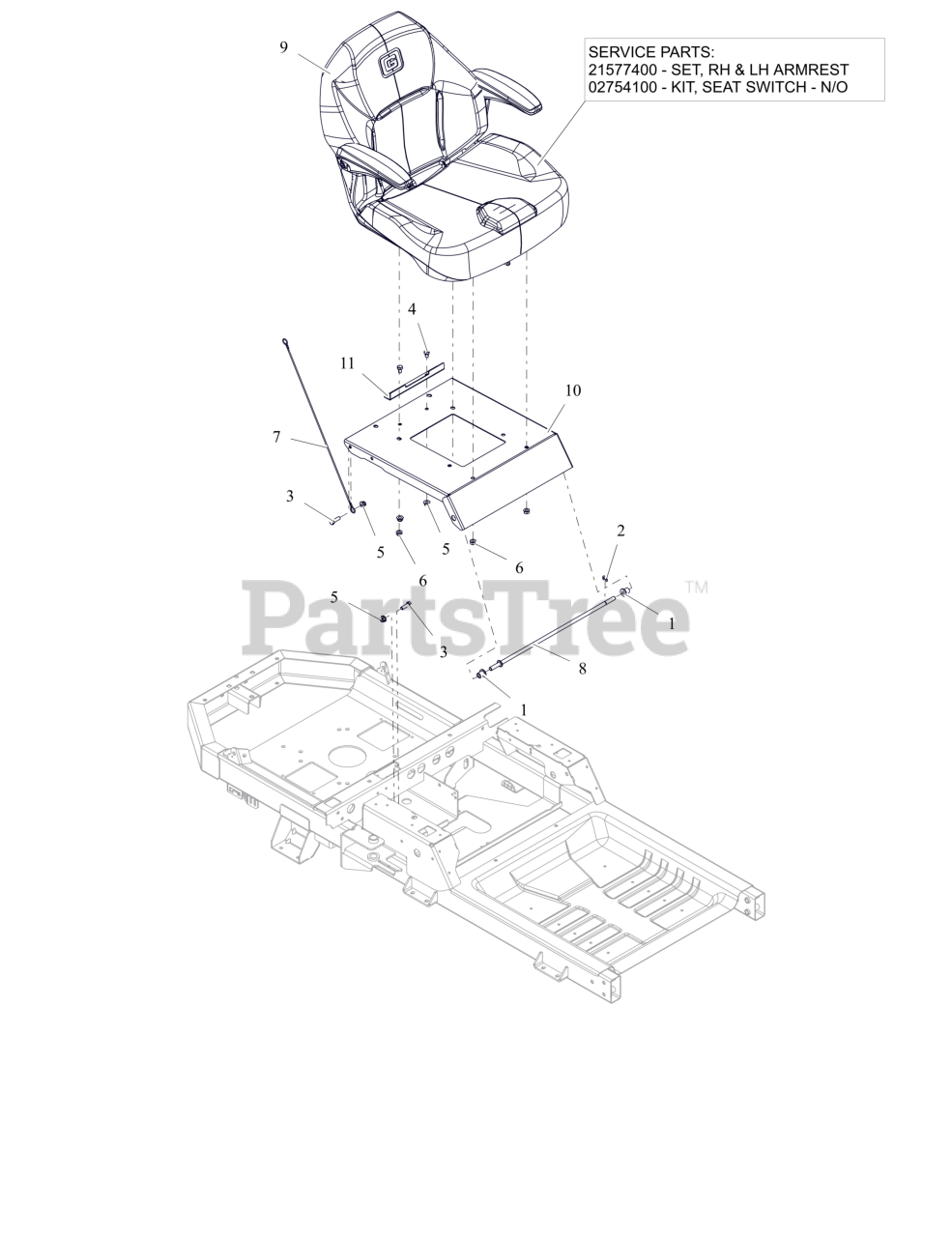

Seat Parts Diagram

  • Title

1

Gravely 05501231

BSHG-FLG .38X.580X.667X.750

$2.99

$

In Stock, Qty 12

0

2

Gravely 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 15

0

3

Gravely 05901701

BLT,HEX .31-18X1.00 G5 ZCC

$1.49

$

In Stock, only 3 left!

0

4

Gravely 05901904

BLT, HEX .31-18X.50 GR5 ZCC

$1.49

$

In Stock, Qty 15

0

5

Gravely 06500809

NUT,NYL-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 6

0

6

Gravely 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$0.99

$

Usually ships in 4-12 days

0

7

Gravely 06900623

LANYARD, SEAT CABLE .093X19.5

$10.99

$

In Stock, only 1 left!

0

8

Gravely 09448000

ROD- SEAT PIVOT

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 09476200

SEAT- ZTX SPECIAL EDITION

$465.99

$

Usually ships in 4-12 days

0

9

Gravely 21577400

SET, RH & LH ARMREST

Note: Component Service Part

$

$

Currently unavailable

9

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: Component Service Part

$9.49

$

In Stock, Qty 15

0

10

Gravely 09654742

PLATE- SEAT - LIMITED

$74.99

$

Usually ships in 4-12 days

0

11

Gravely 09676042

STOP- SEAT SLIDE

$17.99

$

Usually ships in 4-12 days

0
