915323 - Ariens Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton (SN: 062000 & Above) Electrical System Parts Diagram

Zoom 42" Zero-Turn Mower, 18hp Briggs & Stratton

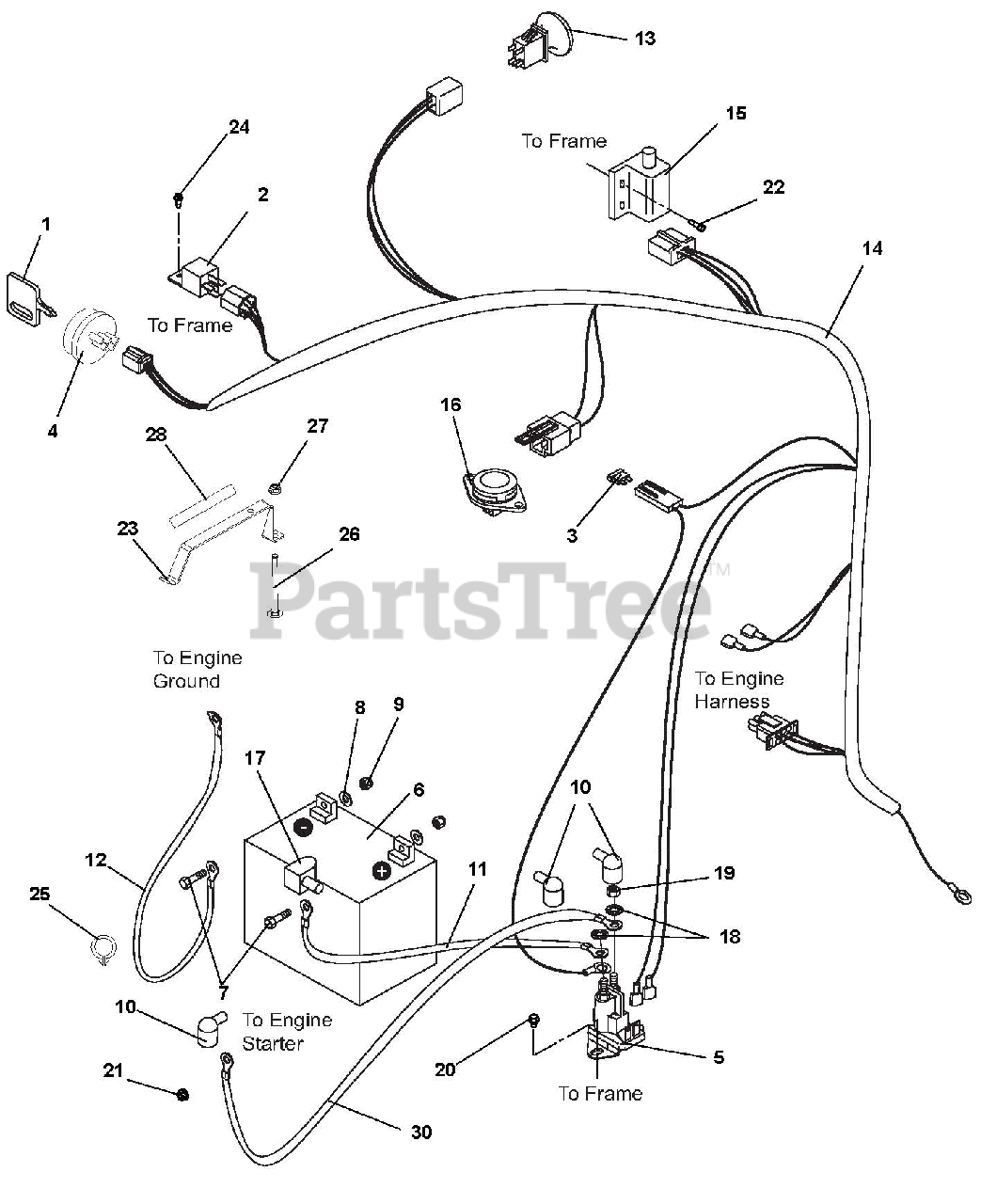

Electrical System Parts Diagram

  • Title

1

Ariens 04986400

KEY, IGNITION

$7.99

$

In Stock, Qty 6

0

2

Ariens 03042800

RELAY
(Superseded to 00432101)

$20.99

$

In Stock, Qty 16

0

3

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, Qty 9

0

4

Ariens 03290500

KEYSWITCH-IGNITION 3 POS

$17.99

$

In Stock, Qty 7

0

5

Ariens 04781700

SOLENOID, STARTER (SEALED)

$47.99

$

Usually ships in 4-12 days

0

6

Ariens 04738800

BATTERY, 12V 12A-190CCA

$116.99

$

In Stock, Qty 19

0

7

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 10

0

8

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 14

0

9

Ariens 06500921

NUT-KEPS .250-20 ZCC

$1.49

$

In Stock, only 3 left!

0

10

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

11

Ariens 04787400

CABLE,POS W/2 1/4 RING 15.0 LG

$9.99

$

Usually ships in 4-12 days

0

12

Ariens 04249900

CABLE, NEGATIVE 26" 6 GA.

$34.99

$

In Stock, only 1 left!

0

13

Ariens 04399600

SWITCH, CLUTCH (YELLOW)

$21.99

$

In Stock, Qty 10

0

14

Ariens 05099000

HARNESS, ZOOM STIGA/CE

$

$

Not available

15

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$15.99

$

In Stock, Qty 5

0

16

Ariens 03654200

SWITCH- SEAT

$13.99

$

In Stock, only 1 left!

0

17

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0

18

Ariens 06300118

WSHR,LK-EXT.262X.502X.026 ZCC

$0.99

$

In Stock, only 2 left!

0

19

Ariens 06500925

NUT-STD M6-1.0 ZCC

$0.99

$

In Stock, only 2 left!

0

20

Ariens 07400125

SCR,TAP .25-20X.375 HWH TR ZCC

$0.99

$

In Stock, only 2 left!

0

21

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 12

0

22

Ariens 07400038

SCR- 12-14X.75 HX W/HD TEK ZC

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 04385351

HOLDDOWN, BATTERY, U1&190CCA

$22.99

$

Usually ships in 4-12 days

0

24

Ariens 07400130

SCR,TAP #10-24X.50 HWH TR ZCC

$2.49

$

In Stock, Qty 6

0

25

Ariens 00390100

WIRE CLIP

$3.49

$

Usually ships in 4-12 days

0

26

Ariens 06200308

BLT, RHSN .25-20X4.50 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

27

Ariens 06500813

NUT,NYL-FLG .25-20 GF ZCC

$1.49

$

In Stock, Qty 12

0

28

Ariens 07800336

DECAL, U1 BATTERY REPLACEMENT

$2.49

$

Usually ships in 4-12 days

0

29

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

30

Ariens 04783400

CABLE,POS W/(2)1/4 RING 21.5LG

$9.49

$

Usually ships in 4-12 days

0
