917.250510 - Craftsman Lawn Tractor (1999 & Before) GOVERNOR Parts Diagram

Lawn Tractor

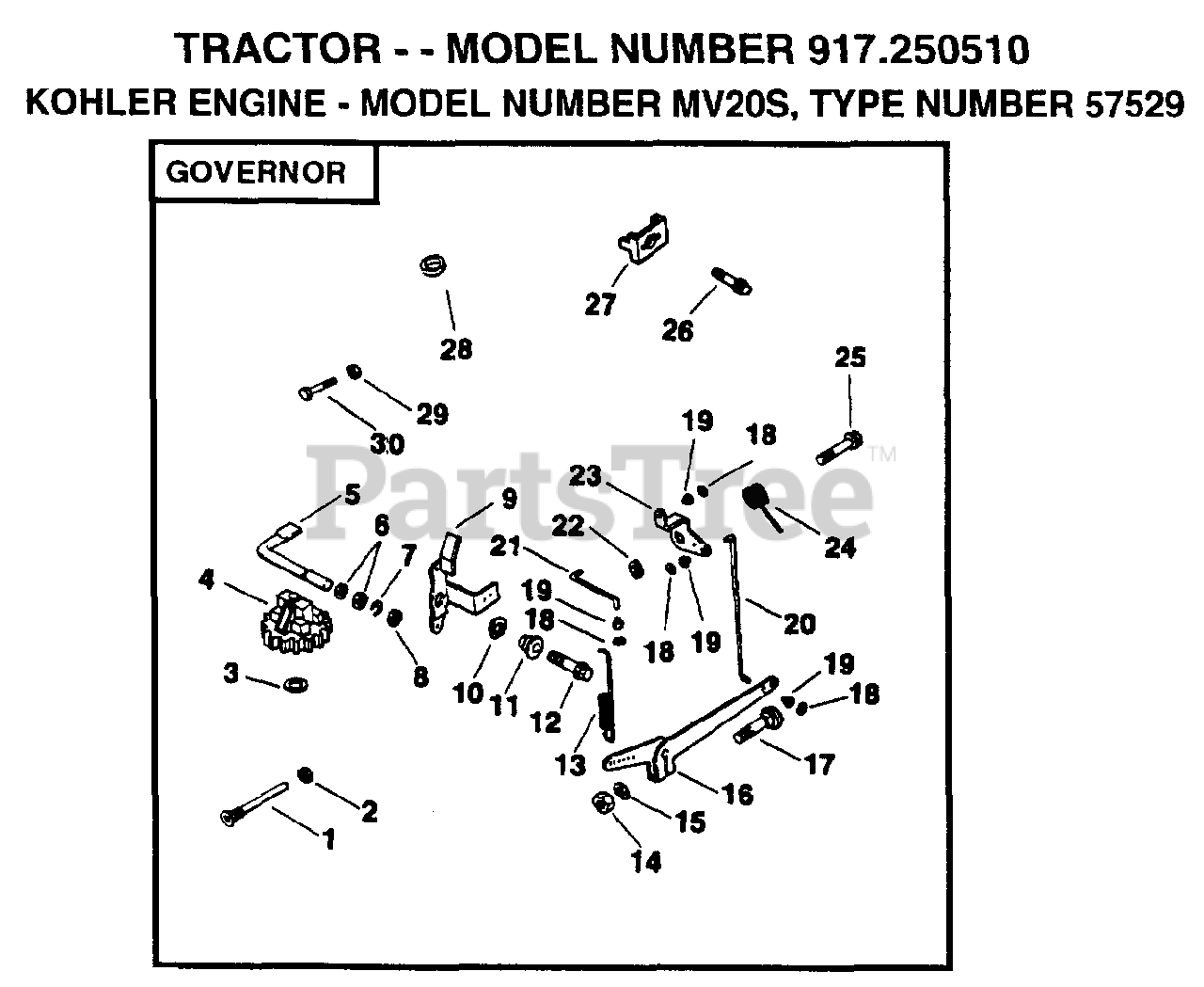

GOVERNOR Parts Diagram

  • Title

1

Kohler 231355

PIN
(Superseded to 231355-S)

$10.99

$

Usually ships in 2-5 days

0

2

Kohler X-25-12

WASHER
(Superseded to X-25-12-S)

$3.49

$

In Stock, only 2 left!

0

3

Kohler 237022

WASHER
(Superseded to 237022-S)

$7.49

$

Usually ships in 2-5 days

0

4

Kohler A-235743-S

KIT

$78.99

$

Usually ships in 2-5 days

0

5

Electrolux/AYP 52-078-04

SHAFT

$

$

Not available

6

Kohler X-25-102

WASHER
(Superseded to X-25-102-S)

$2.49

$

In Stock, Qty 10

0

7

Kohler X-269-28

RETAINER
(Superseded to X-269-28-S)

$3.99

$

Usually ships in 2-5 days

0

8

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

9

Electrolux/AYP 52-090-23

LEVER

$

$

Not available

10

Kohler 277341

WASHER
(Superseded to 277341-S)

$7.49

$

Usually ships in 2-5 days

0

11

Electrolux/AYP 52-158-07

BUSHING

$

$

Not available

12

Electrolux/AYP 25-086-15

SCREW, 1/4-20 X 1

$

$

Not available

13

Electrolux/AYP 52-089-07

SPRING

$

$

Not available

14

Kohler X-81-1

NUT
(Superseded to 25 100 20-S)

$3.49

$

In Stock, only 1 left!

0

15

Kohler X-25-72

WASHER
(Superseded to X-25-72-S)

$3.99

$

In Stock, Qty 11

0

16

Electrolux/AYP 52-186-09

ARM

$

$

Not available

17

Electrolux/AYP 52-211-04

SCREW

$

$

Not available

18

Electrolux/AYP 25-141-03

RING

$

$

Not available

19

Electrolux/AYP 25-158-08

BUSHING

$

$

Not available

20

Electrolux/AYP 52-079-07

LINKAGE

$

$

Not available

21

Electrolux/AYP 52-079-06

LINKAGE

$

$

Not available

22

Kohler X-25-63

WASHER, PLAIN 1/4
(Superseded to X-25-63-S)

$2.49

$

In Stock, only 4 left!

0

23

Electrolux/AYP 52-090-14

LEVER

$

$

Not available

24

Electrolux/AYP 52-089-08

SPRING

$

$

Not available

25

Electrolux/AYP 25-086-21

SCREW, HEX 1/4-20 X 5/8

$

$

Not available

26

Kohler 235778

CLAMP
(Superseded to 235778-S)

$10.99

$

Usually ships in 2-5 days

0

27

Kohler X-67-97

SCREW
(Superseded to 25 086 109-S)

$3.49

$

Usually ships in 2-5 days

0

28

Electrolux/AYP 25-431-01

BUSHING

$

$

Not available

29

Kohler X-70-3

NUT, HEX #10-32
(Superseded to X-70-3-S)

$3.49

$

In Stock, only 1 left!

0

30

Electrolux/AYP 52-086-05

SCREW

$

$

Not available

Electrolux/AYP 52-755-80

KIT, SPEED CONTROL

$

$

Not available
