917.250510 - Craftsman Lawn Tractor (1999 & Before) PISTON & ROD Parts Diagram

Lawn Tractor

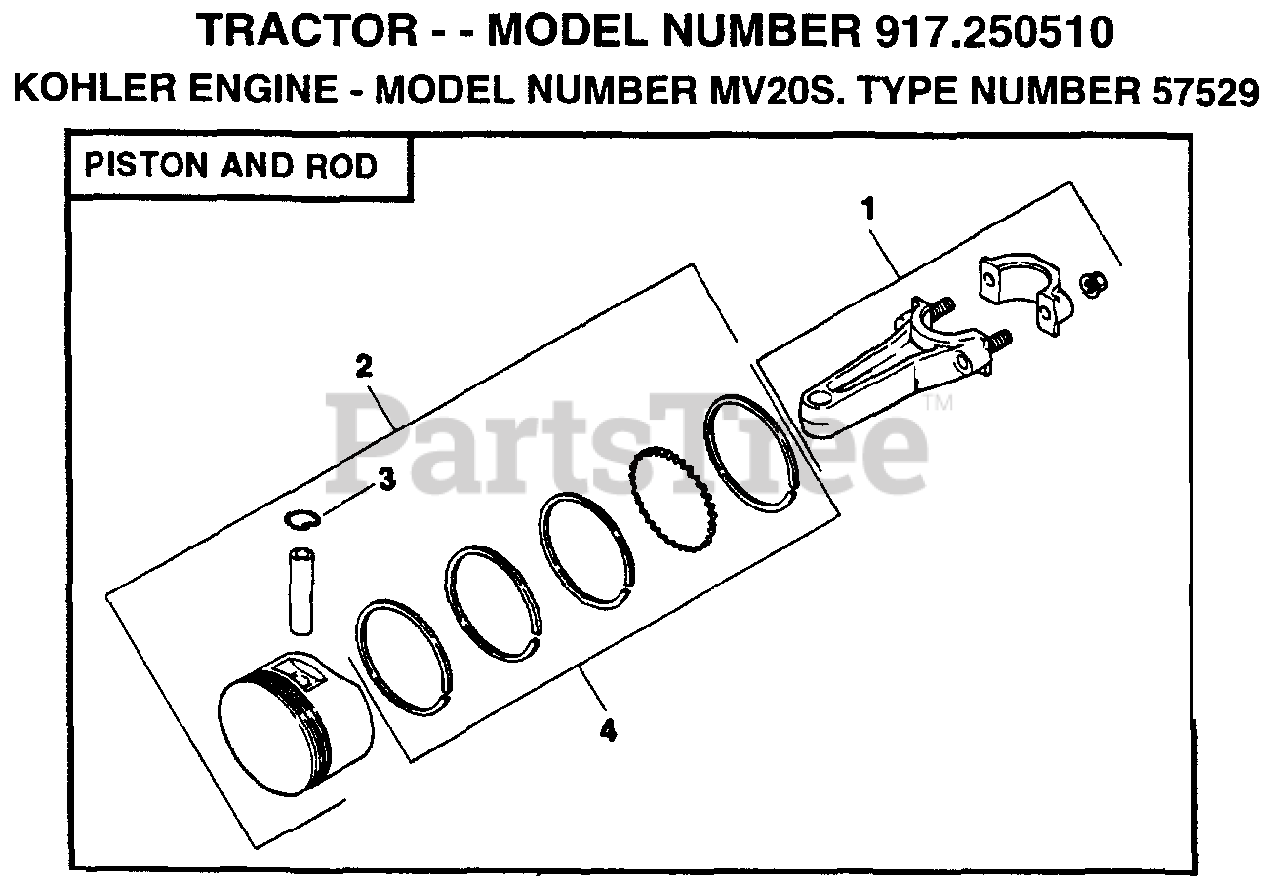

PISTON & ROD Parts Diagram

  • Title

1

Electrolux/AYP 52-067-71

CONNECTING ROD, STANDARD

$

$

Not available

1

Electrolux/AYP 52-067-71

CONNECTING ROD, STANDARD

$

$

Not available

2

Electrolux/AYP 52-874-16

PISTON WITH RING SET, STANDARD

$

$

Not available

2

Electrolux/AYP 52-874-17

PISTON WITH RING SET .003"

$

$

Not available

2

Electrolux/AYP 52-874-18

PISTON WITH RING SET .010"

$

$

Not available

2

Electrolux/AYP 52-874-19

PISTON WITH RING SET .020"

$

$

Not available

2

Electrolux/AYP 52-874-20

PISTON WITH RING SET .030"

$

$

Not available

3

Electrolux/AYP 52-141-01

RETAINER, PISTON PIN

$

$

Not available

4

Electrolux/AYP 52-108-09

RING SET, .003"

$

$

Not available

4

Electrolux/AYP 52-108-10

RING SET, .010"

$

$

Not available

4

Electrolux/AYP 52-108-11

RING SET, 020"

$

$

Not available

4

Electrolux/AYP 52-108-12

RING SET, .030"

$

$

Not available

Electrolux/AYP 52-755-94

GASKET SET

$

$

Not available

Electrolux/AYP 82-522-47

SHORT BLOCK

$

$

Not available
