924071 (ST 1136) - Ariens 36" Snow Blower, 11hp Briggs & Stratton (SN: 000101 - 001700) Sno-Thro 36" Parts Diagram

36" Snow Blower, 11hp Briggs & Stratton

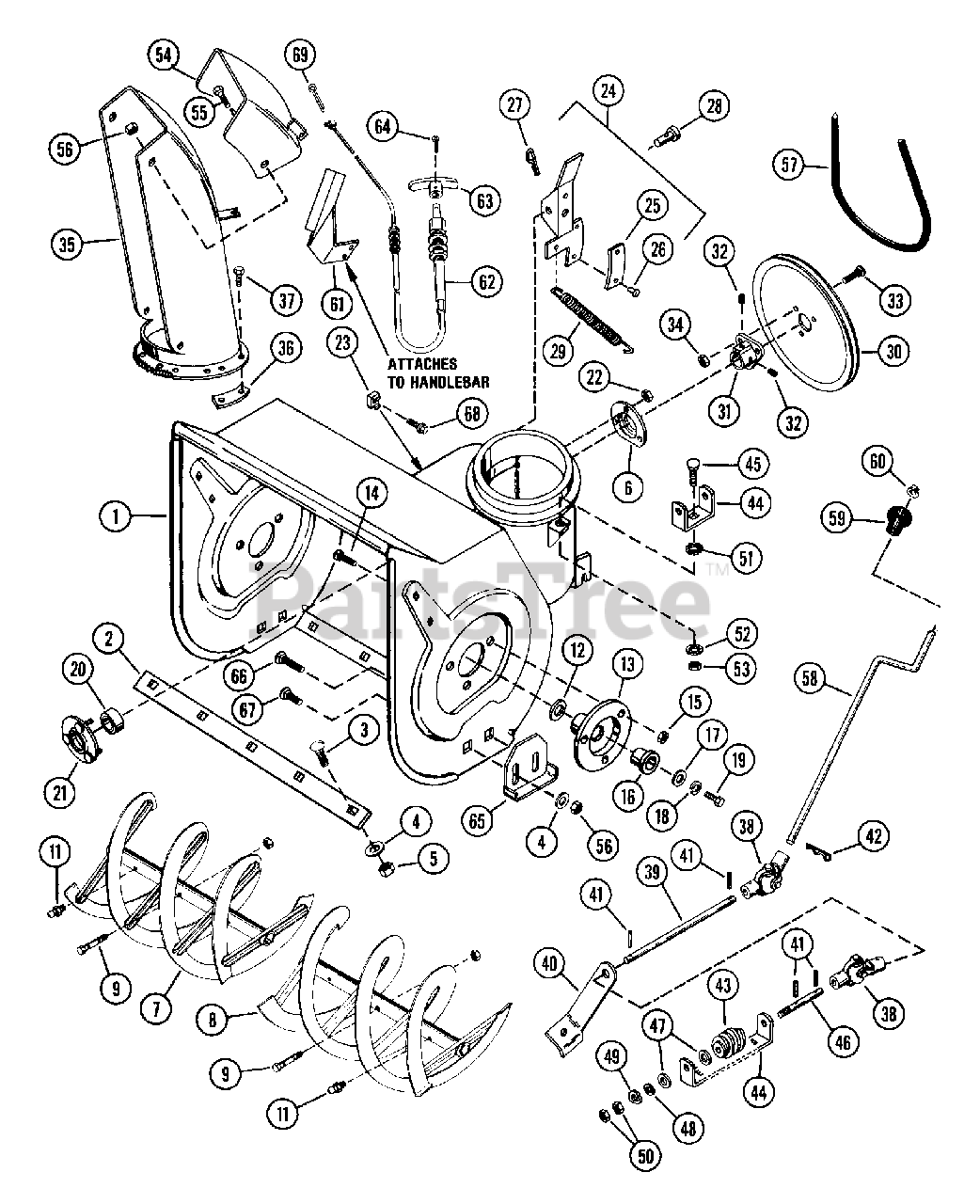

Sno-Thro 36" Parts Diagram

  • Title

1

Ariens 02449800

HOUSING, BLOWER - 36 INCH
(Superseded to 52410200)

$

$

Not available

2

Ariens 03519200

SCRAPER BLADE 36"
(Superseded to 03519259)

$62.99

$

In Stock, only 1 left!

0

3

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 6

0

4

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 03185900

BEARING FLANGE

$22.99

$

In Stock, only 3 left!

0

7

Ariens 53503400

RAKE, RIGHT-36"(1ID X 15.75OD)
(Superseded to 52412600)

Note: (INCLUDES ZERKS)

$

$

Not available

8

Ariens 53503500

RAKE, LEFT-36"(1"ID X 15.75OD)
(Superseded to 52412500)

Note: (INCLUDES ZERKS)

$

$

Not available

9

Ariens 51001500

SHEAR BOLT SERVICE ASSEMBLY

$4.99

$

In Stock, Qty 6

0

11

Ariens 02209300

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available

12

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 10

0

13

Ariens 02437400

BEARING SUPPORT
(Superseded to 05063300)

$28.99

$

In Stock, only 2 left!

0

14

Ariens 07005800

BLT-SERNK SL .25-20X.50 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

15

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

16

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 17

0

17

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

Usually ships in 4-12 days

0

18

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.99

$

In Stock, only 1 left!

0

19

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

20

Ariens 05405200

BRG-BALL 1.0X2.0X.56
(Superseded to 05416000)

$14.99

$

Usually ships in 4-12 days

0

21

Ariens 03186000

BEARING FLANGE

$45.99

$

Usually ships in 4-12 days

0

22

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 07002600

NUT-RETNR .38-16 TINRMAN

$9.49

$

In Stock, Qty 8

0

24

Ariens 62403500

BRAKE ARM ASSEMBLY
(Superseded to 52404800)

Note: (CONSISTS OF NO.24,25,26)

$28.99

$

In Stock, only 1 left!

0

25

Ariens 02217800

BRAKE LINING

$9.49

$

In Stock, only 1 left!

0

26

Ariens 06806700

RVT-TBLR .187X.437 RH ST PL

$1.49

$

In Stock, Qty 15

0

27

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 10

0

28

Ariens 02448100

PIN-CLEV .371X1.16 YWZC

$3.49

$

Usually ships in 4-12 days

0

29

Ariens 08316400

SG-TENS .062X.56X8.0 WLD 11
(Superseded to 08300538)

$11.99

$

In Stock, Qty 11

0

30

Ariens 07307000

PLY-V 9.0 X 1.25 3BLT

$34.99

$

In Stock, Qty 6

0

31

Ariens 02438900

HUB

$113.99

$

In Stock, Qty 5

0

32

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

33

Ariens 07006000

BLT-SERRDHD SL .31-18X.87 PL
(Superseded to 07028700)

$5.99

$

In Stock, Qty 13

0

34

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, only 4 left!

0

35

Ariens 02449900

DISCHARGE CHUTE - 36 IN
(Superseded to 02449959)

$216.99

$

Usually ships in 4-12 days

0

36

Ariens 01043800

CHUTE CLAMP
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

37

Ariens 07405400

SCR-TAP 10-24X.375 HWH PL TR
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

38

Ariens 62406500

UNIVERSAL JOINT ASSY
(Superseded to 02470400)

$129.99

$

Usually ships in 4-12 days

0

39

Ariens 02450400

ROD

$

$

Not available

40

Ariens 02450300

CHUTE CRANK BRACKET

$

$

Not available

41

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 7

0

42

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

43

Ariens 02450000

WORM GEAR L.H.

$45.99

$

Usually ships in 4-12 days

0

44

Ariens 02212300

WORM CLEVIS

$15.99

$

Usually ships in 4-12 days

0

45

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 6

0

46

Ariens 02451400

WORM SHAFT

$

$

Not available

47

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 14

0

48

Ariens 06406700

WSHR-FL-STL .390X.875X.18 PL
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

49

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

50

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, only 2 left!

0

51

Ariens 06303500

WSHR-LK-EXT .375X.035 PL
(Superseded to 06308700)

$1.99

$

Usually ships in 4-12 days

0

52

Ariens 06302300

WSHR-LK .313X.062
(Superseded to 06310600)

$5.99

$

In Stock, only 1 left!

0

53

Ariens 06510500

NUT-JAM .50-20 LH THD PL
(Superseded to 06538300)

$8.99

$

In Stock, only 2 left!

0

54

Ariens 03006000

CHUTE DEFLECTOR
(Superseded to 53114400)

$

$

Not available

55

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

56

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

57

Ariens 07213000

V-BELT, 4L-RAW EDGE

$31.99

$

In Stock, Qty 8

0

58

Ariens 02450800

CHUTE CONTROL CRANK

$

$

Not available

59

Ariens 07508300

KNOB

$13.99

$

In Stock, only 2 left!

0

60

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 7

0

61

Ariens 02453500

BRACKET - DEFLECTOR CONTROL

$

$

Not available

62

Ariens 06913700

CONTROL CABLE
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

63

Ariens 07513700

TEE HANDLE

$47.99

$

Usually ships in 4-12 days

0

64

Ariens 06106500

SCR-MCH 10-32X.50 SLPAN SS

$2.49

$

Usually ships in 4-12 days

0

65

Ariens 02449400

RUNNER - SKID SHOE
(Superseded to 03075559)

$37.99

$

In Stock, Qty 6

0

66

Ariens 06201300

BLT-RDHDSQSHNK .38-16X1.00 PL
(Superseded to 06212000)

$1.49

$

In Stock, Qty 18

0

67

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

68

Ariens 07003100

BLT-SCRHFWH .38-16X.75 PL
(Superseded to 07028500)

$1.49

$

Usually ships in 4-12 days

0

69

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 9

0
