924080 (TT 8) - Ariens Snow Blower, 8hp Tecumseh (SN: 000101 - 000235) Alternator / Headlight Parts Diagram

Snow Blower, 8hp Tecumseh

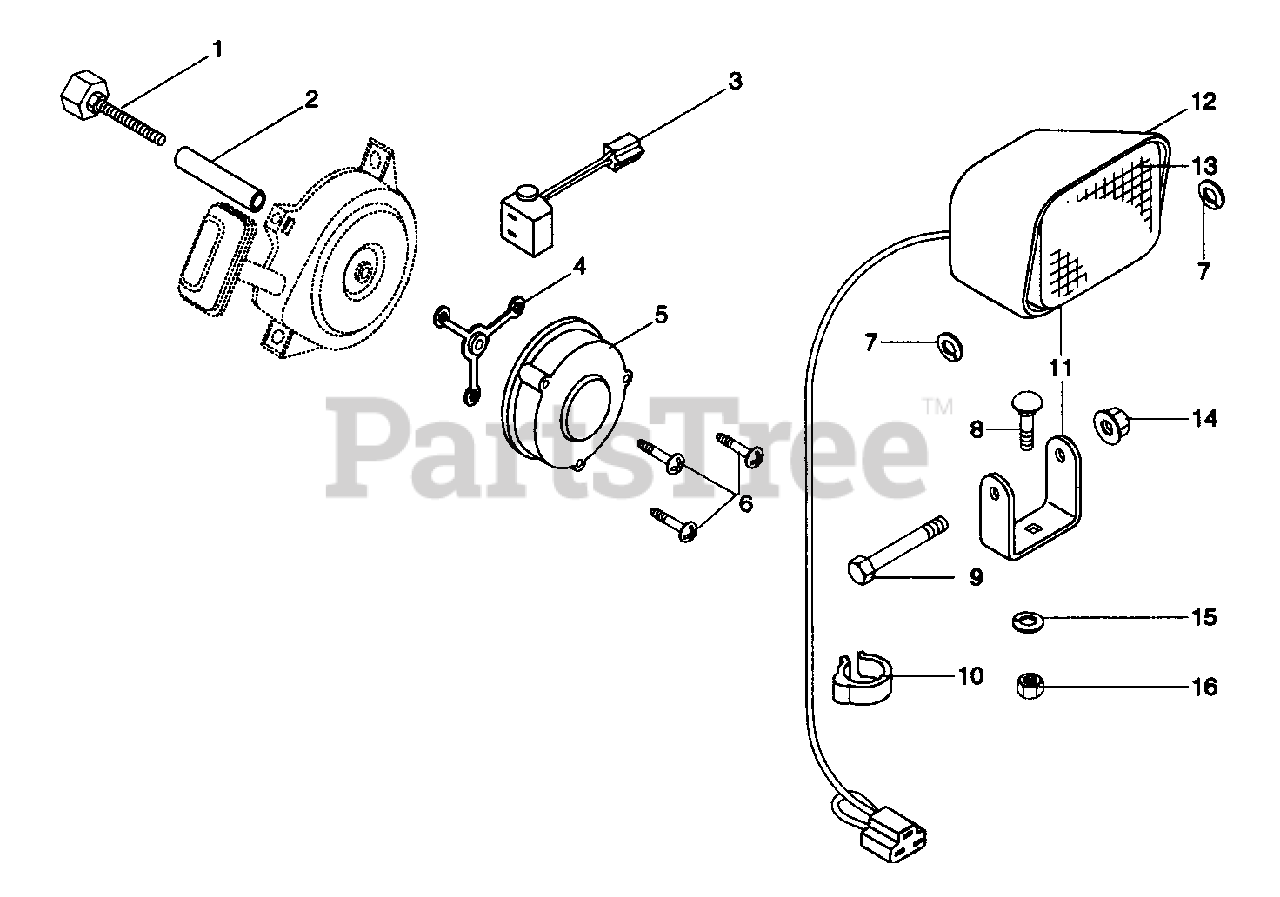

Alternator / Headlight Parts Diagram

  • Title

1

Ariens 02455400

ALTERNATOR SHAFT 3.00

Note: (Tec. 590613)

$

$

Not available

1

Ariens 02457600

ALTERNATOR SHAFT-3.55

Note: (Tec.590636)

$

$

Not available

2

Ariens 02455500

CENTERING TUBE

Note: (Tec. 590610)

$

$

Not available

2

Ariens 02455600

CENTERING TUBE

Note: (Tec. 590609)

$

$

Not available

3

Ariens 02455700

LIGHTING CONNECTOR

Note: (Tec. 61178)

$

$

Not available

4

Ariens 02459800

SPACER-ALTERNATOR

Note: (924085, 086, 087, 088, 089, 090)

$

$

Not available

5

Ariens 02455800

ALTERNATOR

Note: (Tec. 611077)

$

$

Not available

6

Ariens 07408400

SCR-TAP 8-18X1.25 CRFH PL B

$

$

Not available

7

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

Note: (924085, 086, 087, 088, 089, 090)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

Note: (924085, 086, 087, 088, 089, 090)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05913100

BLT-HEX .31-18X2.50 PL GR2
(Superseded to 05952600)

Note: (924085, 086, 087, 088, 089, 090)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06901200

CLAMP

Note: (924085, 086, 087, 088, 089, 090)

$5.49

$

In Stock, only 1 left!

0

11

Ariens 02463600

HEADLIGHT

Note: (924085, 086, 087, 088, 089, 090)

$83.99

$

Usually ships in 4-12 days

0

12

Ariens 02464900

LENSE-FLOOD

Note: (924085, 086,0 87, 088, 090)

$

$

Not available

13

Ariens 02465000

BULB

Note: (924085, 086, 087, 088, 089, 090)

$23.99

$

In Stock, only 1 left!

0

14

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

Note: (924085, 086, 087, 088, 089, 090)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

Note: (924085, 086, 087, 088, 089, 090)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

Note: (924085, 086, 087, 088, 089, 090)

$0.99

$

In Stock, Qty 10

0
