926520 (PRO 32) - Ariens Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Discharge Chute Parts Diagram

Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI

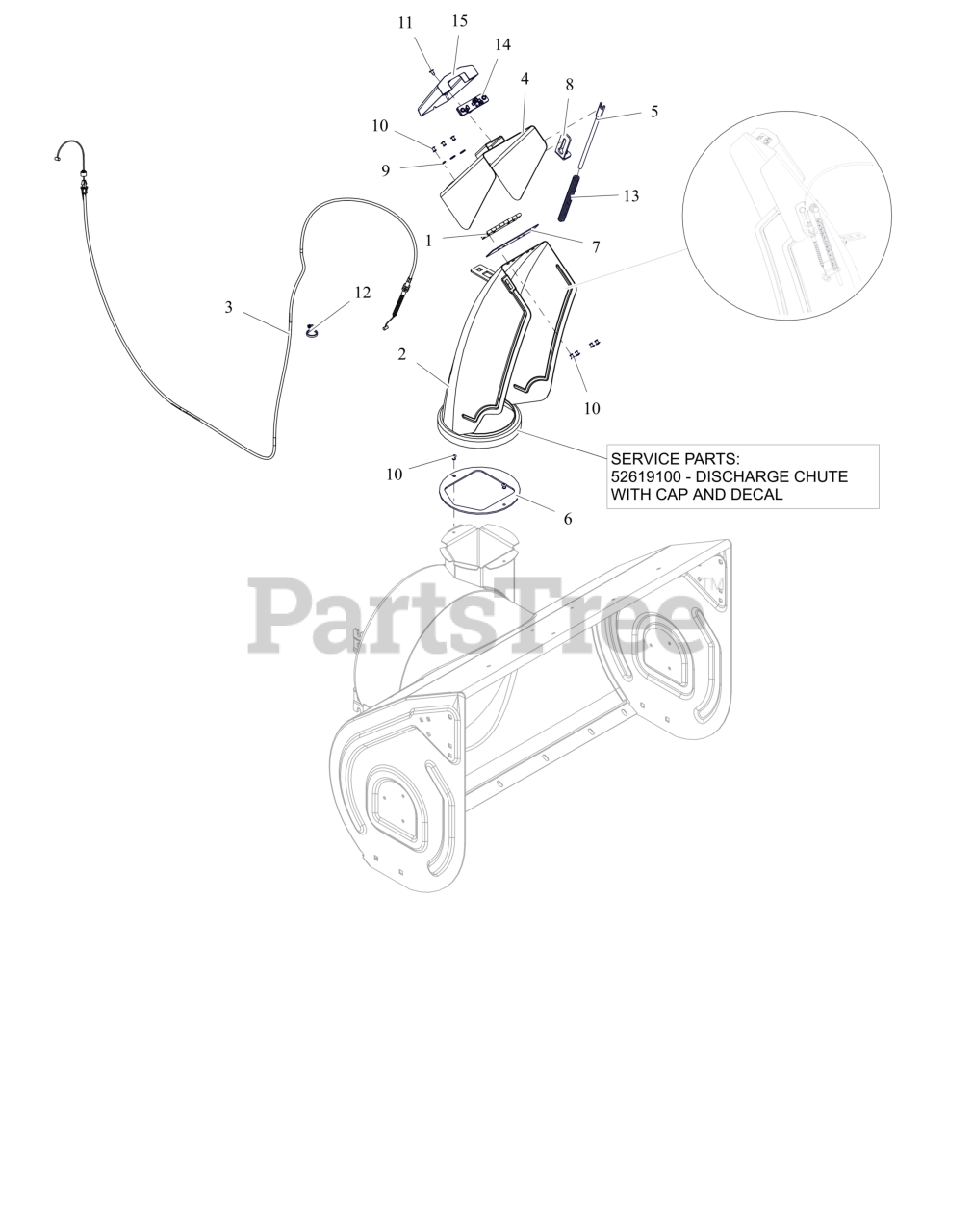

Discharge Chute Parts Diagram

  • Title

1

Ariens 00170100

HINGE

$11.99

$

In Stock, only 1 left!

0

2

Ariens 04750959

CHUTE,DISCHARGE,RMT,ID

$79.99

$

Usually ships in 4-12 days

0

2

Ariens 52619100

CHUTE, DISCHARGE W/CAP LIGHT

Note: Component Service Assembly

$258.99

$

Usually ships in 4-12 days

0

3

Ariens 06900608

CABLE, E-CHUTE CAP

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 09437759

CAP, REMOTE - LARGE

$62.99

$

Usually ships in 4-12 days

0

5

Ariens 00389000

ROD, DEFLECTOR CAP

$14.99

$

In Stock, only 1 left!

0

6

Ariens 00600100

BAFFLE, DISCHARGE NECK

$12.99

$

Usually ships in 4-12 days

0

7

Ariens 00628400

CAP SEAL 5.50

$4.99

$

Usually ships in 4-12 days

0

8

Ariens 05108359

BRACKET, ANCHOR-CHUTE CABLE
(Superseded to 05108300)

$3.49

$

In Stock, only 1 left!

0

9

Ariens 06401029

WSHR,FLT .196X.500X.066 ZCC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06800140

RVT, POP .1875 ZCC

$0.99

$

In Stock, Qty 10

0

11

Ariens 07400137

SCR, TAP #10-24X.375 ZCC P80

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

13

Ariens 08300013

SG-COMP .08X.40X6.50 14#/IN

$9.49

$

In Stock, only 1 left!

0

14

Ariens 09437800

LIGHT- LED - 3BAR HEADLIGHT

$34.99

$

Usually ships in 4-12 days

0

15

Ariens 52617400

COVER, LIGHT - LED W/DECAL

$38.99

$

Usually ships in 4-12 days

0
