926520 (PRO 32) - Ariens Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI (SN: 000101 & Above) Tracks - Axles Parts Diagram

Hydro Pro Kraken 32" Snow Blower, Ariens AX 420cc EFI

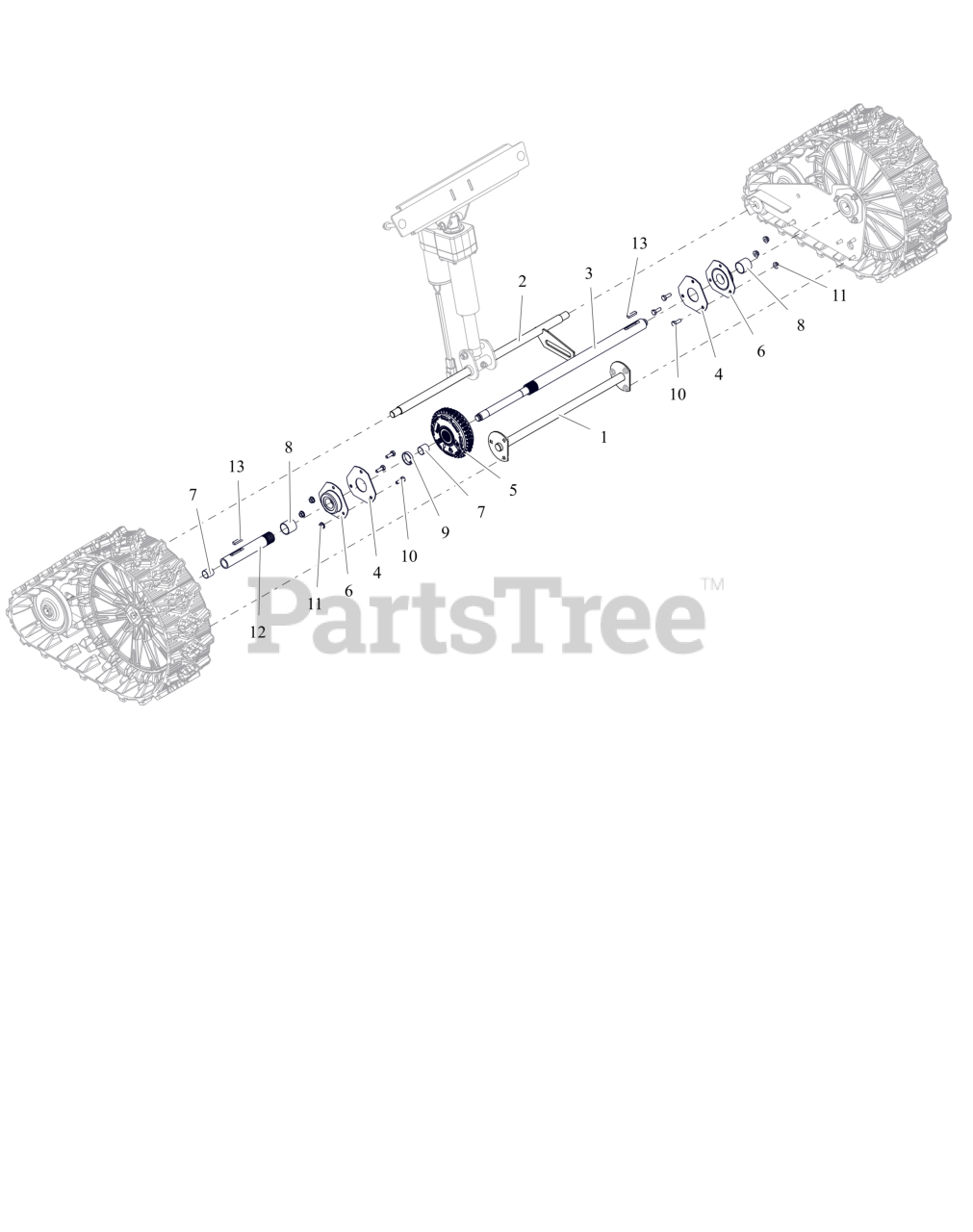

Tracks - Axles Parts Diagram

  • Title

1

Ariens 05153151

SUPPORT, FRONT-BWT

$64.99

$

Usually ships in 4-12 days

0

2

Ariens 09468200

AXLE- REAR - BWT WLDMT ELEC

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 03996100

AXLE, LONG-TRACK DIFFERENTIAL

$101.99

$

Usually ships in 4-12 days

0

4

Ariens 04796351

PLATE, BEARING SPACER

$13.99

$

Usually ships in 4-12 days

0

5

Ariens 05013000

DIFFERENTIAL, AUTOMATIC

$193.99

$

In Stock, only 3 left!

0

6

Ariens 05400723

BRG-FLG 1.003/1.000 3 BOLT

$43.99

$

In Stock, only 2 left!

0

7

Ariens 05500023

BSHG-SLV .706X.764X.75 BRZ

$3.99

$

In Stock, Qty 17

0

8

Ariens 05500122

BSHG-SLV, 1.012X1.125X1.00

$3.99

$

In Stock, Qty 5

0

9

Ariens 05501413

BSHG, SLV 1.062X1.228X.268

$4.99

$

Usually ships in 4-12 days

0

10

Ariens 05901716

BLT, HEX .25-20X.75 G5 ZCC

$0.99

$

In Stock, Qty 10

0

11

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 11

0

12

Ariens 52615800

AXLE, SHORT-W/BUSHINGS

$45.99

$

Usually ships in 4-12 days

0

13

Ariens 06600002

KEY-RECT .25X.188X1.00

$2.49

$

In Stock, Qty 20+

0
