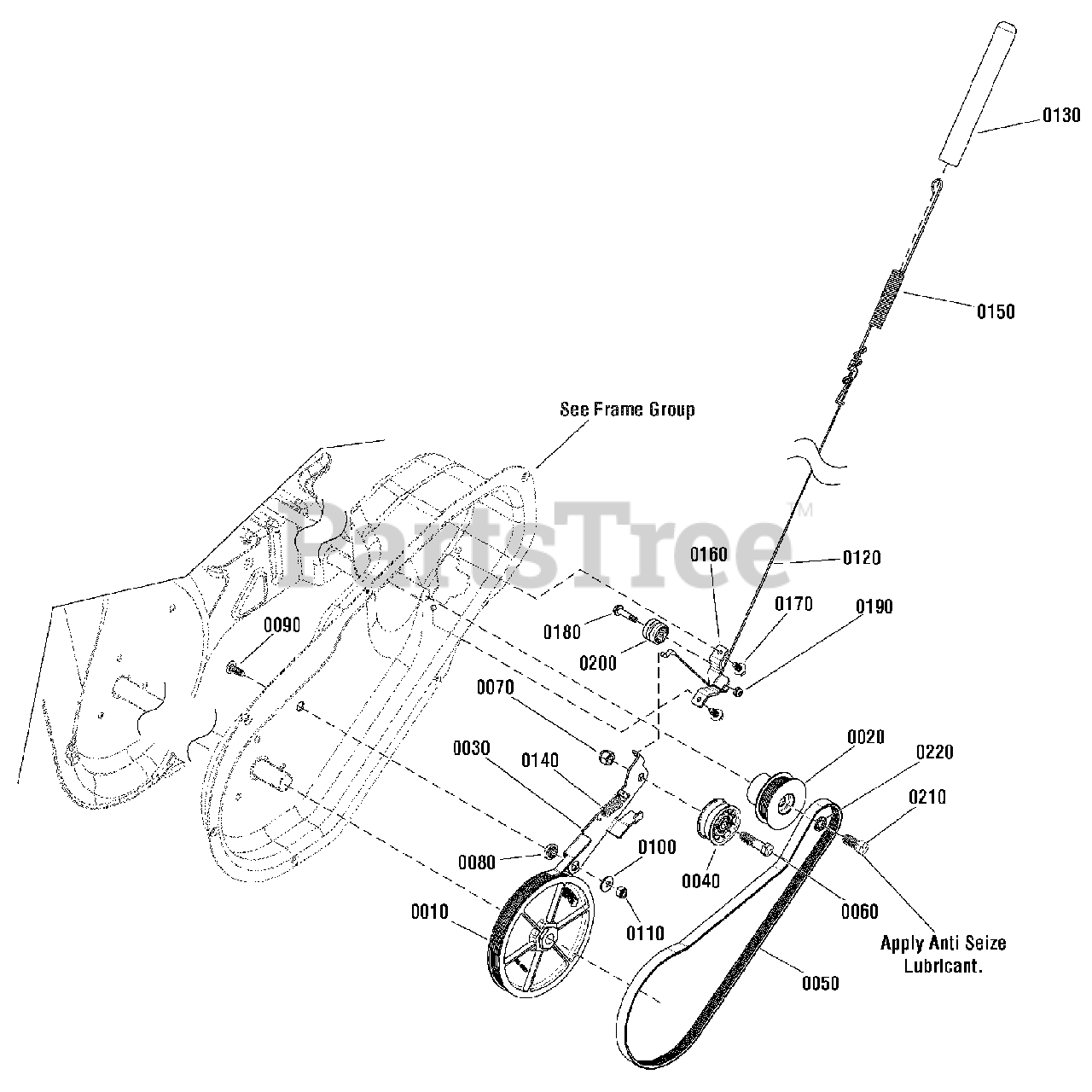

938022 (SS 22 E) - Ariens Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Auger Drive Parts Diagram

Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton

Auger Drive Parts Diagram

  • Title

0010

Ariens 20200132

PULLEY, Driven

$

$

Not available

0020

Ariens 20200113

PULLEY, Driver

$19.99

$

Usually ships in 4-12 days

0

0030

Ariens 20200127

ARM, Idler, Drive

$

$

Not available

0040

Ariens 20200108

IDLER, Plastic Ball Bearing

$28.99

$

Usually ships in 4-12 days

0

0050

Ariens 20200120

BELT, Drive

$51.99

$

Usually ships in 4-12 days

0

0060

Ariens 20200104

CAPSCREW, Hex Head, 3/8-16 x 1

$

$

Not available

0070

Ariens 20200175

NUT, Nylock, 3/8

$

$

Not available

0080

Ariens 20200131

SPACER, Idler Arm

$

$

Not available

0090

Ariens 20200162

BOLT, Carriage, Short Neck, 1/

$

$

Not available

0100

Ariens 20200174

WASHER, Flat, .281 X 3/4 x 1/2

$9.49

$

Usually ships in 4-12 days

0

0110

Ariens 20200176

NUT, Nylock, 1/4

$5.99

$

Usually ships in 4-12 days

0

0120

Ariens 20200107

CABLE, Handle

$34.99

$

Usually ships in 4-12 days

0

0130

Ariens 20200136

BOOT, Clutch Spring

$

$

Not available

0140

Ariens 20200141

SPRING, Idler

$5.99

$

Usually ships in 4-12 days

0

0150

Ariens 20200142

SPRING, Extension

$15.99

$

Usually ships in 4-12 days

0

0160

Ariens 20200143

BRACKET, Cable Guide

$

$

Not available

0170

Ariens 20200146

SCREW, 1/4-20 X .500

$5.99

$

Usually ships in 4-12 days

0

0180

Ariens 20200148

CAPSCREW, Hex Shoulder, 1/4 x

$

$

Not available

0190

Ariens 20200171

NUT, Locking, #10

$

$

Not available

0200

Ariens 20200169

SPOOL CABLE, Auger Control

$

$

Not available

0210

Ariens 20200103

CAPSCREW, Hex Head, 3/8-24 x 1

$

$

Not available

0220

Ariens 20200165

WASHER, Locking, 3/8

$

$

Not available
