938022 (SS 22 E) - Ariens Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Auger Group Parts Diagram

Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton

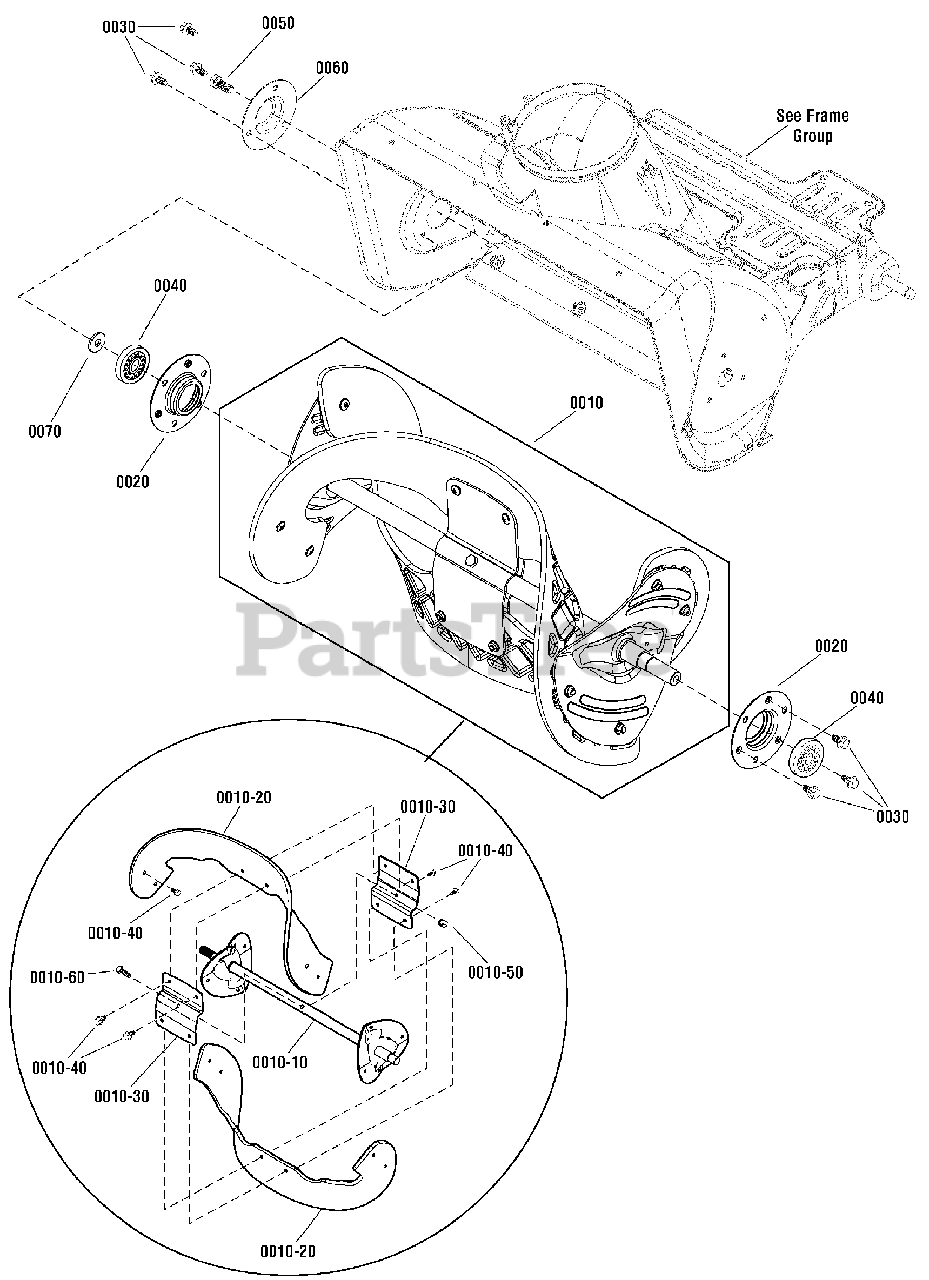

Auger Group Parts Diagram

  • Title

0010

Ariens 20200157

AUGER ASSEMBLY, Complete

Note: (Incl. Ref. Nos. 0010-10, 0010-20, 0010-30, 0010-40, 0010-50 & 0010-60)

$

$

Not available

0010-10

* AUGER SHAFT ASSEMBLY

$

$

Not available

0010-20

** FLIGHT, Auger

$

$

Not available

0010-30

* PLATE, Auger, Center

$

$

Not available

0010-40

Ariens 20200172

SCREW, Pan Head Torx 1/4 x 5/8

$

$

Not available

0010-50

Ariens 20200176

NUT, Nylock, 1/4

$5.99

$

Usually ships in 4-12 days

0

0010-60

Ariens 20200168

CAPSCREW, Hex Head, 1/4-20 X 1

$

$

Not available

0020

Ariens 20200115

RETAINER, Bearing

$

$

Not available

0030

Ariens 20200146

SCREW, 1/4-20 X .500

$5.99

$

Usually ships in 4-12 days

0

0040

Ariens 20200110

BEARING, Ball, 11/16 x 1-9/16

$11.99

$

Usually ships in 4-12 days

0

0050

Ariens 20200164

CAPSCREW, Hex Head, 5/16-18 x

$5.99

$

Usually ships in 4-12 days

0

0060

Ariens 20200116

CAP, BEARING

$9.49

$

Usually ships in 4-12 days

0

0070

Ariens 20200177

WASHER, Flat, 7/8 x 21/64

$

$

Not available

-----

Ariens 20200109

KIT, Auger Flight
(Superseded to 20200210)

Note: (Incl. Ref. Nos. 0010-20 & 0010-40)

$121.99

$

In Stock, Qty 6

0
