938022 (SS 22 E) - Ariens Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Frame Parts Diagram
Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton

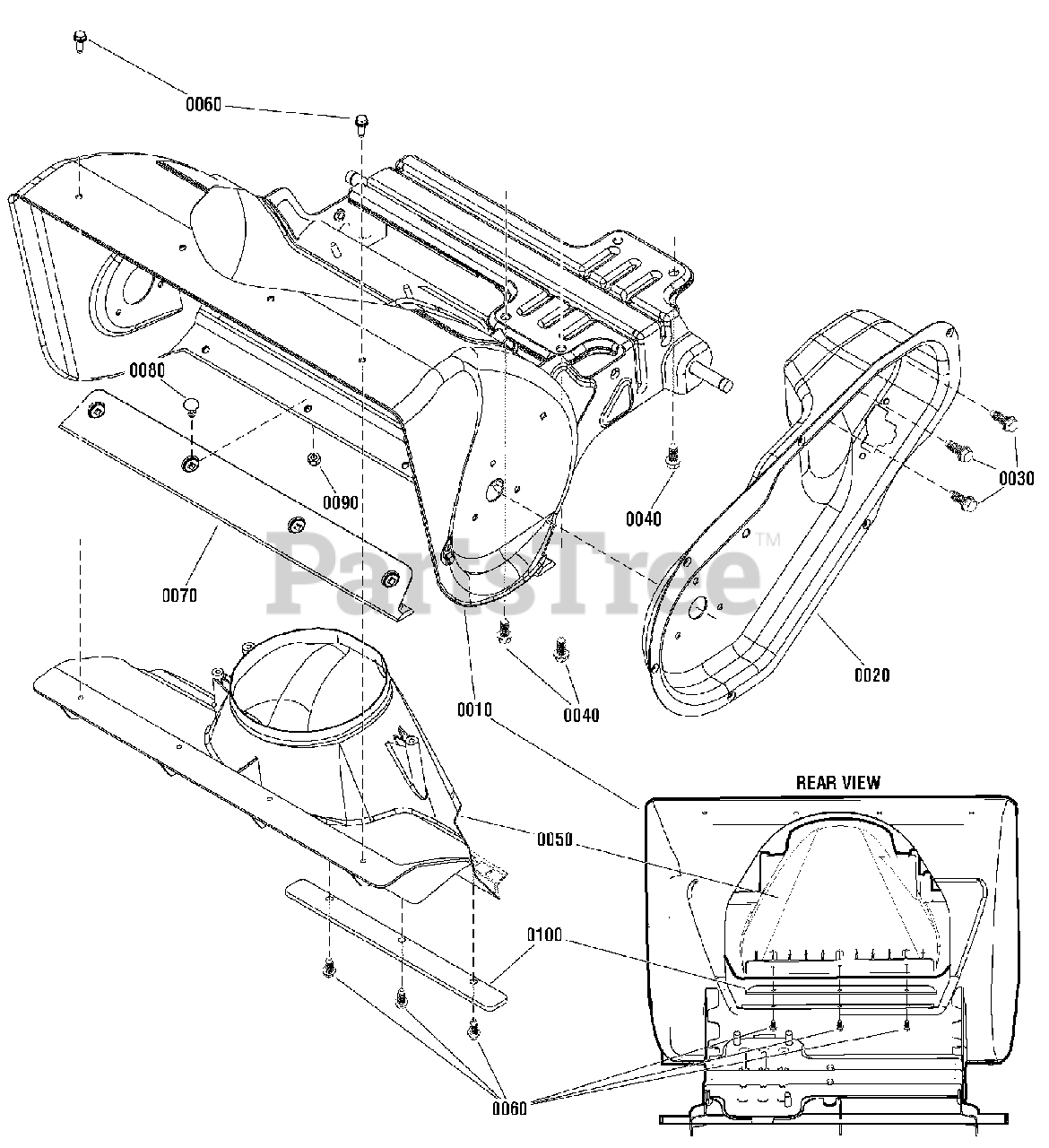

Frame Parts Diagram
Ariens 20200114
FRAME ASSEMBLY
$
$
Not available
Ariens 20200111
HOUSING, Drive
$97.99
$
Usually ships in 4-12 days
Ariens 20200144
BOLT, Serrated, 5/16-24 x 3/4
$5.99
$
Usually ships in 4-12 days
Ariens 20200166
SCREW, Hex Washer Head, Taptit
$
$
Not available
Ariens 20200128
CHIMNEY
$116.99
$
Usually ships in 4-12 days
Ariens 20200145
SCREW, Hi-Low, 1/4-15 x 3/4
$
$
Not available
$121.99
$
In Stock, Qty 6
Ariens 20200161
BOLT, Carriage, 1/4-20 x 1/2,
$6.49
$
Usually ships in 4-12 days
Ariens 20200181
NUT, 1/4-20 Hex Flange Whiz Lo
$
$
Not available
Ariens 20200179
SPACER, Chimney
$17.99
$
Usually ships in 4-12 days
