938022 (SS 22 E) - Ariens Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Wheel and Body Cover Parts Diagram

Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton

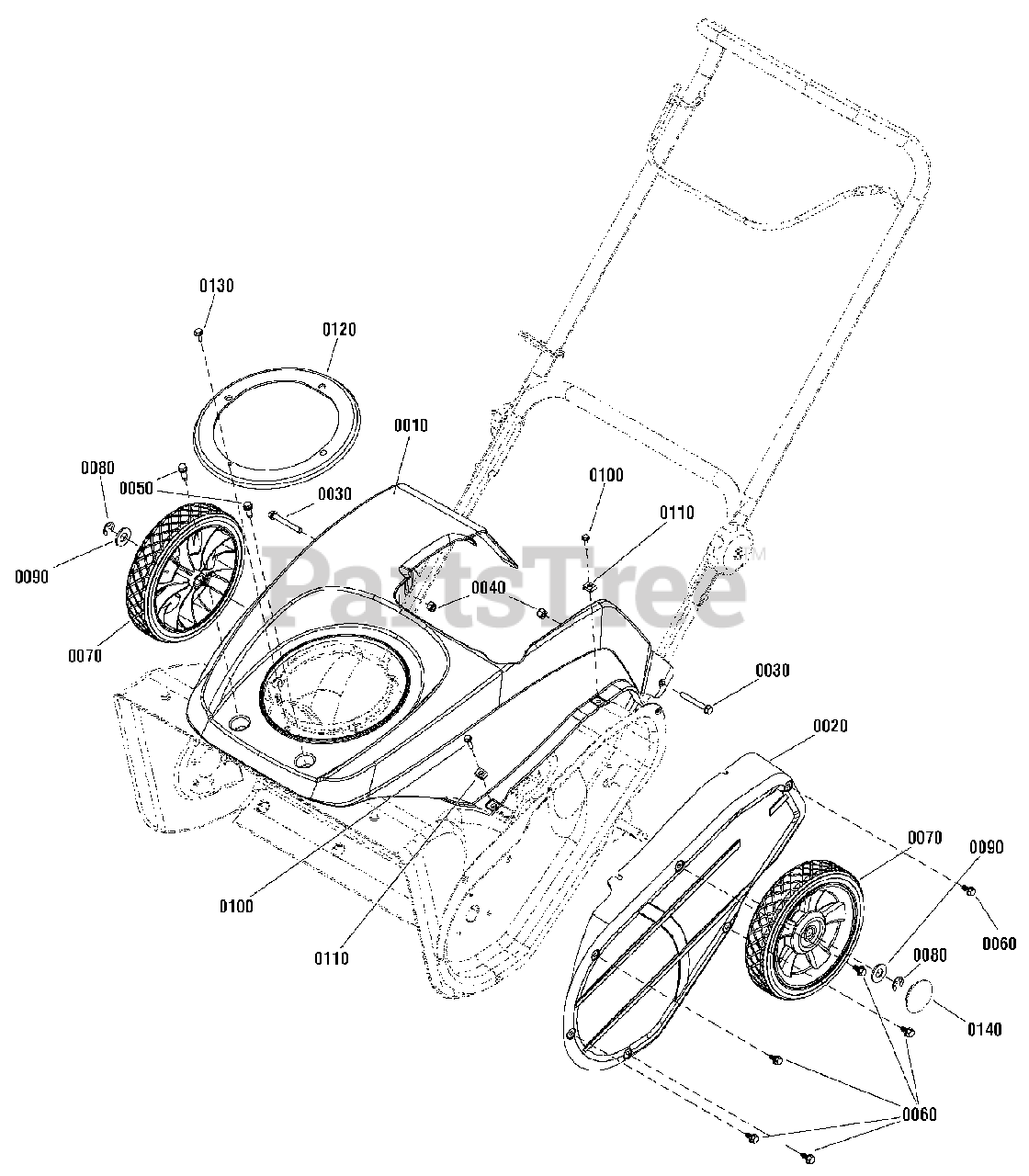

Wheel and Body Cover Parts Diagram

  • Title

0010

Ariens 20200133

COVER, Top, Black

$

$

Not available

0020

Ariens 20200129

COVER, Drive Case

$59.99

$

Usually ships in 4-12 days

0

0030

Ariens 20200152

CAPSCREW, Hex Washer Head, 1/4

$

$

Not available

0040

Ariens 20200176

NUT, Nylock, 1/4

$5.99

$

Usually ships in 4-12 days

0

0050

Ariens 20200145

SCREW, Hi-Low, 1/4-15 x 3/4

$

$

Not available

0060

Ariens 20200146

SCREW, 1/4-20 X .500

$5.99

$

Usually ships in 4-12 days

0

0070

Ariens 20200167

WHEEL, 2 x 8, Plastic 1/2

$

$

Not available

0080

Ariens 20200159

E-RING, Axle, 1/2

$

$

Not available

0090

Ariens 20200170

WASHER, Flat, 17/32 x 5/8

$

$

Not available

0100

Ariens 20200149

CAPSCREW, Hex Washer Head, 10-

$8.99

$

In Stock, only 2 left!

0

0110

Ariens 20200178

NUT, U-Style Speed, #10

$8.99

$

In Stock, only 1 left!

0

0120

Ariens 20200134

COVER, Chute

$

$

Not available

0130

Ariens 20200163

SCREW, Hex Washer Head, Plasti

$

$

Not available

0140

Ariens 20200180

HUBCAP

$

$

Not available
