939002 (ST 520) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Engine And Belt Drive Parts Diagram

20" Snow Blower, 5hp Tecumseh

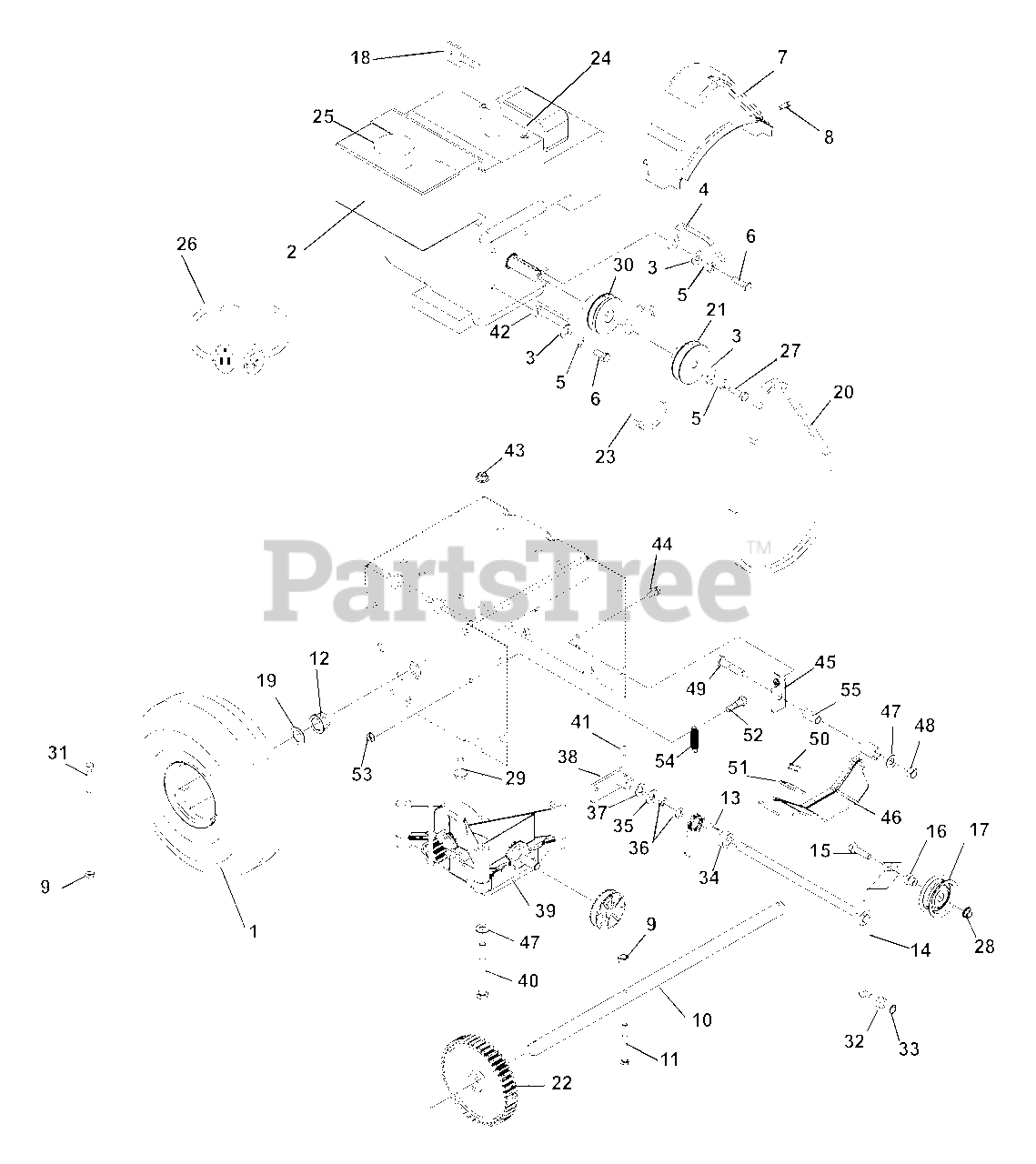

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 07100113

TIRE/WHEEL, 4.10-4
(Superseded to 07100509)

$79.99

$

Usually ships in 4-12 days

0

Ariens 07100115

TIRE, 2PR 4.10-4

$

$

Not available

Ariens 07100116

WHEEL, 4.10-4

$

$

Not available

Ariens 07100117

TUBE, 4.10-4 TIRE

$

$

Not available

2

Ariens 08200130

ENGINE, 5HP TEC LH195SA 120V

Note: (001)

$

$

Not available

Ariens 08200124

ENGINE, 5HP TEC OH195SA RECOIL

Note: (300)

$

$

Not available

Ariens 08200123

ENGINE, 5HP TEC LH195SA RECOIL

Note: (002)

$

$

Not available

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 00498300

FINGER, BELT

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, only 3 left!

0

6

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 19

0

7

Ariens 00497200

COVER, BELT

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 00490700

AXLE

$82.99

$

Usually ships in 4-12 days

0

11

Ariens 05952700

BLT-HEX .25-20X2.25 GR8 YWZC
(Superseded to 05901638)

$3.99

$

In Stock, only 1 left!

0

12

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$9.49

$

In Stock, Qty 20+

0

13

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 8

0

14

Ariens 00490500

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

15

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

16

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

17

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 13

0

18

Ariens 07532000

KEY, PUSH/PULL - TECUMSEH
(Superseded to 07500108)

$7.99

$

In Stock, only 4 left!

0

19

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 5

0

20

Ariens 07200108

V-BELT, 4L-RAW EDGE

$21.99

$

In Stock, Qty 20+

0

21

Ariens 00279100

SHEAVE, ENGINE

$117.99

$

Usually ships in 4-12 days

0

22

Ariens 00582100

GEAR, 45T POLYMER
(Superseded to 03268200)

$14.99

$

Usually ships in 4-12 days

0

23

Ariens 07200109

V-BELT, 3L-STRETCH FIT

$17.99

$

In Stock, only 3 left!

0

24

Ariens 21533400

PLUG, SPARK

Note: (001, 002)

$3.49

$

In Stock, Qty 20+

0

Ariens 21533500

PLUG, SPARK

Note: (300)

$4.49

$

In Stock, Qty 19

0

25

Ariens 07531800

CAP, FUEL - TECUMSEH

$11.99

$

In Stock, only 2 left!

0

26

Ariens 02483100

CORD, ELECTRIC START CORD 120V

Note: (001)

$34.99

$

In Stock, only 4 left!

0

27

Ariens 05963600

BLT-HEX .31-24X1.00 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

28

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 07400010

SCR-TAP .38-16X1.0 HWH YZ W/VT

$

$

Not available

30

Ariens 00499500

SHEAVE, DRIVE

$38.99

$

Usually ships in 4-12 days

0

31

Ariens 05953000

BLT-HEX .25-20X1.75 GR8 YWZC

$9.49

$

Usually ships in 4-12 days

0

32

Ariens 05500037

BSHG,SLV .265 X .625 X .375

$1.99

$

Usually ships in 4-12 days

0

33

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 16

0

34

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, only 2 left!

0

35

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, Qty 15

0

36

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 12

0

37

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, Qty 8

0

38

Ariens 00581500

LEVER, ATTACHMENT CLUTCH

$

$

Not available

39

Ariens 00499700

TRANSMISSION, FR SS

$

$

Not available

40

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, only 2 left!

0

41

Ariens 05800003

PIN-GRV .156X.875 TYPE H LC

$

$

Not available

42

Ariens 02411000

BELT FINGER

$9.49

$

In Stock, only 1 left!

0

43

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

45

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

46

Ariens 00495300

ARM, BRAKE
(Superseded to 52000500)

$22.99

$

In Stock, only 3 left!

0

47

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, only 3 left!

0

50

Ariens 06800001

RVT-POP .187X.45 DOME ALUM
(Superseded to 06800140)

$0.99

$

In Stock, Qty 10

0

51

Ariens 00180500

PAD, BRAKE

$10.99

$

In Stock, only 4 left!

0

52

Ariens 05900030

BLT-SHLDR .31X.50 .25-20X.438

$5.99

$

Usually ships in 4-12 days

0

53

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

54

Ariens 08300029

SG-TENS .06X.46X2.00

$5.99

$

Usually ships in 4-12 days

0

55

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 7

0
