9801-9 - Generac EXL 10,000 Watt Portable Generator Alternator Parts Diagram

EXL 10,000 Watt Portable Generator

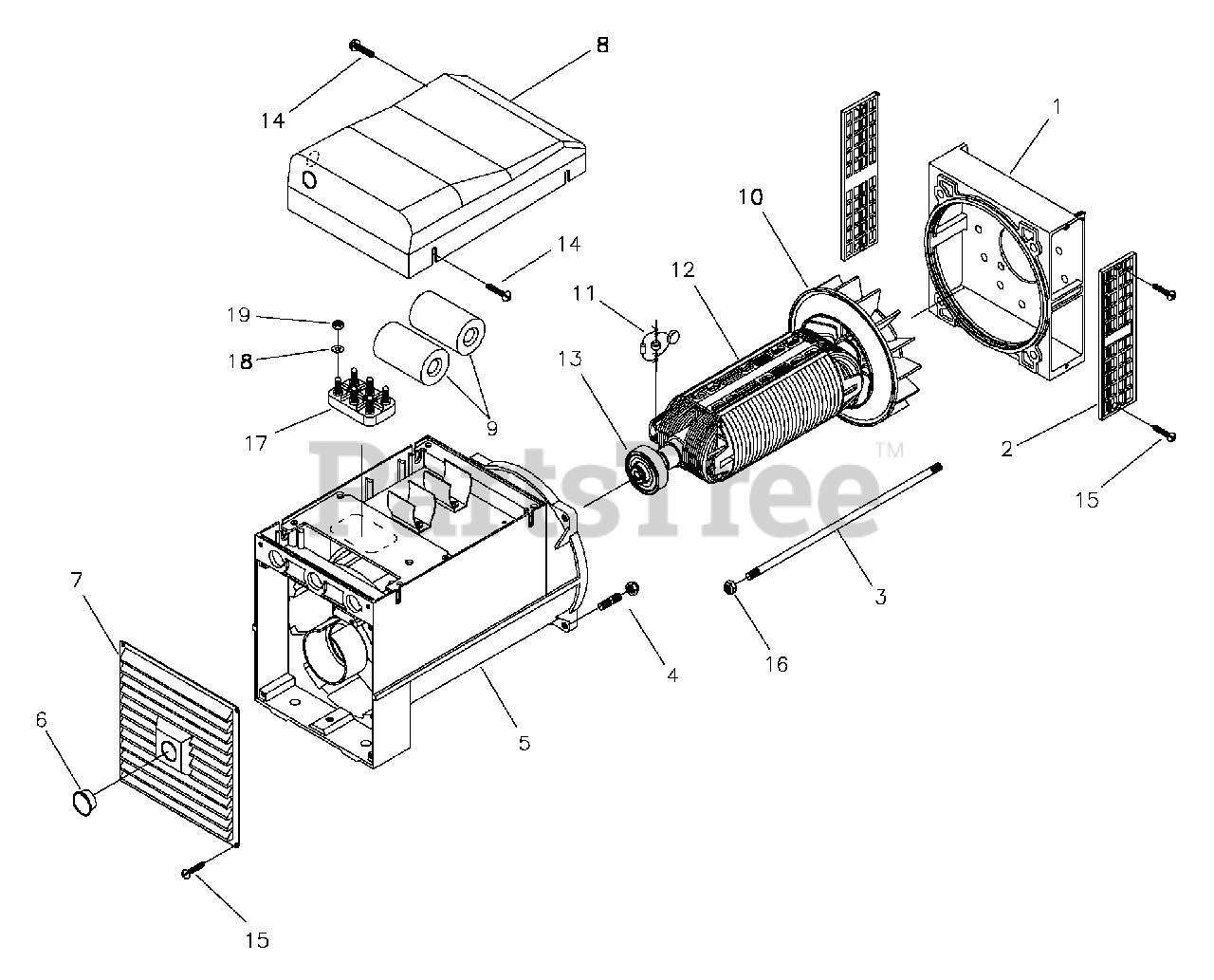

Alternator Parts Diagram

  • Title

1

Briggs & Stratton B4906GS

SHIELD, Front

$126.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B4907GS

GRID, Front

$18.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4908GS

BOLT, Shaft Stay

$28.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B4909GS

STAY BOLT, M8 x 30

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B4910GS

ASSY, Housing

$1203.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187049GS

PLUG, Domed

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B4912GS

GRID, End

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B4913GS

COVER,Top Black

$99.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B4914GS

CAPACITOR
(Superseded to 311560GS)

$130.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 198364GS

FAN

$31.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B4916GS

CAPACITOR, Diode + Varistor + EMC

$

$

Not available

12

Briggs & Stratton 191297GS

ASSY, Rotor

$969.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 197705GS

BEARING

$37.99

$

Usually ships in 2-12 days

0

14

-----

SCREW, M6 - 1.0 x 10mm

Note: (Purchase locally)

$

$

Not available

15

-----

SCREW, M5 - 0.8 x 10mm

Note: (Purchase locally)

$

$

Not available

16

Briggs & Stratton 49820GS

LOCK NUT, M8 - 1.25

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 188928GS

CONNECTOR, 6-Pin Sincro

$65.99

$

Usually ships in 2-12 days

0

18

-----

WASHER, Flat M6

Note: (Purchase locally)

$

$

Not available

19

-----

NUT, M6

Note: (Purchase locally)

$

$

Not available
