9852-0 - Generac CP 3,150 PSI Pressure Washer Pressure Washer & Cradle Parts Diagram

CP 3,150 PSI Pressure Washer

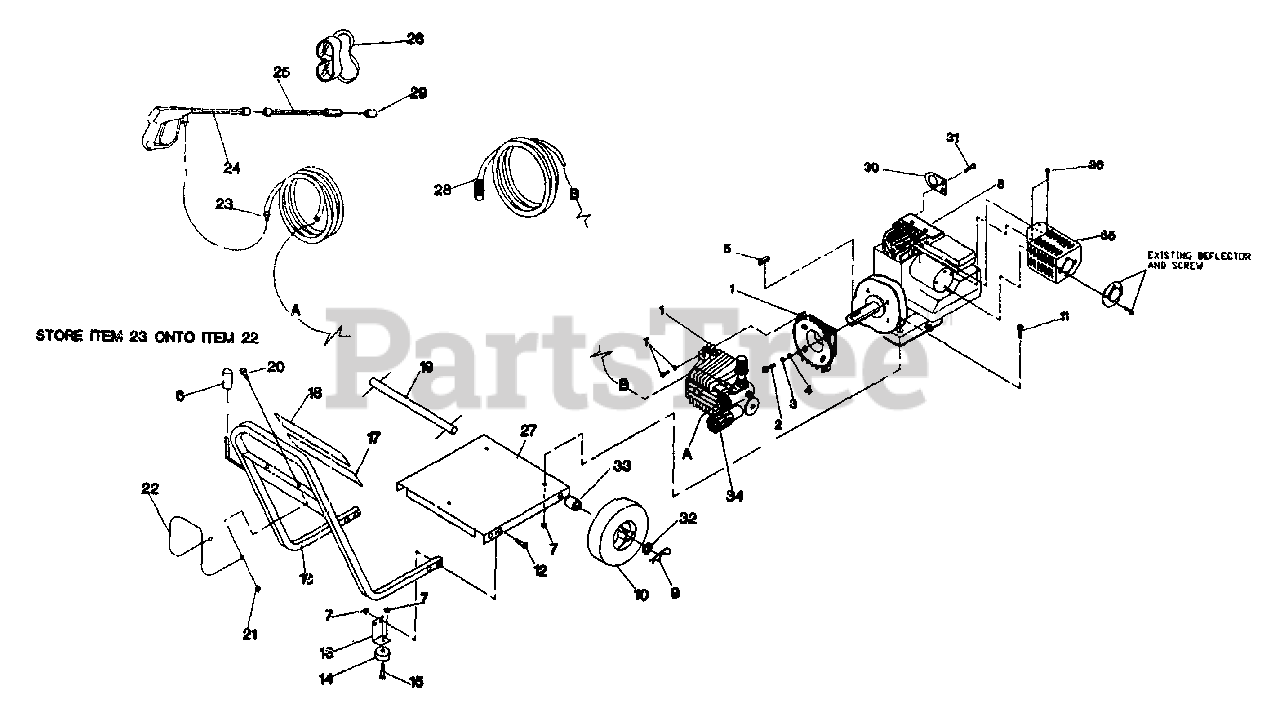

Pressure Washer & Cradle Parts Diagram

  • Title

1

Briggs & Stratton 93360

Pump -- 2 GPM at 1500 PSI

$

$

Not available

2

Briggs & Stratton 22147

5/16"-24 x 1" Hex Head Capscrew
(Superseded to 22147GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

5/16" Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 22145

5/16" Flat Washer

$

$

Not available

5

Briggs & Stratton 89314

3/16" x 1-7/8" Key
(Superseded to 89314GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 92528

Vinyl Cap - 1/4" x 1"

$

$

Currently unavailable

7

Briggs & Stratton 52858

M8 Hex Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 87610

3.5 HP Briggs & Stratton Engine

$

$

Currently unavailable

9

Briggs & Stratton 87005A

"R" Wheel Clip
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 87280

Wheel (semi-pneumatic)
(Superseded to 197061GS)

$24.99

$

In Stock, only 4 left!

0

11

Briggs & Stratton 39414

M8 x 35mm Hex Head Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 57821

M8 x 40mm Hex Head Capscrew

$

$

Not available

13

Briggs & Stratton 91092

Support Leg
(Superseded to 91092GS)

$15.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 87841

Vibration Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

15

Briggs & Stratton 39253

M8 x 20mm Hex Head Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93512

Guide Handle

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 92629

Decal -- Starting Instructions

$

$

Currently unavailable

18

Briggs & Stratton 93363

Decal -- 3150CP

$

$

Currently unavailable

19

Briggs & Stratton 93361

Wheel Axle - zinc plated

$

$

Not available

20

Briggs & Stratton 47411

M6 x 16mm Hex Head Capscrew

$

$

Not available

21

Briggs & Stratton 52857

M8 Flange Lock Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87816

Hose Support

$

$

Currently unavailable

23

Briggs & Stratton 91629

High Pressure Hose
(Superseded to 703464)

$4.49

$

In Stock, only 1 left!

0

24

Briggs & Stratton 91628

Spray Gun

$

$

Not available

25

Briggs & Stratton 91029

Wand
(Superseded to 7091029YP)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 87815

Safety Goggles
(Superseded to 87815GS)

$12.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 93511

Mounting Base

$

$

Currently unavailable

28

Briggs & Stratton 89800

Plastic Chemical Injector Hose (replacement)
(Superseded to 89800GS)

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 92659

Replacement Nozzle
(Superseded to 690352)

Note: Part number indicates replacement part only. The nozzle for your pressure washer should come attached to wand

$6.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 89602

Wand Support Bracket

$

$

Currently unavailable

31

Briggs & Stratton 86292

No. 10-16 Self Drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

33

Briggs & Stratton 92272

Wheel Spacer
(Superseded to 92272GS)

$5.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 89983

Garden Hose Connector
(Superseded to 89983GS)

$20.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 93791A

Muffler Guard

$

$

Currently unavailable

36

Briggs & Stratton 92789

Taptite Screws for Muffler

$

$

Currently unavailable
