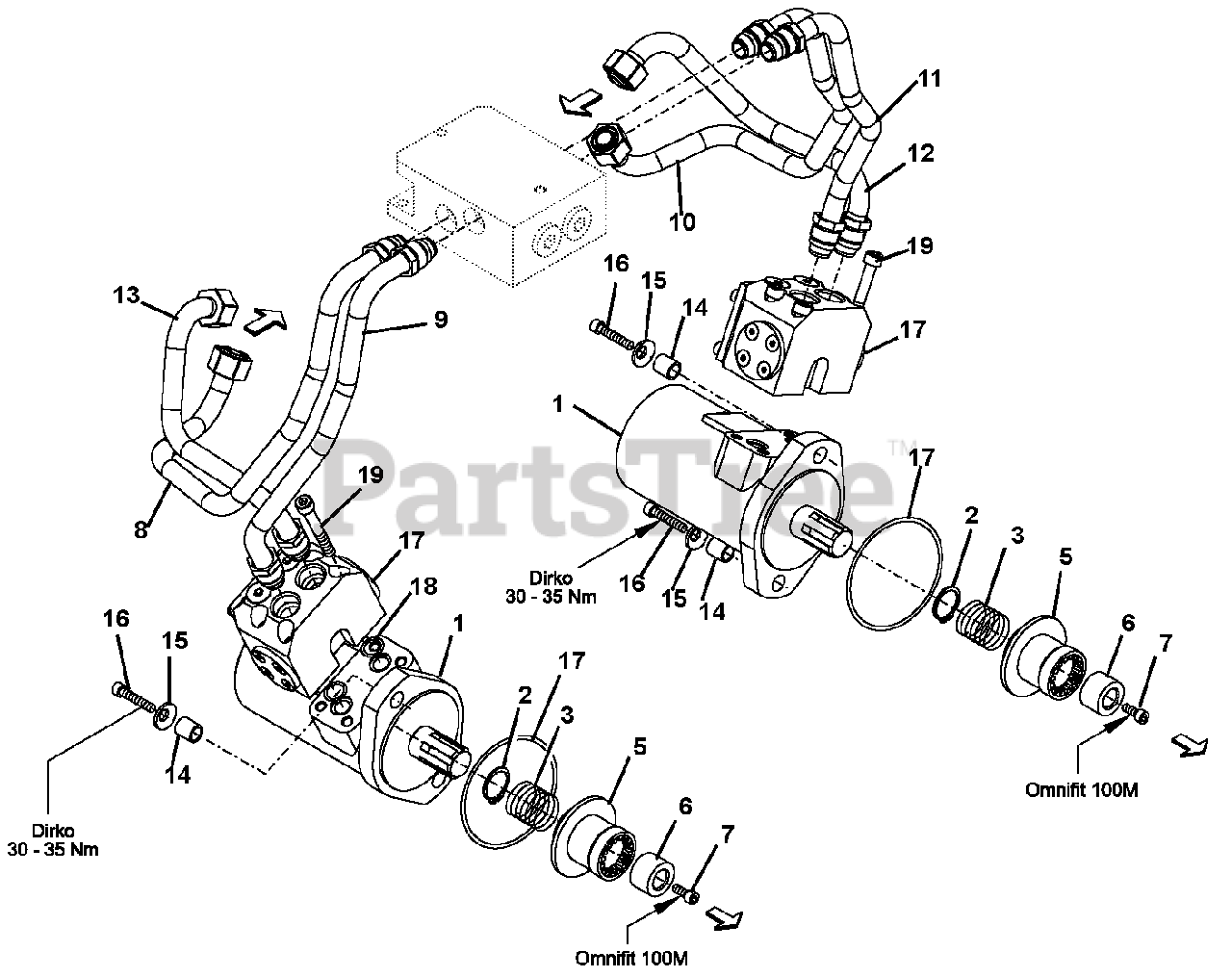

985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Hydraulic Pump Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

Hydraulic Pump Parts Diagram

  • Title

1

Gravely 00845400

Motor, Hydraulic, 157CCM

$

$

Not available

2

Gravely 00834200

Circlip, 24 1,20

$

$

Not available

3

Gravely 00834700

Pressure Spring

$

$

Not available

4

Gravely 00845500

Sleeve

$

$

Not available

5

Gravely 00845600

Bushing

$

$

Not available

6

Gravely 00845700

Screw, 1/4 x 5/8" UNC

$

$

Not available

7

Gravely 00845800

Pipe, Hydraulic Assembly

$

$

Not available

8

Gravely 00845900

Pipe, Hydraulic Assembly

$

$

Not available

9

Gravely 00846000

Pipe, Hydraulic Assembly

$

$

Not available

10

Gravely 00846100

Pipe, Hydraulic Assembly

$

$

Not available

11

Gravely 00846200

Pipe, Hydraulic Assembly

$

$

Not available

12

Gravely 00846300

Pipe, Hydraulic Assembly

$

$

Not available

13

Gravely 00846400

Bushing

$

$

Not available

14

Gravely 08643400

Washer, FORM Z 10.2/16.1 x 1.6

$

$

Not available

15

Gravely 08649000

Screw, D912 M10 x 30

$

$

Not available

16

Gravely 00846500

O-Ring, 78 x 3

$

$

Not available

17

Gravely 00846600

Valve Control

$

$

Not available

18

Gravely 00846700

O-Ring, D3770 12,37 x 2,62

$

$

Not available

19

Gravely 00846800

Bolt, Cylindrical, M8 x 60

$

$

Not available
