985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Right Hand Handlebar Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

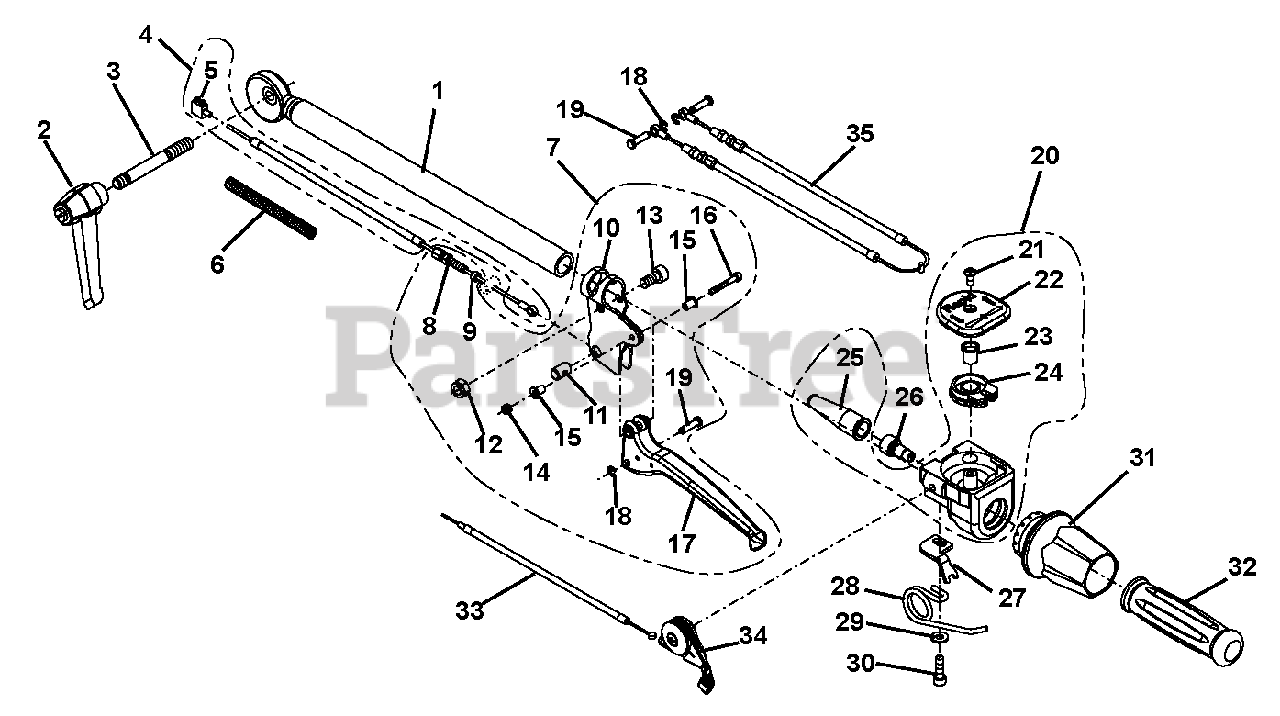

Right Hand Handlebar Parts Diagram

  • Title

1

Gravely 00853500

Handlebar Extension

$

$

Not available

2

Gravely 00853600

Clamping Lever, L= 80 M10 x 20

$

$

Not available

3

Gravely 00853700

Threaded Bolt, D939 M10FO x 75

$14.99

$

Usually ships in 4-12 days

0

4

Gravely 00853800

Cable Pull, INKL. (Includes item 5)

Note: (Includes item 5)

$

$

Not available

5

Gravely 08669500

Nipple, 2 MM

$

$

Not available

6

Gravely 00852700

Spring Tension

$

$

Not available

7

Gravely 08693000

Lever, Assembly

$

$

Not available

8

Gravely 00853900

Set Collar, M6 x 36

$

$

Not available

9

Gravely 00854000

Distance Ring

$

$

Not available

10

Gravely 08682000

Guide, Lever

$

$

Not available

11

Gravely 00854100

Shaft, Stay

$

$

Not available

12

Gravely 08622000

Nut, Lock, D985 Metric 8

$

$

Not available

13

Gravely 08644000

Screw, D912 Metric 8 x 16

$

$

Not available

14

Gravely 08681600

Nut, Lock, D985 Metric 4

$

$

Not available

15

Gravely 08681700

Bushing

$

$

Not available

16

Gravely 08681800

Screw, D912 Metric 4 x 30

$

$

Not available

17

Gravely 08681500

Lever

$

$

Not available

18

Gravely 08694600

Washer, Lock

$

$

Not available

19

Gravely 08681900

Bolt

$

$

Not available

20

Gravely 08680200

MF Control Unit CPL (Includes items 21 - 25)

Note: (Includes items 21 - 25)

$233.99

$

Usually ships in 4-12 days

0

21

Gravely 08626600

Screw, ISO7380 M5 x 12/ 10.9

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 08627400

Cover

$65.99

$

Usually ships in 4-12 days

0

23

Gravely 00854200

Bushing

$41.99

$

Usually ships in 4-12 days

0

24

Gravely 08626800

Bevel Wheel W. Cam

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 08627800

Cap

$41.99

$

Usually ships in 4-12 days

0

26

Gravely 00854300

Nipple, Screwed

$

$

Not available

27

Gravely 00854400

Cover, Stop

$

$

Not available

28

Gravely 08694800

Spring, Return

$

$

Not available

29

Gravely 08604900

Washer, M6

$

$

Not available

30

Gravely 08618100

Screw

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 08694900

Bushing, Grip

$189.99

$

Usually ships in 4-12 days

0

32

Gravely 08627000

Rubber, Handle

$22.99

$

Usually ships in 4-12 days

0

33

Gravely 08693300

Cable

$

$

Not available

34

Gravely 08694700

Assembly, Throttle Lever

$50.99

$

Usually ships in 4-12 days

0

35

Gravely 08693200

Assembly, Cable

$

$

Not available
