985400 - Gravely Rapid E Walk-Behind 2-Wheel Tractor (SN: 000101 & Above) Steering Block Valves Parts Diagram

Rapid E Walk-Behind 2-Wheel Tractor

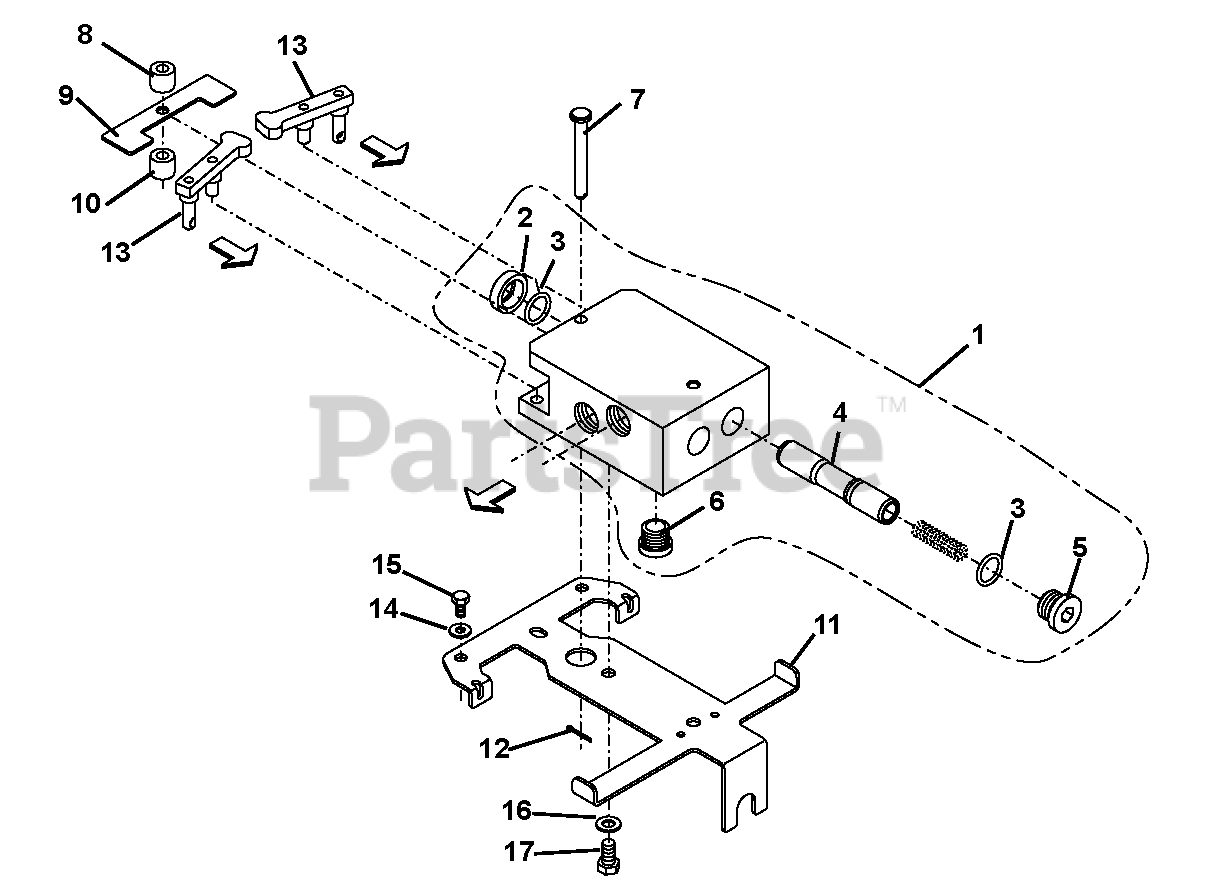

Steering Block Valves Parts Diagram

  • Title

1

Gravely 00844400

Valve Steering (Includes items 2 - 6)

Note: (Includes items 2 - 6)

$

$

Not available

2

Gravely 00844500

Baffle

$

$

Not available

3

Gravely 00844600

O-Ring, 17,86 x 2,62

$

$

Not available

4

Gravely 00844700

Tappet Steeri

$

$

Not available

5

Gravely 00681900

Drain Plug

$

$

Not available

6

Gravely 00681800

Drain Plug

$

$

Not available

7

Gravely 00844800

Bolt, 8 x 65

$

$

Not available

8

Gravely 00844900

Bushing

$

$

Not available

9

Gravely 00845000

Support

$

$

Not available

10

Gravely 00845100

Bushing

$

$

Not available

11

Gravely 00845200

Plate, Support

$

$

Not available

12

Gravely 08678000

Pin, Cotter, 2 x 16

$

$

Not available

13

Gravely 00845300

Lever

$

$

Not available

14

Gravely 08604900

Washer, M6

$

$

Not available

15

Gravely 00683300

Hex Bolt, Metric 6 x 16

$

$

Not available

16

Gravely 08605800

Washer, M8

$

$

Not available

17

Gravely 08621400

Bolt, Hex, Metric 8 x 16

$

$

Not available
