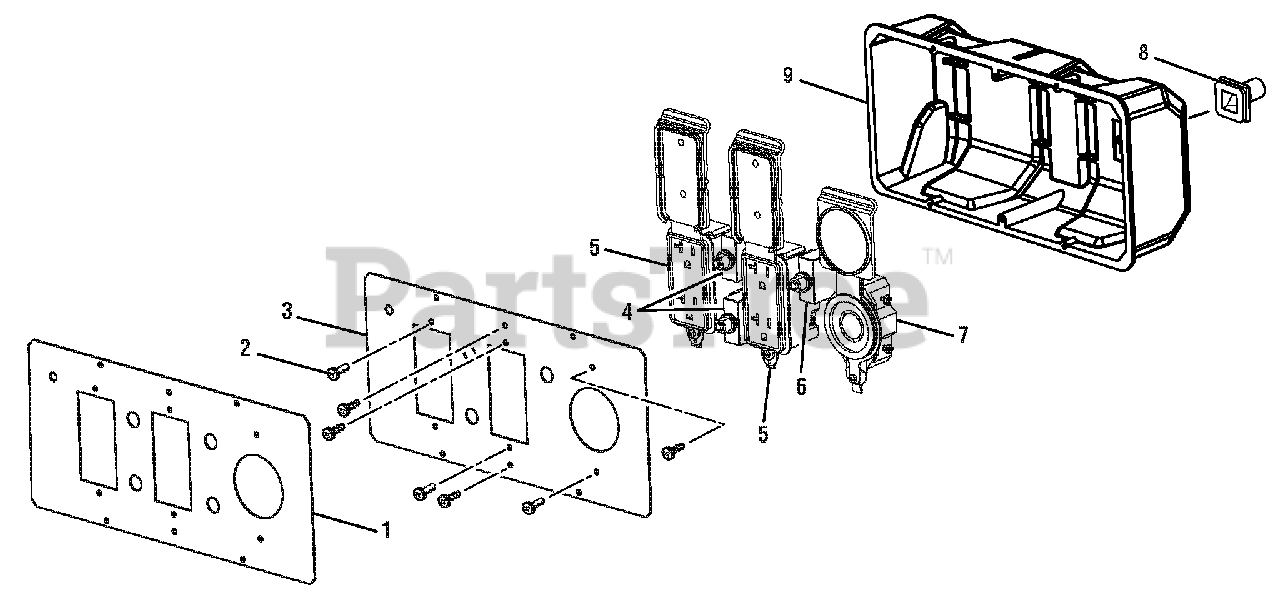

986052 - Gravely 7500 Watt Generator (SN: 000700 - 003015) Electrical Parts Diagram

7500 Watt Generator

Electrical Parts Diagram

  • Title
1

Gravely 20000868

Label (Power Outlet)

Note: (Power Outlet)

$

$

Not available

2

Gravely 20000824

Screw (6-20 x 3/8 in.)

Note: (6-20 x 3/8 in.)

$

$

Not available

3

Gravely 20000814

Front Panel

$

$

Not available

4

Gravely 20000848

Circuit Breaker (20 Amp, 125 Volt)

Note: (20 Amp, 125 Volt)

$45.99

$

Usually ships in 4-12 days

0

5

Gravely 20000761

120 Volt Duplex Receptacle (GFCI)

Note: (GFCI)

$

$

Not available

6

Gravely 20000849

Circuit Breaker (30 Amp)

Note: (30 Amp)

$

$

Not available

7

Gravely 20000762

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

Note: (120/240 Volt, 30 Amp, L14-30R)

$

$

Not available

8

Gravely 20000803

Rubber Boot

$

$

Not available

9

Gravely 20000790

Control Box (Back Panel)

Note: (Back Panel)

$

$

Not available
