988001 - Gravely Pro 100 Walk-Behind Mower, 12.5hp Briggs & Stratton (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro 100 Walk-Behind Mower, 12.5hp Briggs & Stratton

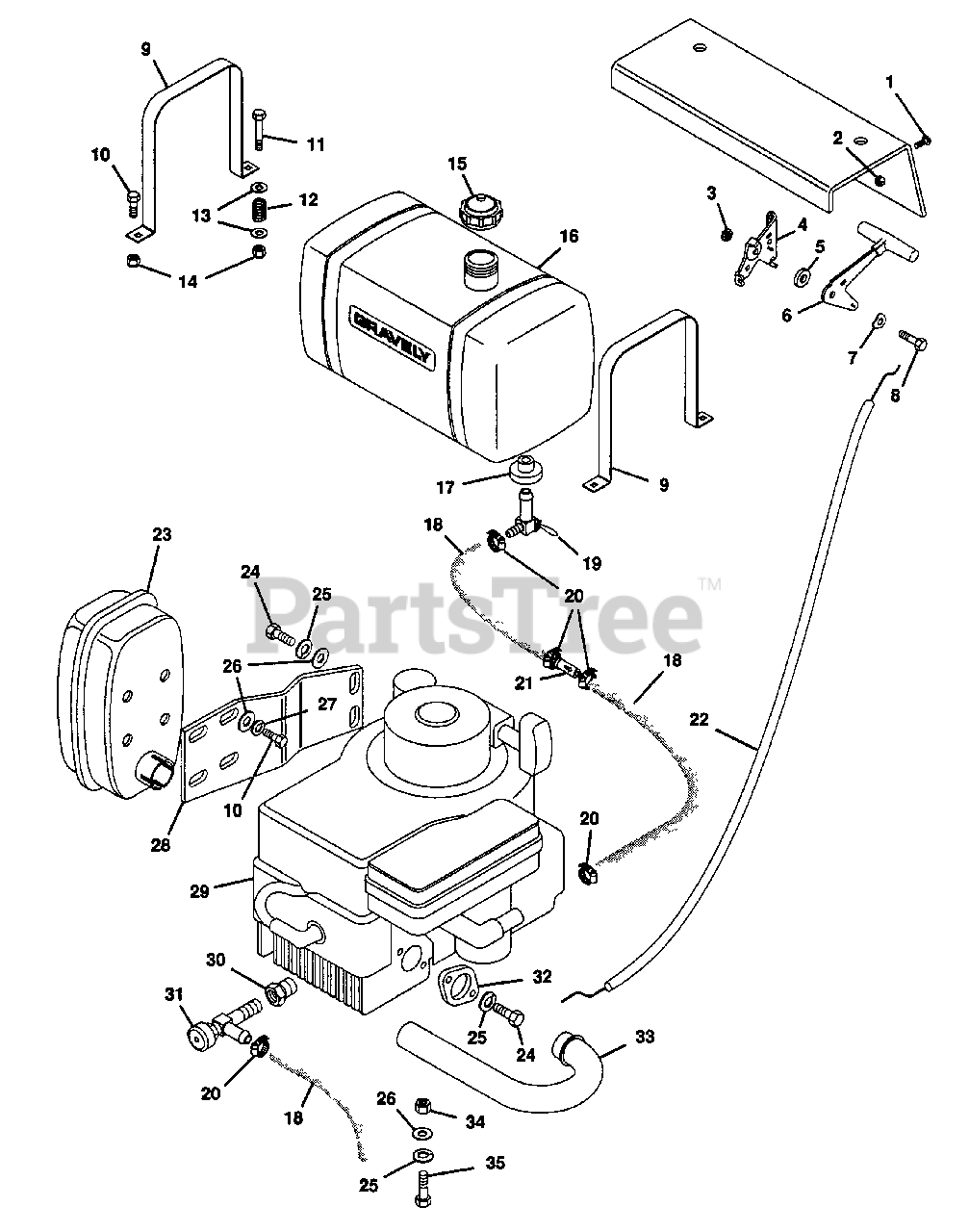

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 160046

SCREW, MACH. 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0

2

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

4

Gravely 011770

BRACKET, MOUNTING L.H.
(Superseded to 03493300)

$

$

Not available

5

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

6

Gravely 011773

ASSEMBLY, KNOB AND LEVER
(Superseded to 06917100)

$

$

Not available

7

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

8

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 049338

STRAP, FUEL TANK
(Superseded to 08835900)

$90.99

$

In Stock, only 1 left!

0

10

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 180042

BOLT, HEX 1/4-20X1.75
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 011779

SPRING, COMP. 1X.78X338 LB/IN
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

13

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 048856

CAP, FUEL TANK
(Superseded to 07533400)

$22.99

$

In Stock, only 1 left!

0

16

Gravely 049283

TANK, FUEL
(Superseded to 08867900)

$164.99

$

Usually ships in 4-12 days

0

17

Gravely 047613

BUSH., FLG. .375X1.06X.625 RB.
(Superseded to 07511400)

$3.49

$

In Stock, Qty 20+

0

18

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 049284

VALVE, BALL SHUT-OFF
(Superseded to 08835100)

$

$

Not available

20

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 050329

ASSEMBLY, THROTTLE CONDUIT
(Superseded to 06929500)

$

$

Not available

23

Gravely 037805

MUFFLER
(Superseded to 21367400)

$

$

Not available

24

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 037732

PLATE, EXHAUST
(Superseded to 08806900)

$

$

Not available

29

Gravely 051872

ENGINE, 12.5 HP B&S

$

$

Not available

30

Gravely 035328

ADAPTOR, OIL DRAIN
(Superseded to 03493100)

$5.99

$

Usually ships in 4-12 days

0

31

Gravely 035329

COCK, OIL DRAIN
(Superseded to 00429000)

$39.99

$

In Stock, only 1 left!

0

32

Gravely 037796

FLANGE, MUFFLER
(Superseded to 08807000)

$

$

Not available

33

Gravely 037731

TUBE, EXHAUST
(Superseded to 08806800)

$

$

Not available

34

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 180085

BOLT HEX 5/16-18X1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0
