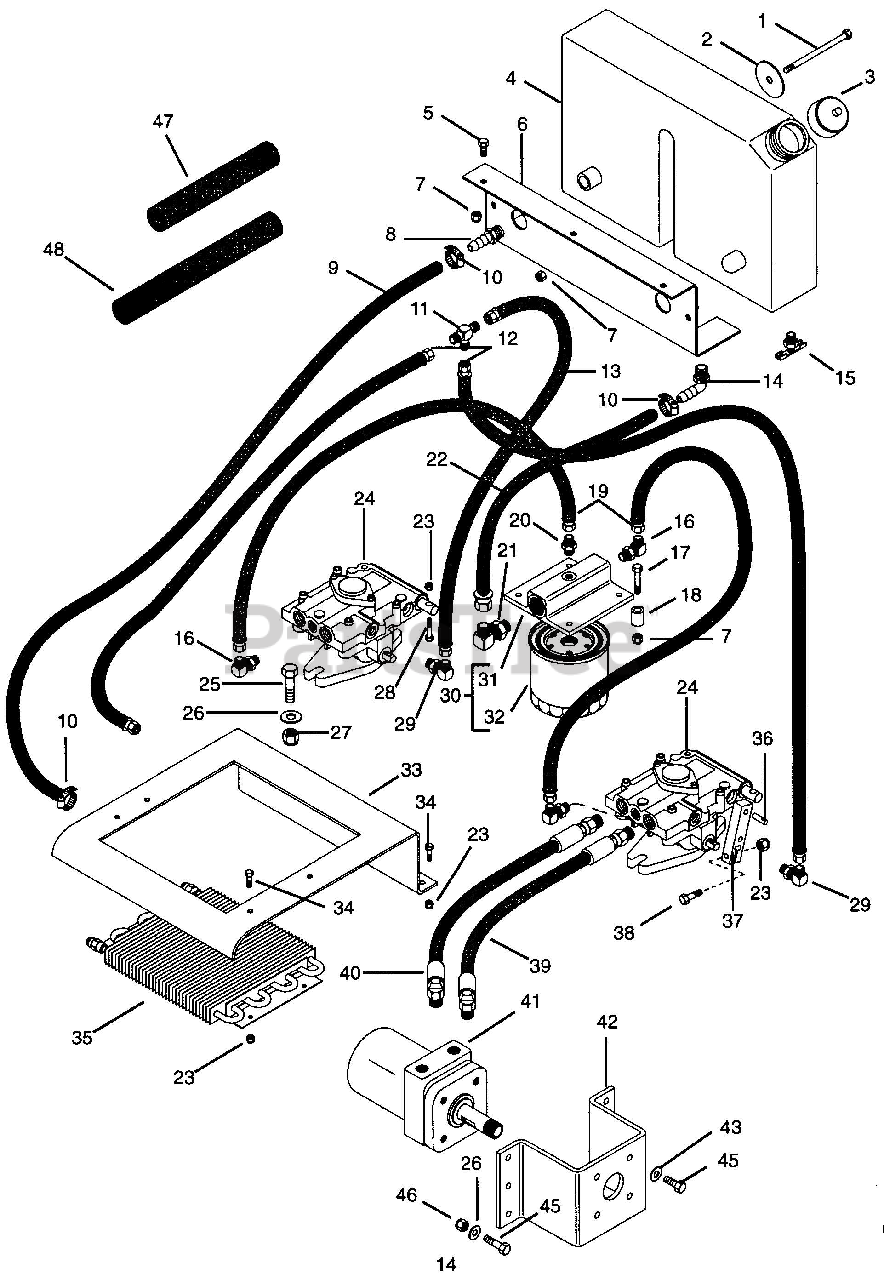

988084 - Gravely Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler (SN: 000101 & Above) Hydraulic System Parts Diagram

Pro 300 Walk-Behind Mower Power Unit, 20hp Kohler

Hydraulic System Parts Diagram

  • Title
1

Gravely 05948000

Bolt-Hex .31-18 x 3.50

$

$

Not available

2

05312200

Washer-Flat .344 x 3.0 x .060

$

$

Not available

3

Gravely 044877

Cap - Tank
(Superseded to 08826200)

Note: Gravely Part Number

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 053021

Tank - Hydraulic
(Superseded to 08868400)

Note: Gravely Part Number

$

$

Not available

5

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 053121

Bracket - Hydraulic Tank Mounting
(Superseded to 08857200)

Note: Gravely Part Number

$

$

Not available

7

Gravely 06529800

Nut-Locking-Center .312-18 Grade 2
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

070324

Adapter - Male

Note: Gravely Part Number

$

$

Not available

9

Gravely 053105

Hose - Oil Cooler To Tank
(Superseded to 08856600)

Note: Gravely Part Number

$

$

Not available

10

Gravely 021247

Clamp .88 Diameter Hose
(Superseded to 06923500)

Note: Gravely Part Number

$1.99

$

In Stock, Qty 6

0

11

Gravely 021799

Adapter-Tee, .56-18
(Superseded to 07021500)

Note: Gravely Part Number

$30.99

$

Usually ships in 4-12 days

0

12

Gravely 039847

Hose - Hydraulic Valve to Tank
(Superseded to 08811300)

Note: Gravely Part Number

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 053103

Hose-Pump to Tee
(Superseded to 08856400)

Note: Gravely Part Number

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 046116

Fitting-Elbow, .50 x .50
(Superseded to 07019800)

Note: Gravely Part Number

$

$

Not available

15

Gravely 053009

Cock-Drain .38 x .69 x 1.25

Note: Gravely Part Number

$

$

Not available

16

Gravely 018826

Adapter 2503-4-4
(Superseded to 08800700)

Note: Gravely Part Number

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 05957200

Bolt-Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 088808

Bushing-Split .328 x .462 x .75
(Superseded to 08880800)

Note: Gravely Part Number

$

$

Not available

19

Gravely 051281

Hose-Oil Filter to Pump
(Superseded to 08845200)

Note: Gravely Part Number

$

$

Not available

20

Gravely 021286

Adapter 0503-4-4
(Superseded to 08801500)

Note: Gravely Part Number

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 050961

Adapter-Pipe .75-16
(Superseded to 07018200)

Note: Gravely Part Number

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 053104

Hose-Tank to Oil Filter
(Superseded to 08856500)

Note: Gravely Part Number

$

$

Not available

23

Gravely 06529700

Nut-Locking-Center .250-20 Grade 2
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 053330

Variable Dispace Pump
(Superseded to 09279900)

Note: Gravely Part Number

$1238.99

$

Usually ships in 4-12 days

0

25

Gravely 05948700

Bolt-Hex .38-16 x 1.125
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: Gravely Part Number

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06529600

Nut-Locking-Center .375-10 Grade 2
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05967100

Bolt-Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

29

Gravely 018828

Adapter 2503-6-6
(Superseded to 00313270)

Note: Gravely Part Number

$9.49

$

Usually ships in 4-12 days

0

30

Gravely 051142

Assembly - Spin-On Lube
(Superseded to 08844700)

Note: Gravely Part Number

$

$

Not available

31

Gravely 051143

Assembly - Head
(Superseded to 08157900)

Note: Gravely Part Number

$

$

Not available

32

Gravely 050968

Element
(Superseded to 08841800)

Note: Gravely Part Number

$39.99

$

Usually ships in 4-12 days

0

33

088977

Bracket - Oil Cooler

Note: Gravely Part Number

$

$

Not available

34

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 053101

Cooler - Oil
(Superseded to 08856200)

Note: Gravely Part Number

$

$

Not available

36

Gravely 051889

Pin-Dowel .312 x 1.25
(Superseded to 05808000)

Note: Gravely Part Number

$5.99

$

Usually ships in 4-12 days

0

37

Gravely 088807

Arm - Pump Actuating
(Superseded to 08880700)

Note: Gravely Part Number

$

$

Not available

38

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

39

Gravely 051232

Assembly - Hose - Wheel Motor to Pump
(Superseded to 58803900)

Note: Gravely Part Number

$

$

Not available

40

Gravely 051231

Assembly - Hose - Wheel Motor to Pump
(Superseded to 58803800)

Note: Gravely Part Number

$149.99

$

Usually ships in 4-12 days

0

41

Gravely 091117

Motor - Hydraulic Wheel
(Superseded to 09111700)

Note: Gravely Part Number

$626.99

$

Usually ships in 4-12 days

0

42

Gravely 051106

Bracket - Wheel Motor
(Superseded to 08842400)

Note: Gravely Part Number

$14.99

$

Usually ships in 4-12 days

0

43

Gravely 06308800

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

45

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

46

Gravely 06529600

Nut-Locking-Nylon .375 x .094
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 052780

Sleeve 12"
(Superseded to 09011400)

Note: (988307) (Gravely Part Number)

$

$

Not available

48

Gravely 050692

Sleeve 12"
(Superseded to 08787200)

Note: (988307) (Gravely Part Number)

$

$

Not available
