988085 - Gravely Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru (SN: 010000 & Above) Electrical System - 18 H.P. Units Parts Diagram

Pro 200 Walk-Behind Mower Power Unit, 18hp Robin Subaru

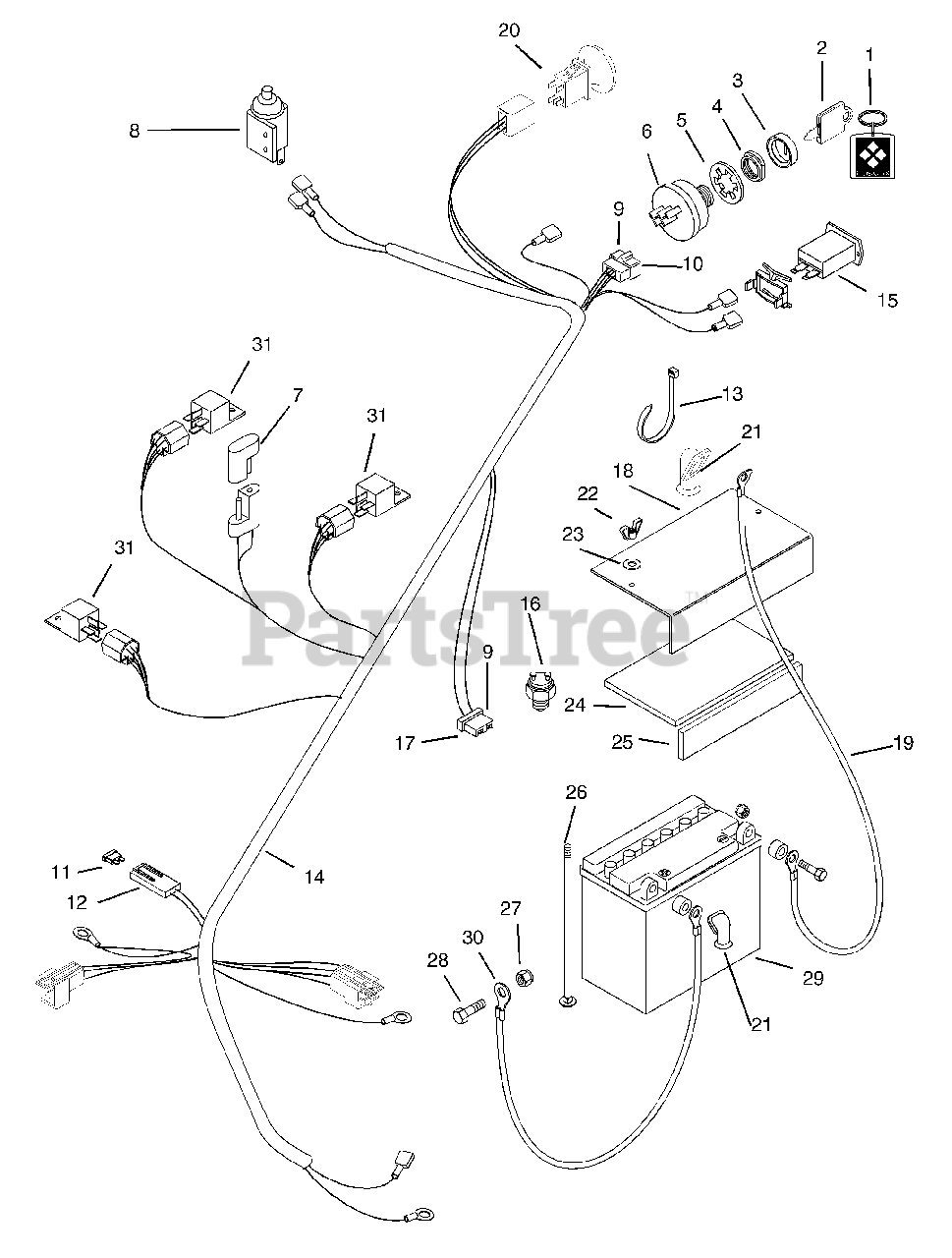

Electrical System - 18 H.P. Units Parts Diagram

  • Title
1

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

2

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

3

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 045497

Nut-Panel .625-32
(Superseded to 06517300)

$7.99

$

In Stock, only 1 left!

0

5

Gravely 06301900

Washer-Lock-Internal .625 x .045
(Superseded to 06306900)

$3.99

$

In Stock, only 1 left!

0

6

Gravely 03602300

Key Switch Assembly

$26.99

$

In Stock, only 1 left!

0

7

Gravely 03081700

Molded diode Plug-Clear 1 AMP

$26.99

$

Usually ships in 4-12 days

0

8

Gravely 09251900

Single Pole N.O. with Cover

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

10

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

11

Gravely 00524600

Fuse-30 AMP

$

$

Not available

12

Gravely 045923

Terminal-For 10-12 Gauge Wire
(Superseded to 20823001)

$

$

Not available

13

Gravely 041634

Tie-Wrap-Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 04906300

Wire Harness-Pro 200 Robin

$

$

Not available

15

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 3 left!

0

16

Gravely 034640

Switch-Neutral Start (N.C.)
(Superseded to 08803700)

Note: (N.C.)

$34.99

$

In Stock, only 1 left!

0

17

Gravely 042076

Connector-2-Wire-Switch

$

$

Not available

18

Gravely 049294

Cover-Battery
(Superseded to 08835800)

$

$

Not available

19

Gravely 049101

Cable Battery
(Superseded to 08987000)

$51.99

$

In Stock, only 1 left!

0

20

Gravely 01545600

Switch-clutch with Retainer

$25.99

$

In Stock, Qty 20+

0

21

Gravely 033847

Boot-Insulator
(Superseded to 03384700)

$

$

Not available

22

Gravely 06537500

Nut-Locking-Wing
(Superseded to 06500805)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 06437300

Washer-flat-steel .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 050417

Pad-Battery
(Superseded to 08803400)

$6.99

$

Usually ships in 4-12 days

0

25

Gravely 050418

Pad-Battery
(Superseded to 08800600)

$

$

Not available

26

Gravely 06220400

Bolt-Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$4.49

$

In Stock, Qty 6

0

27

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 041358

Battery-12 Volt
(Superseded to 78801800)

$

$

Not available

30

Gravely 050383

Cable-Negative Battery
(Superseded to 08840400)

$17.99

$

Usually ships in 4-12 days

0

31

Gravely 03042800

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0
