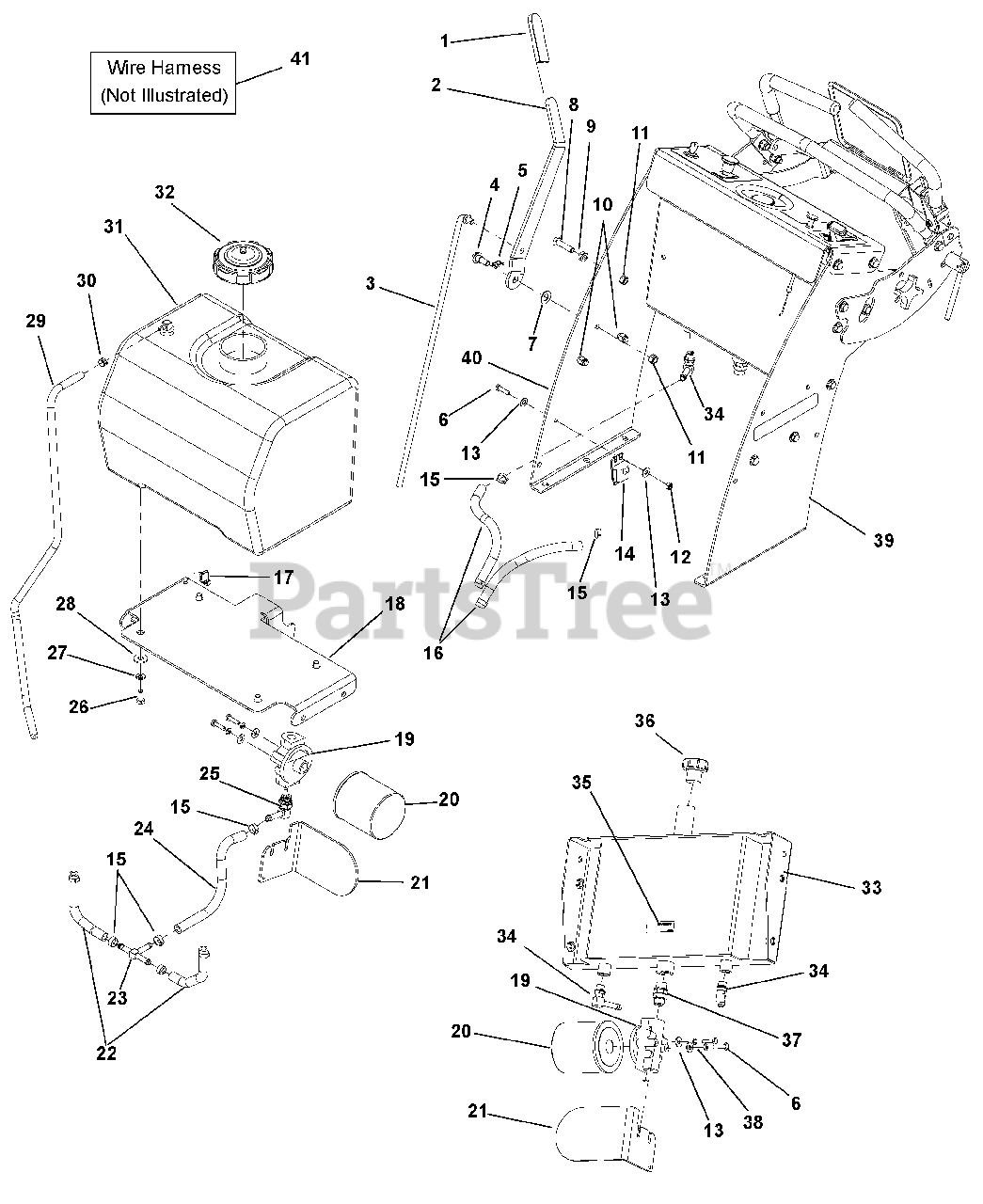

988146 (HR 1536 FL) - Gravely Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki (SN: 000101 - 000400) Fuel Tank, Hydraulic Tank & Parking Brake Parts Diagram

Pro-Hydro 36" Walk-Behind Mower, 15hp Kawasaki

Fuel Tank, Hydraulic Tank & Parking Brake Parts Diagram

  • Title

1

Gravely D18079

GRIP, PVC .250 X 1.00 X 3.63

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 03886251

LEVER, HAND BRAKE FLOAT WALK

$50.99

$

Usually ships in 4-12 days

0

3

Gravely 03858911

ROD, DRIVE CONTROL FW

$54.99

$

Usually ships in 4-12 days

0

4

Gravely 00135139

BOLT, 1/2 X 1.06 X 3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 00967353

RING, RUE .375 x .054 x 1.254

$2.49

$

Usually ships in 4-12 days

0

6

Gravely 00960002

BOLT, 1/4-20 X 1.00 HEX 5 Y
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

7

Gravely 00967398

WASHER, .510 X 1.00 X .068 NYLON

$

$

Not available

8

Gravely 00960048

BOLT, 3/8-16 X 1.50 HEX 5 Y
(Superseded to 05957900)

$1.49

$

In Stock, Qty 5

0

9

Gravely 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 15

0

10

Gravely 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

11

Gravely 00964062

LOCKNUT, 3/8-16 CENTER Y
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00964048

LOCKNUT, 1/4-20 NYLOC Y

$

$

Not available

13

Gravely 00960700

WASHER, .250 REG FLAT Y

$

$

Not available

14

Gravely 00200410

MODULE, ELECTRONIC
(Superseded to 08885700)

$87.99

$

Usually ships in 4-12 days

0

15

Gravely D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 03832602

HOSE, HYD .375 X 10

$

$

Not available

17

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

18

Gravely 03853751

BRACKET, FUEL TANK RMHF

$

$

Not available

19

Gravely 00200463

HEAD, OIL FILTER

$34.99

$

Usually ships in 4-12 days

0

20

Gravely GDA10137

FILTER, OIL

$28.99

$

In Stock, only 3 left!

0

21

Gravely 03911551

GUARD, HYDRO FILTER FLWLK

$39.99

$

Usually ships in 4-12 days

0

22

Gravely 00200455

HOSE, HYD 3/8 X 6.00

$

$

Not available

23

Gravely M86863

FTG, TUN 3/8 HOSE

$

$

Not available

24

Gravely 03832603

HOSE, HYD. .375 X 9

$

$

Not available

25

Gravely 00200464

FTG, 90 BRB-OR 4601-06-08

$17.99

$

Usually ships in 4-12 days

0

26

Gravely 00960045

BOLT, 3/8-16 X .750 HEX 5 Y
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

27

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

28

Gravely 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, only 2 left!

0

29

Gravely 00192126

HOSE, FUEL 1/4 X 30.00

$

$

Not available

30

Gravely 00130924

CLAMP, HOSE - 1/2" SPRING
(Superseded to 03278800)

$1.49

$

In Stock, Qty 7

0

31

Gravely 04914000

TANK, FUEL GRAVELY WALK REV G

$

$

Not available

32

Gravely 00181251

CAP, FUEL

$23.99

$

In Stock, only 4 left!

0

33

Gravely D35031

WLDT, TANK

$103.99

$

In Stock, only 1 left!

0

34

Gravely D24028

FTG, 90 9/16 MOR X 3/8 HOSE

$9.99

$

Usually ships in 4-12 days

0

35

Gravely M117554

DECAL, WARNING - HOT SURFACES

$

$

Not available

36

Gravely D18333

CAP, OIL FILL BREATHER

$24.99

$

Usually ships in 4-12 days

0

37

Gravely 07001606

STRAIGHT UNION SAE 8

$14.99

$

Usually ships in 4-12 days

0

38

Gravely 00960600

WASHER, .250 MED SPRG LOCK Y

$

$

Not available

39

Gravely 03889651

WLDT, LH UPRIGHT FLOAT WALK

$

$

Not available

40

Gravely 03889751

WLDT, RH UPRIGHT FLOAT WALK

$

$

Not available

41

Gravely 03765100

HARNESS, WIRE NON ELEC ST WALK

$

$

Not available

Gravely 03606600

Switch - Double Pole N.O./N.O. (NOT SHOWN)

Note: (NOT SHOWN)

$15.99

$

In Stock, only 3 left!

0

Gravely 00967340

Screw, 10-24X.625 Pan PHL (NOT SHOWN)

Note: (NOT SHOWN)

$2.49

$

Usually ships in 4-12 days

0
