988184 - Gravely Pro-Walk 36" Walk-Behind Mower, Kawasaki FS (SN: 000600 & Above) Transaxle Drive - 36" Parts Diagram

Pro-Walk 36" Walk-Behind Mower, Kawasaki FS

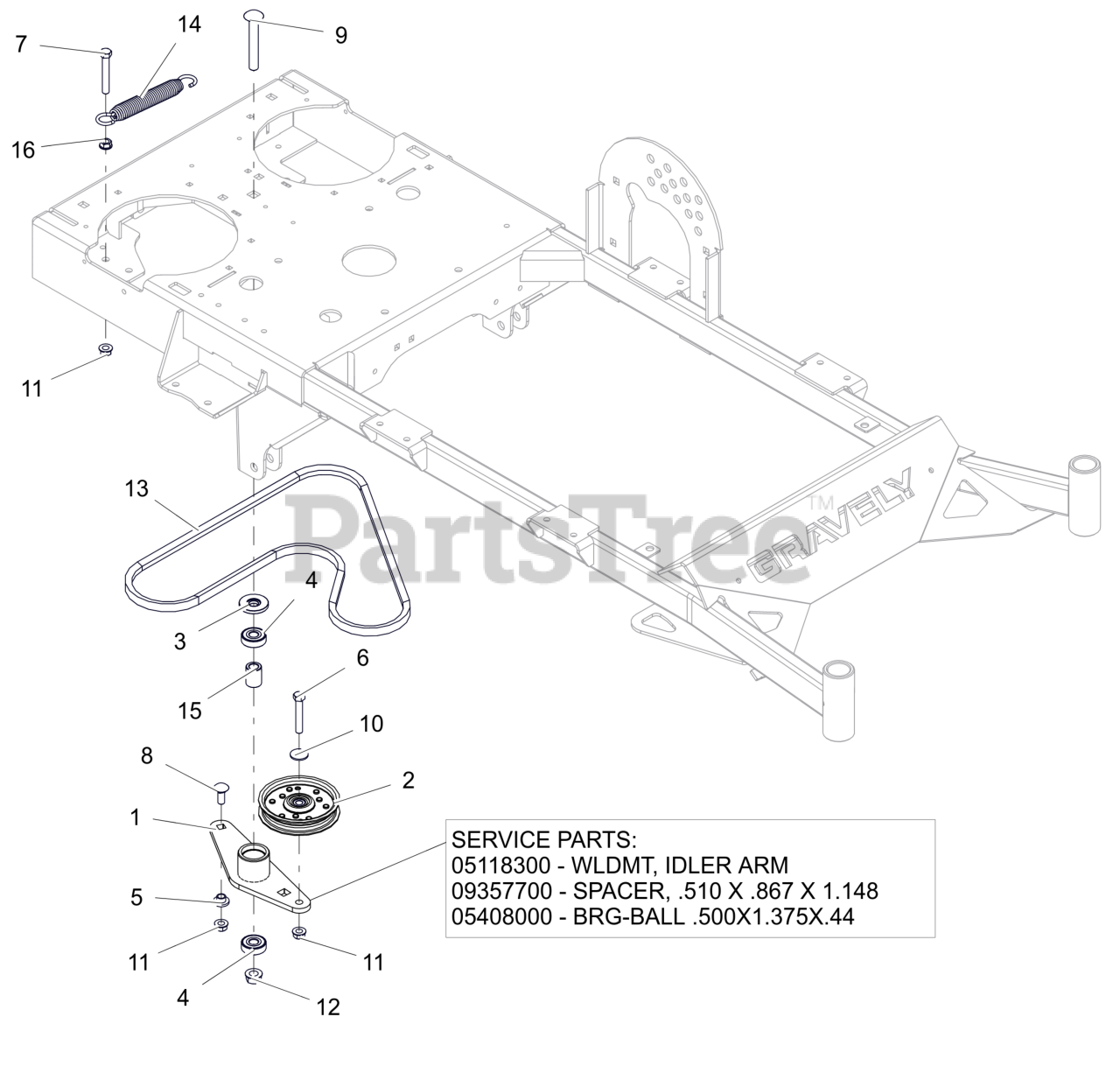

Transaxle Drive - 36" Parts Diagram

  • Title

1

Gravely 58813600

ASM, IDLER ARM SERVICE

$

$

Currently unavailable

1

Gravely 05118300

WLDMT, IDLER ARM

Note: Component Service Part

$

$

Currently unavailable

1

Gravely 09357700

SPACER .510 X .867 X 1.1485

Note: Component Service Part

$3.99

$

Usually ships in 4-12 days

0

1

Gravely 05408000

BRG-BALL .500X1.38X.437

Note: Component Service Part

$5.99

$

In Stock, Qty 17

0

2

Gravely 07300101

ASM, 4" IDLER (.75 WIDE)

$62.99

$

In Stock, only 3 left!

0

3

Gravely 04714600

SPACER, IDLER ARM

$4.99

$

In Stock, Qty 19

0

4

Gravely 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 17

0

5

Gravely 05500435

BSHG-FLG .385X.500X.875X.406

$2.49

$

In Stock, only 2 left!

0

6

Gravely 05901640

BLT,HEX .38-16X2.25 G5 ZCC

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05901812

BLT, HEX .38-16X2.50 G5 ZCC

$3.99

$

In Stock, Qty 12

0

8

Gravely 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 18

0

9

Gravely 06200340

BLT, RHSSN .50-13X3.50 G5 ZCC

$5.99

$

In Stock, Qty 7

0

10

Gravely 06401008

WSHR,FLT .438X1.00X.083 ZCC

$1.49

$

In Stock, Qty 6

0

11

Gravely 06500901

NUT-LK-CTR-FLG .375-16 GF ZCC

$1.49

$

In Stock, Qty 16

0

12

Gravely 06500902

NUT-LK-CTR-FLG .500-13 GG ZCC

$2.99

$

In Stock, only 2 left!

0

13

Gravely 07200610

V-BELT, HA WRAPPED

$45.99

$

In Stock, only 1 left!

0

14

Gravely 08300728

SPRING- EXTENSION

$26.99

$

In Stock, Qty 20+

0

15

Gravely 09357700

SPACER .510 X .867 X 1.1485

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 06500735

NUT, SPNLK-FLG .38-16 G5 ZCC

$1.49

$

In Stock, Qty 12

0
