9886-0 - Generac XL 8,000 Watt Portable Generator, Rev 0 (1995-12) Generator Cradle Parts Diagram

XL 8,000 Watt Portable Generator, Rev 0

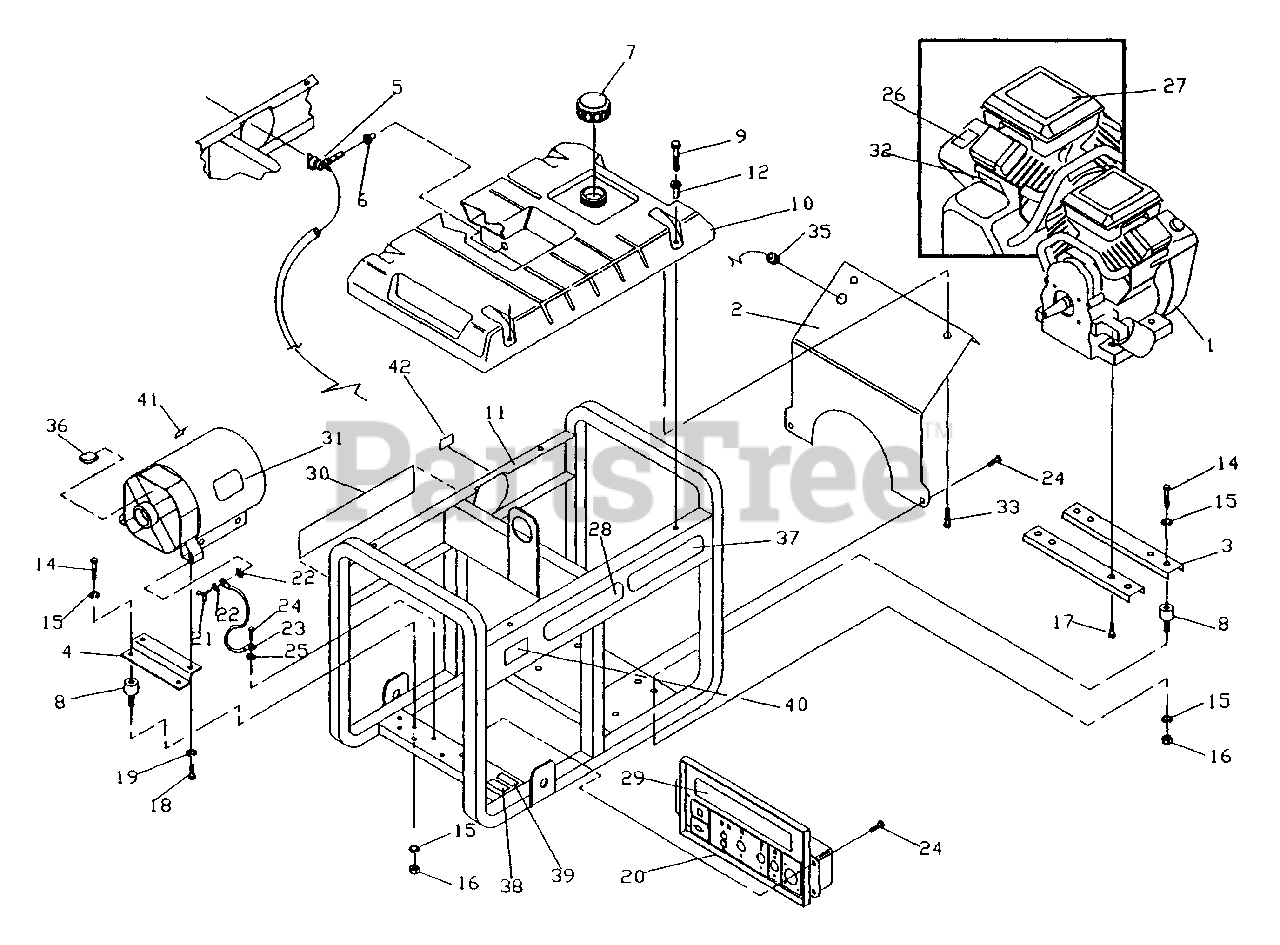

Generator Cradle Parts Diagram

  • Title

1

Briggs & Stratton 85109

V-Twin Engine

$

$

Currently unavailable

2

Briggs & Stratton 92352

Heat Shield

$

$

Not available

3

Briggs & Stratton 77304

Engine Support

$

$

Not available

4

Briggs & Stratton 78512

Alternator Support
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 78298

Fuel Shut-Off Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 78299

Fuel Valve Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 84582

Fuel Tank Cap

$

$

Currently unavailable

8

Briggs & Stratton 35097

Vibration Mounts
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 78831B

M6-1.0 x 60mm Hex Head Capscrew
(Superseded to 78831BGS)

$

$

Not available

10

Briggs & Stratton 93615

Fuel Tank
(Superseded to 93615GS)

$

$

Not available

11

Briggs & Stratton 92558

Cradle
(Superseded to 92558GS)

$799.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83465

Fuel Tank Mtg. Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 23152

3/8"-16 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

16

Briggs & Stratton 22241

3/8"-16 Hex Nut

$

$

Not available

17

Briggs & Stratton 75246

3/8"-16 x 1-1/4" Capscrew
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 39253

M8-1.25 x 16mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 96217

Control Panel Assembly

$

$

Currently unavailable

21

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 26850

M6 Shakeproof Washer

$

$

Not available

23

14353621

1 Ground Wire

$

$

Not available

24

Briggs & Stratton 86292

No. 10 Self-driller Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

No. 10 Shakeproof Washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79661G

Engine Decal

$

$

Currently unavailable

27

Briggs & Stratton 77581

V-Twin Airbox Decal
(Superseded to 77581GS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92613

Unit Decal

$

$

Not available

29

Briggs & Stratton 92512

Control Panel Decal
(Superseded to 92512GS)

$17.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 94479

Danger Decal
(Superseded to 194984GS)

$17.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 78837

Data Plate Decal

$

$

Currently unavailable

32

Briggs & Stratton 77816

Caution! Hot Muffler Decal
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 70542

M6-1.0 x 16mm Capscrew

$

$

Currently unavailable

35

Briggs & Stratton 38057

Rubber Grommet
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

Power Module
(Superseded to 84132GS)

$126.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 94480

Start Instruction Decal
(Superseded to 690341)

$5.99

$

In Stock, only 2 left!

0

38

Briggs & Stratton 74728

Grounded Neutral Decal (English)
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 76247

Grounded Neutral Decal (French)
(Superseded to 76247GS)

$9.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 25717

Nameplate - CSA

$

$

Currently unavailable

41

Briggs & Stratton 81886

STA-BIL Decal
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 73054

Fuel Shut-Off Decal

$

$

Not available
