989009 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler (SN: 000101 & Above) NUMBER ONE SHAFT - FORWARD CLUTCH Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 20hp Kohler

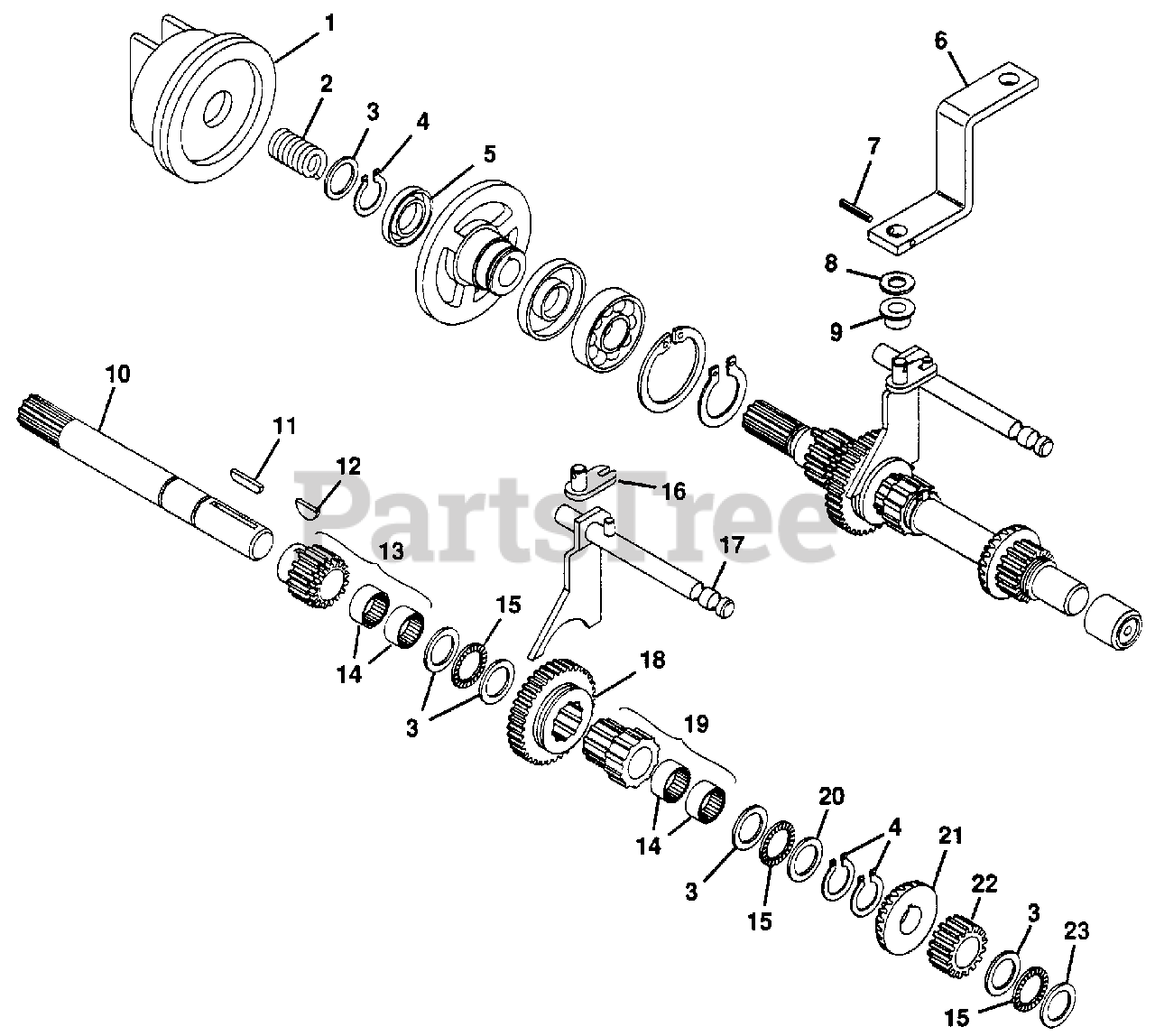

NUMBER ONE SHAFT - FORWARD CLUTCH Parts Diagram

  • Title

1

Number 11 - Fwd-Rev Clutch Asm.

$

$

Not available

2

Gravely 020444

Spring, Comp. 1.0x.80x36 lb/in
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

3

Gravely 011223

Race, Brg Thrust .752x1.240x.030
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

4

Gravely 011135

Ring, Retaining .750 Shaft
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

5

Gravely 018035

Seal, Oil
(Superseded to 05614600)

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 040235

Arm, Shifter
(Superseded to 08934400)

$

$

Not available

7

Gravely 421202

Pin, Spring .188x1.00
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 021141

Washer, Felt
(Superseded to 05615600)

$3.99

$

In Stock, Qty 8

0

9

Gravely 017925

Bushing, 2-Speed
(Superseded to 05519900)

$11.99

$

Usually ships in 4-12 days

0

10

Gravely 046371

Shaft, Fwd Clutch
(Superseded to 08778900)

$452.99

$

Usually ships in 4-12 days

0

11

Gravely 117989

Key, Woodruff .188x1.25 Hrd #19
(Superseded to 06608100)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 431787

Key, Woodruff .188x.625 Hrd #61
(Superseded to 06609300)

$2.99

$

In Stock, only 2 left!

0

13

Gravely 046330

Gear and Bearing Assembly
(Superseded to 21279600)

$

$

Not available

14

Gravely 017949

Bearing, Needle .75x1x.50
(Superseded to 05420400)

$20.99

$

Usually ships in 4-12 days

0

15

Gravely 006741

Bearing, Thrust .752x1.240x.078
(Superseded to 05410400)

$12.99

$

In Stock, Qty 7

0

16

Gravely 040234

Weldment, Shifter
(Superseded to 08934300)

$

$

Not available

17

Gravely 020755

Weldment, Shift Rail
(Superseded to 08720800)

$

$

Not available

17

Gravely 043944

Weldment, Shift Rail
(Superseded to 08948000)

$

$

Not available

18

Gravely 018011

Gear, Spur 2 Speed 10DP 36T
(Superseded to 08705400)

$

$

Not available

18

Gravely 043929

Gear, Spur 2 Speed 10DP 26T
(Superseded to 08947500)

$

$

Not available

19

Gravely 018007

Gear and Bearing Assembly
(Superseded to 08705200)

$

$

Not available

20

Gravely 006742

Race, .060 Bearing Thrust
(Superseded to 06431900)

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 045585

Gear, Bevel
(Superseded to 08790100)

$

$

Not available

22

Gravely 018003

Gear, 10 DP 16 Teeth x .750 Std.
(Superseded to 08705100)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 014998

Race, Thrust .752x1.240x.095
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0
