989053 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 30hp Kubota (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 30hp Kubota

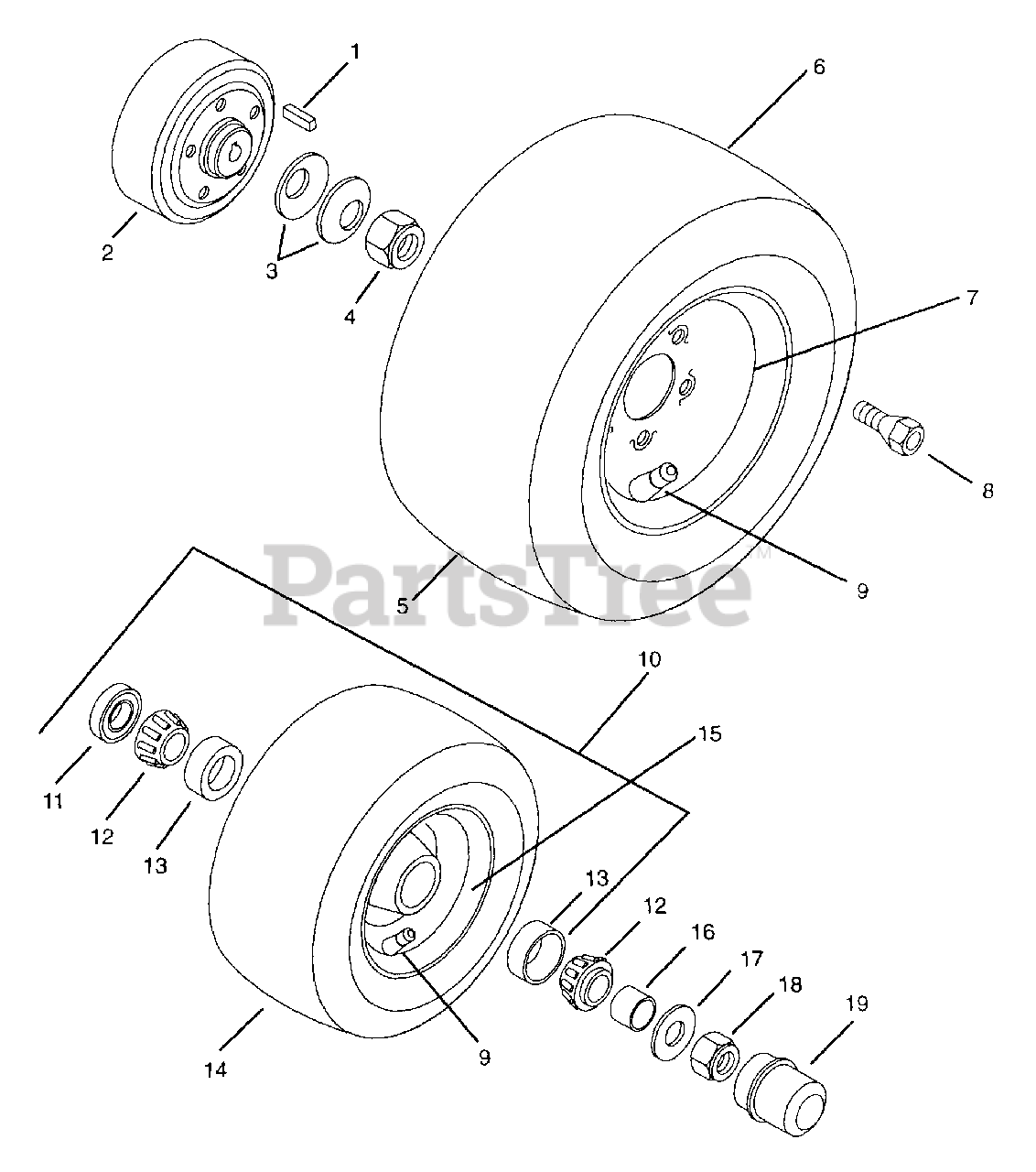

WHEELS Parts Diagram

  • Title
1

Gravely 044386

Key-Square .312 x 2.25
(Superseded to 06607200)

$5.99

$

Usually ships in 4-12 days

0

2

Gravely 050386

Hub, Wheel
(Superseded to 08968200)

$

$

Not available

3

Gravely 051726

Spring-Bellville .097 x .145 x 2.00
(Superseded to 08346300)

$

$

Not available

4

Gravely 013619

Nut-Locking 1.00-14
(Superseded to 00181818)

$

$

Not available

5

Gravely 052995

Tire/Wheel Assembly 23 x 10.50-12
(Superseded to 07150100)

$202.99

$

Usually ships in 4-12 days

0

6

Gravely 048921

Tire, Rear 23 x 10.50-12
(Superseded to 20928100)

$

$

Not available

7

Gravely 048922

Weldment, Rim
(Superseded to 20928200)

$142.99

$

Usually ships in 4-12 days

0

8

Gravely 012744

Bolt .44-20 x 1.0
(Superseded to 07051400)

$10.99

$

In Stock, only 3 left!

0

9

Gravely 011191

Valve Stem Assembly
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

10

Gravely 031425

Tire, Front Assembly
(Superseded to 21212500)

$284.99

$

Usually ships in 4-12 days

0

11

Gravely 018447

Seal 1.206 x 1.785 x .468
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

12

Gravely 018446

Bearing-Cone .750 x .61
(Superseded to 05404500)

$23.99

$

In Stock, Qty 11

0

13

Gravely 018445

Bearing-Cup 1.78 x .475
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

14

Gravely 048924

Tire, Front 16 x 7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

14

Gravely 07136000

Tire 15 x 6-6

$

$

Not available

15

Gravely 048925

Tire/Wheel Assembly 16 x 7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

16

Gravely 018448

Spacer .752 x 1.000 x .500
(Superseded to 03495900)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 06506900

Nut-Locking-Center .625-11
(Superseded to 06535300)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 018449

Dust Cap
(Superseded to 03496000)

$14.99

$

In Stock, only 3 left!

0
