990018 (PM 310) - Gravely Pro-Master Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000999) Transmission, Direction Control And Idler Parts Diagram

Pro-Master Zero-Turn Mower, 25hp Kohler

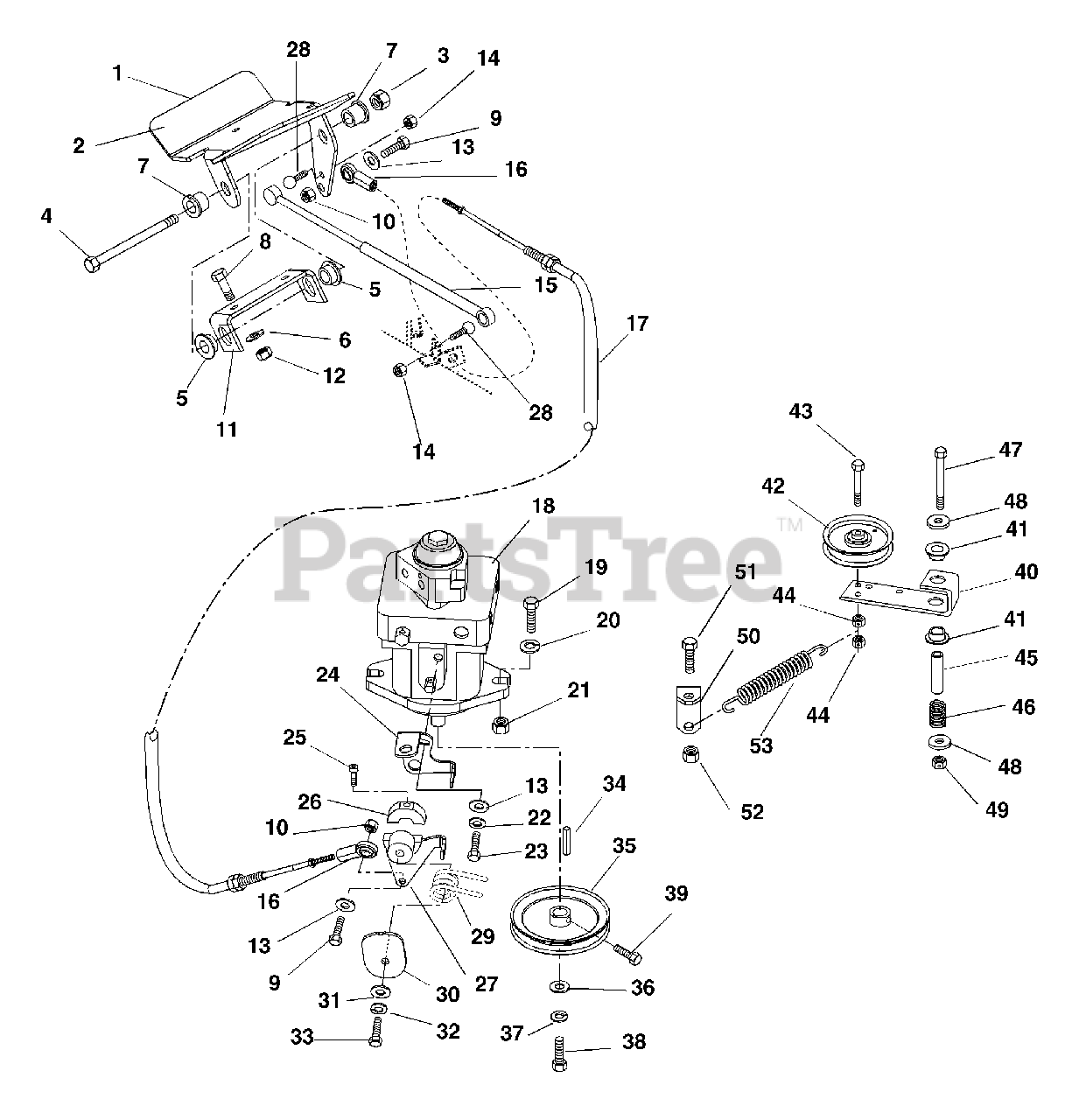

Transmission, Direction Control And Idler Parts Diagram

  • Title
1

Gravely 04909653

Pedal, Direction Control

$

$

Not available

2

Gravely 046043

Pad, Foot Clutch Pedal
(Superseded to 08749700)

$14.99

$

Usually ships in 4-12 days

0

3

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 05964400

Bolt-Hex .50-13 x 6.50 Grade 5
(Superseded to 05901907)

$7.99

$

In Stock, Qty 7

0

5

Gravely 010174

Bushing, Flange-Nylon .762 x 1.00 x .58 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06442000

Washer-Flat-Steel .56 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 034738

Bushing, Flange-Nylon .515 x .75 x .745 x 1.00
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 05947700

Bolt-Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

10

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 04909553

Bracket, Control Pedal

$

$

Not available

12

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 06437300

Washer-Flat-Steel .28 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09232400

Dampener Control
(Superseded to 09258900)

$75.99

$

In Stock, Qty 10

0

16

Gravely 045808

Rod End, Female .25-28
(Superseded to 08971800)

$19.99

$

Usually ships in 4-12 days

0

17

Gravely 06947100

Cable, Forward-Reverse Control

$180.99

$

Usually ships in 4-12 days

0

18

Gravely 09099500

Pump
(Superseded to 59003500)

$1538.99

$

Usually ships in 4-12 days

0

19

Gravely 05962000

Bolt-Hex .50-13 x 1.50 Grade 5
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

20

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

22

Gravely 06306800

Washer-Locking-External 262 x .502 x .026
(Superseded to 06300118)

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 04910400

Arm, Neutral Return

$

$

Not available

25

Gravely 05977000

Screw-Socket Head M6 x 1.00 x 35mm

$

$

Not available

26

Gravely 04910600

Hub, Pump Neutral

$

$

Not available

27

Gravely 04910500

Weldment, Pump Neutral

$

$

Not available

28

Gravely 03652200

Stud, Ball

$3.49

$

In Stock, only 3 left!

0

29

Gravely 08336800

Spring-Torsion .156 x 1.275 x .77

$

$

Not available

30

Gravely 04910300

Weldment, Pump Neutral

$

$

Not available

31

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 05947300

Bolt-Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 050995

Key-Straight 5mm x 25mm x 5mm
(Superseded to 06607500)

$3.99

$

In Stock, only 2 left!

0

35

Gravely 07326600

Sheave, Pump

$72.99

$

Usually ships in 4-12 days

0

36

Gravely 06442200

Washer, Flat-Steel .281 x 1.00 x .048
(Superseded to 06426600)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

38

Gravely 05969800

Bolt-Hex M6 x 1.0 x 12

$1.99

$

In Stock, Qty 14

0

39

Gravely 05947900

Bolt-Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 034120

Arm, Idler Pivot
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

41

Gravely 010174

Bushing-Flange Nylon .762 x 1.00 x .58 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

42

Gravely 07325200

Idler-V 4.00 x .38
(Superseded to 07327600)

$38.99

$

In Stock, Qty 20+

0

43

Gravely 05962900

Bolt-Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

44

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 034119

Spacer, Steel .56 x .75 x 2.44
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

46

Gravely 020444

Spring-Compression .09 x .80 x 1.00
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

47

Gravely 05965800

Bolt-Hex .50-13 x 3.50 Grade 5
(Superseded to 05901937)

$4.99

$

In Stock, only 1 left!

0

48

Gravely 415543

Washer Flat Steel .53 x 1.25 x .100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

49

Gravely 06540600

Nut-Locking-Nylon .50-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

50

Gravely 09231151

Anchor, Spring Idler
(Superseded to 09231100)

$23.99

$

Usually ships in 4-12 days

0

51

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

53

Gravely 08336000

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0
