990191 - Simplicity 32" Heavy Duty Tiller Attachment Tiller Drive Group (3597I03) Parts Diagram

32" Heavy Duty Tiller Attachment

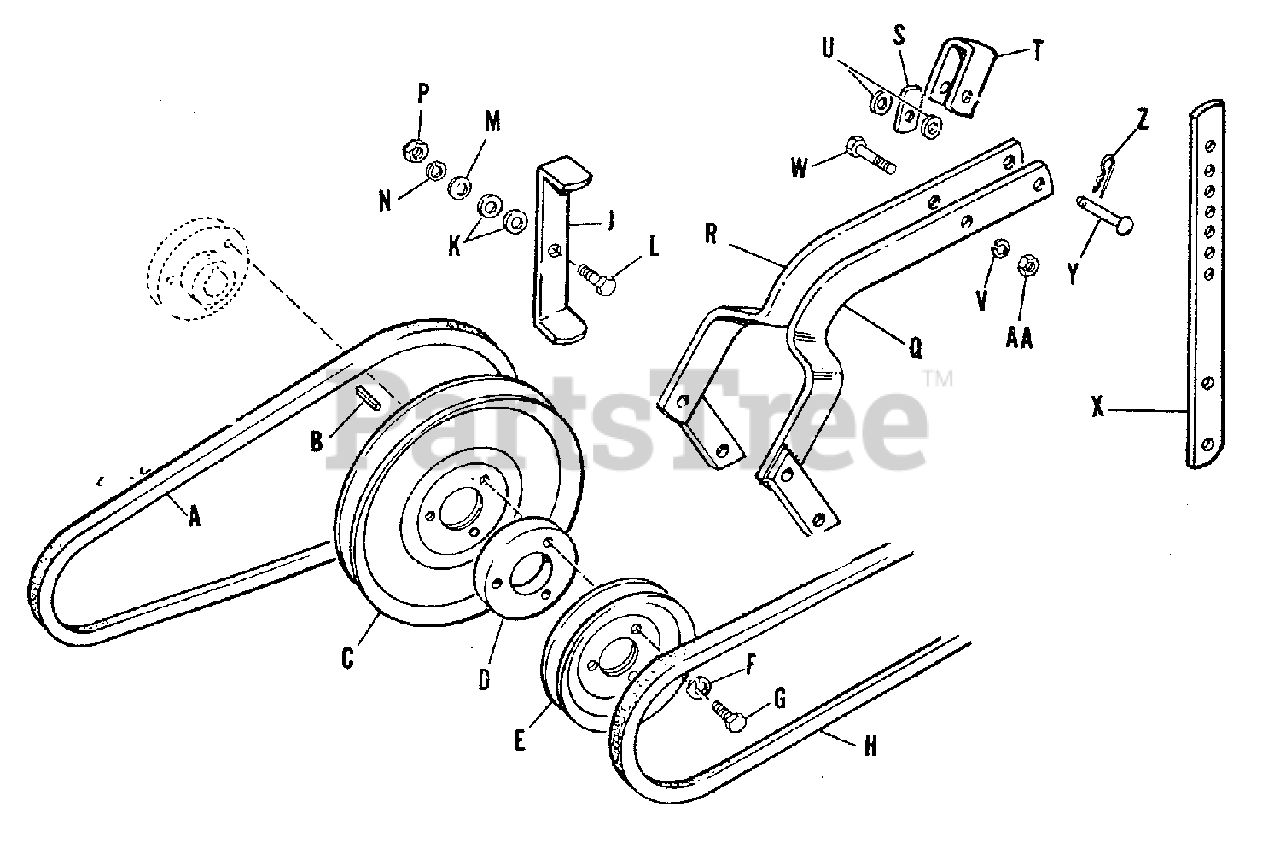

Tiller Drive Group (3597I03) Parts Diagram

  • Title

A

Simplicity 105217

BELT, "V"

$

$

Not available

B

Simplicity 2805850SM

KEY

$2.49

$

Usually ships in 2-12 days

0

C

Simplicity 105171

PULLEY, 10"

$

$

Not available

D

Simplicity 105199

RING

$

$

Not available

E

Simplicity 105172

PULLEY, 5-1/2"

$

$

Not available

F

Simplicity 2720001

LOCKWASHER, 5/16"

$

$

Not available

G

Simplicity 2705020

CAPSCREW, Hex Head, 5/16-18 NC x 2" Lg.

$

$

Not available

H

Simplicity 2105122SM

BELT, "V"

$47.99

$

Usually ships in 2-12 days

0

J

Simplicity 105208

GUARD, Belt

$

$

Not available

K

Simplicity 1924356SM

WASHER
(Superseded to 703591)

$5.49

$

In Stock, Qty 9

0

L

Simplicity 2705016

CAPSCREW, Hex Head, 3/8"-16 NC x 1-1/4" Lg.

$

$

Not available

M

Simplicity 2719001

WASHER, Plain, 3/8"

$

$

Not available

N

Simplicity 2720002

LOCKWASHER, 3/8"

$

$

Not available

P

Simplicity 2717003

NUT, Hex, Full, 3/8"-16 NC

$

$

Not available

Q

Simplicity 105219

BEAM ASSEMBLY, L.H., Depth Gauge

$

$

Not available

R

Simplicity 105218

BEAM ASSEMBLY, R.H., Depth Gauge

$

$

Not available

S

Simplicity 105200

LUG, Stop

$

$

Not available

T

Simplicity 105211

GUIDE

$

$

Not available

U

Simplicity 2719003

WASHER, Plain, 7/16"

$

$

Not available

V

Simplicity 2720006

LOCKWASHER, 7/16"

$

$

Not available

W

Simplicity 705052

CAPSCREW, Hex Head, 7/16"-14 NC x 2-1/4" Lg.

$10.99

$

In Stock, only 1 left!

0

X

Simplicity 105092

BAR, Depth

$

$

Not available

Y

Simplicity 2155037SM

PIN, Round Head

$12.99

$

In Stock, only 1 left!

0

Z

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

AA

Simplicity 711022

NUT, Hex, Full, 7/16"-14 NC

$

$

Not available
